YH4
GRAND
VITARA
BODY SERVICE 9-59

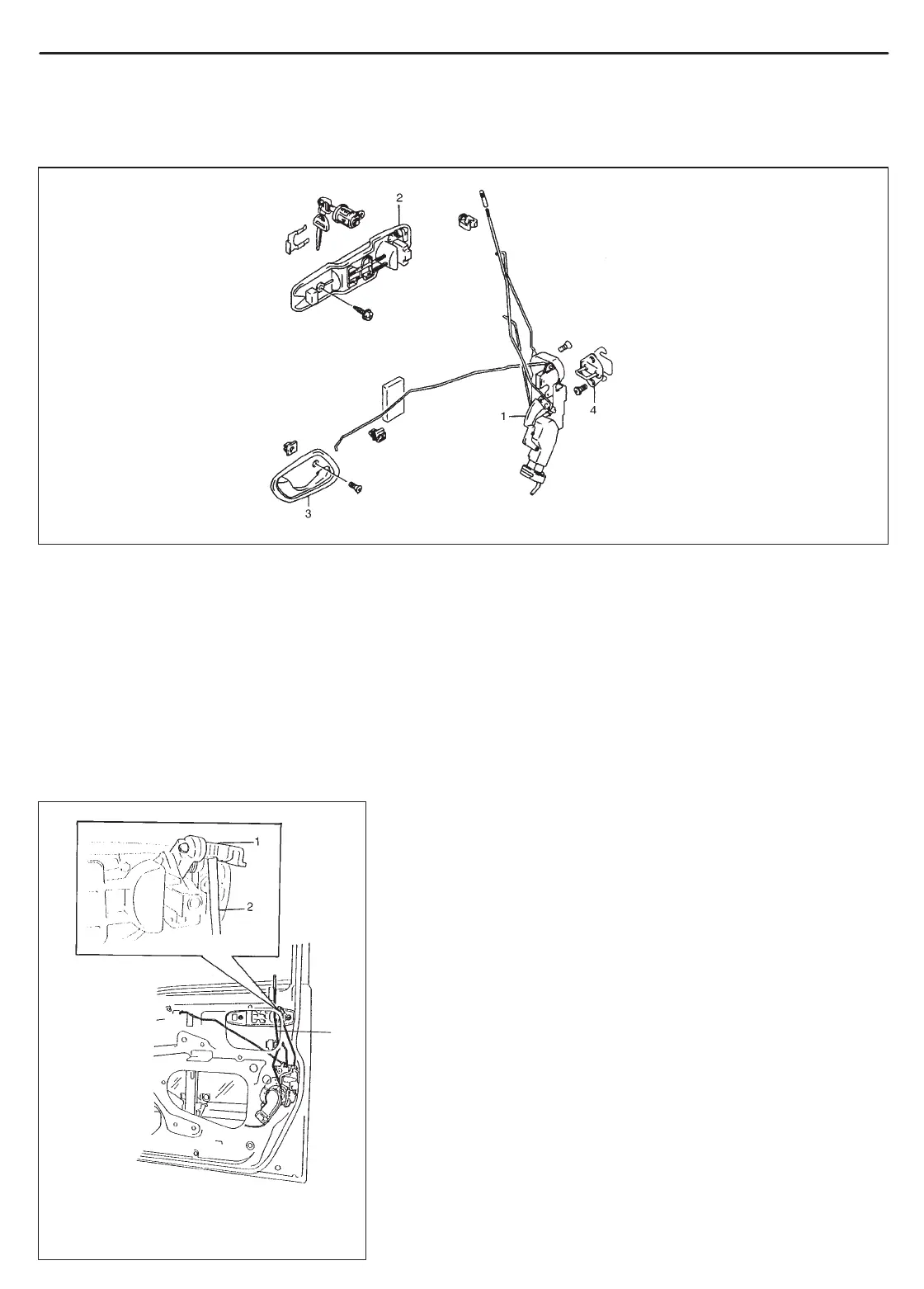

1. Door latch
2. Outside handle
3. Inside handle bezel
4. Latch striker
1. Door opening control rod pin retainer
2. Door opening control rod
3. Door lock control rod
3
SECURITY AND LOCKS
FRONT DOOR LOCK ASSEMBLY
REMOVAL
1) Raise window all the way up.
2) Remove door trim and door sealing cover, refer to steps 1) to 6)
of FRONT DOOR GLASS REMOVAL in this section.
3) Remove door opening control rods.
Unlock door lock rod pin retainer and disconnect control rod.
4) Remove door lock control rod.
5) Disconnect door lock motor lead wire (if equipped).
6) Remove lock assembly.
