YH4
GRAND
VITARA

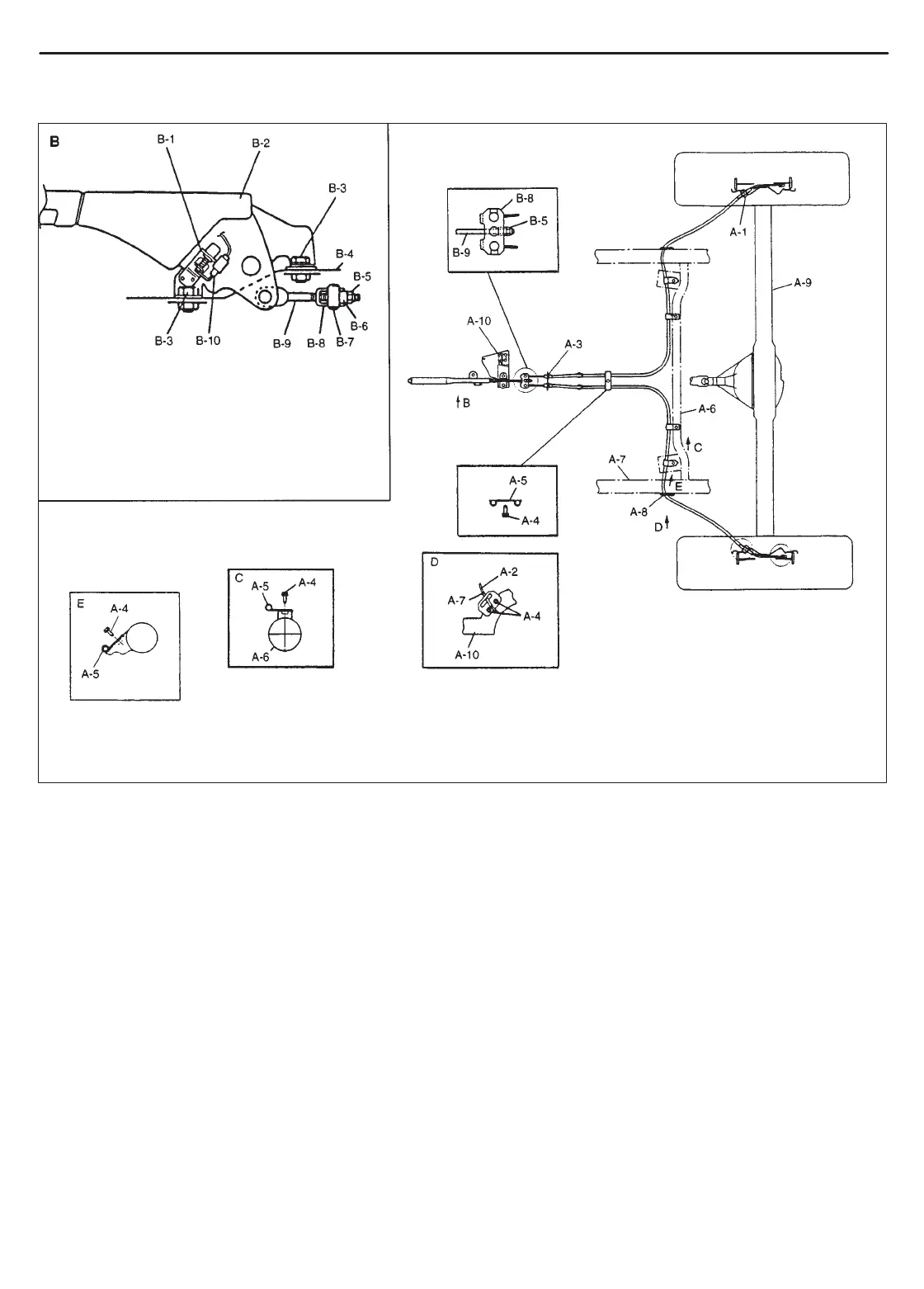

A-1. Color ring
A-2. Cable
A-3. Grommet
A-4. Bolt
A-5. Clamp (if equipped)
A-6. Cross-member
A-7. Chassis frame
A-8. Hanger
A-9. Rear axle
A-10. G-sensor (if equipped)
B-1. Parking brake switch
B-2. Parking brake lever
B-3. Parking brake lever bolt
B-4. Floor
B-5. Locking nut
B-6. Spacer
B-7. Pin
B-8. Equalizer
B-9. Adjust rod
B-10. Coupler
PARKING AND REAR BRAKE 5C-5
PARKING BRAKE CABLE
REMOVAL
1) Remove brake drum. (Refer to steps 1) to 5) of BRAKE DRUM
REMOVAL of this section.)
2) Check the color of ring or tape for reinstallation.
NOTE:
Color ring on brake cable is for the purpose of identifica-
tion.
3) Disconnect parking brake cable from brake shoe lever. (Refer to
steps 2) to 5) of BRAKE SHOE REMOVAL of this section.)
4) Disconnect brake cable from brake back plate. (Refer to step 4)
of BRAKE BACK PLATE REMOVAL.)
NOTE:
When it is necessary to remove both right and left parking
brake cables, repeat above steps 1) to 3) on right and left
wheels.
5) Remove cable from parking brake lever. (Refer to steps 1) to 5)
of PARKING BRAKE LEVER REMOVAL of this section.)
To Next Page
