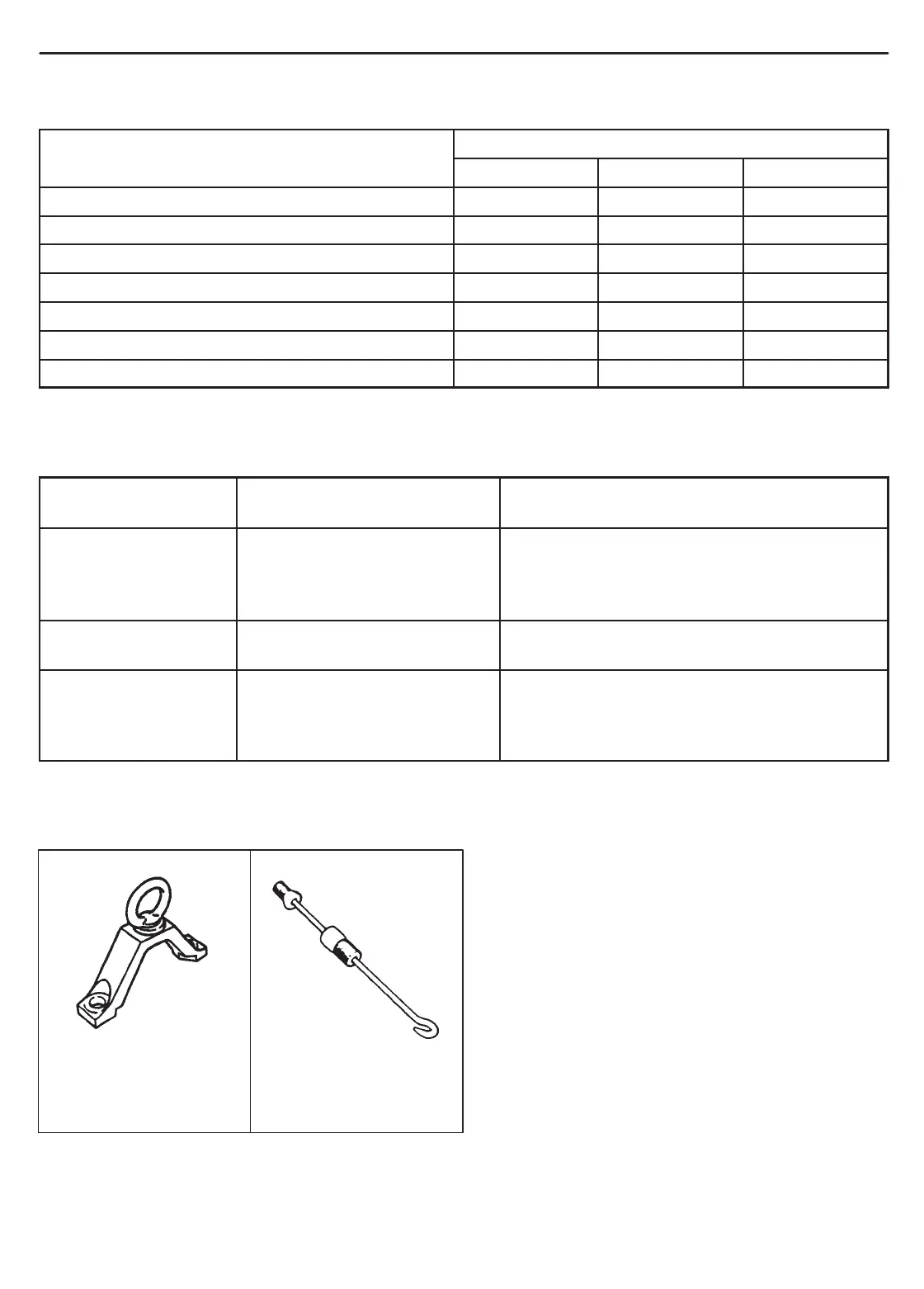

PARKING AND REAR BRAKE 5C-17
09943-35512
Brake drum remover
(Front wheel hub remover)
09942-15510
Sliding hammer
TIGHTENING TORQUE SPECIFICATIONS
p
Tightening torque
N
.
m kg-m lb-ft
Wheel cylinder bleeder plug 7.5 0.75 5.5
Parking brake lever bolt 23 2.3 17.0
Wheel cylinder bolt (For non sealed type) 8.5 0.85 6.5
Wheel cylinder bolt (For gasket sealed type) 11 1.1 12.0
Brake pipe flare nut 16 1.6 12.0
Brake back plate nut 23 2.3 17.0
Wheel nut 100 10.0 72.5
REQUIRED SERVICE MATERIALS
MATERIALS
RECOMMENDED
SUZUKI PRODUCT
USE
Brake fluid
Indicated on reservoir
cap or described in owner’s
manual of vehicle
To fill master cylinder reservoir.
To clean and apply to inner parts of master
cylinder caliper and wheel cylinder when
they are disassembled.
Water tight
sealant
SEALING COMPOUND 366E
99000-31090
To apply to mating surfaces of brake back
plate and rear wheel cylinder.
Sealant
SUZUKI BOND NO. 1215
99000-31110
To apply to mating surfaces of brake back
plate and rear axle housing.
To apply mating surfaces of brake back
plate and rear wheel bearing retainer.
SPECIAL TOOLS
