YH4
GRAND
VITARA
1
1
1
1. Mounting bolt
1. Driver air bag (inflator) module connector
2. Horn connector
3. Driver air bag (inflator) module
4. Steering wheel

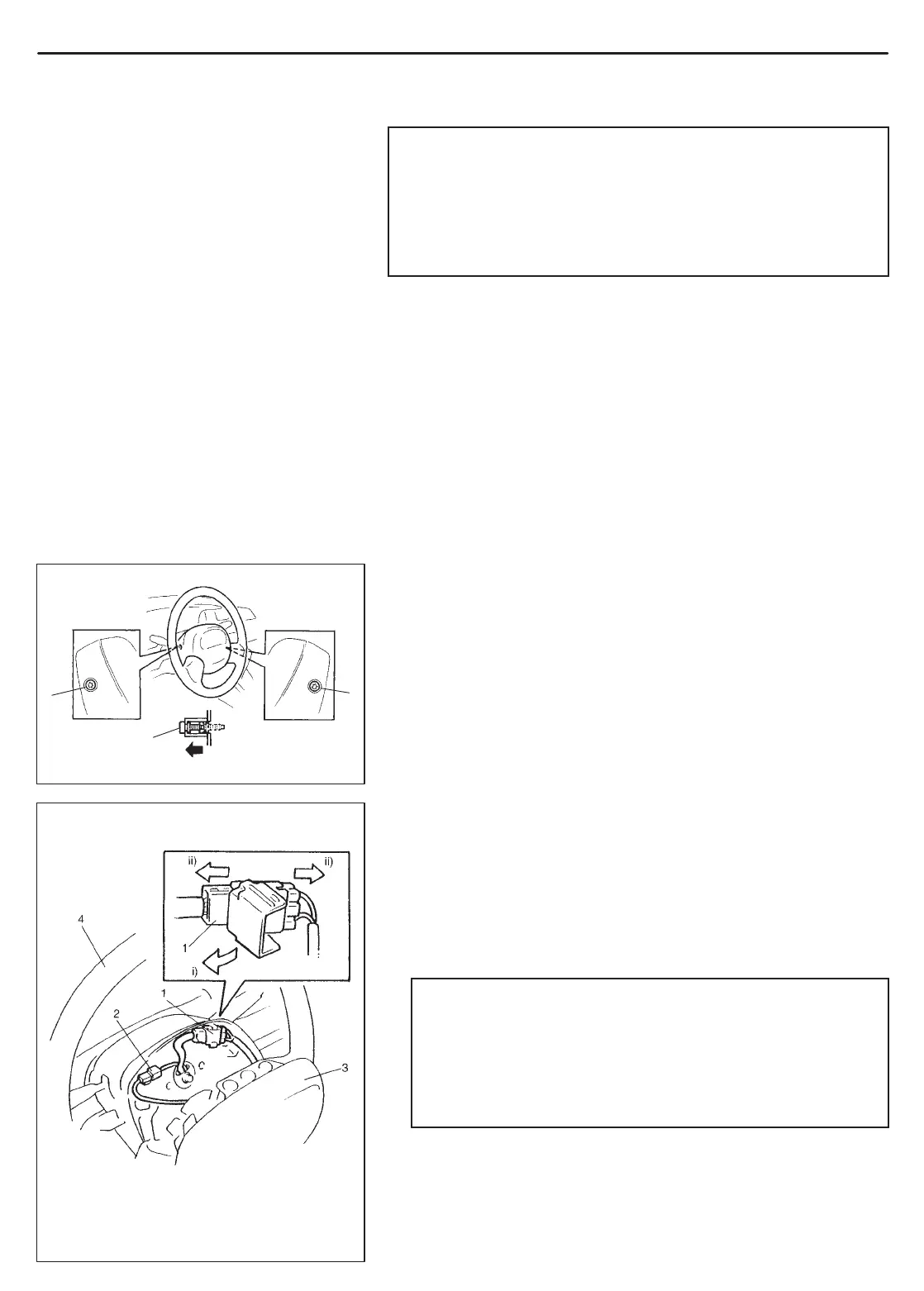

3C1-4 AIR BAG STEERING WHEEL AND COLUMN
DRIVE AIR BAG (INFLATOR) MODULE
WARNING:
When handling an air bag (inflator) module, be sure to read
“SERVICE PRECAUTIONS” under “ON-VEHICLE SERVICE”
in Section 10B and observe each instruction. Failure to fol-
low them could cause a damage to the air bag (inflator) mod-
ule or result in personal injury.
REMOVAL
1) Disconnect negative battery cable at battery terminal.
2) Disable air bag system. Refer to “DISABLING AIR BAG SYS-
TEM” under “SERVICE PRECAUTIONS” in Section 10B.
3) Loosen 2 bolts mounting driver air bag (inflator) module till it
turns freely, pull them out and fix them to bolt clamps.
4) Remove air bag (inflator) module from steering wheel.
5) Remove driver air bag (inflator) module (yellow) connector and
horn connector from steering wheel.
6) Disconnect driver air bag (inflator) module (yellow) connector of
driver air bag (inflator) module and horn connector as shown in
the figure.
ii) Release locking of lever.
ii) After unlocked, disconnect connector.
WARNING:
Special care is necessary when handling and storing a
live (undeployed) air bag (inflator) module. Observe
“SERVICE PRECAUTIONS” under “ON-VEHICLE SER-
VICE” in Section 10B. Otherwise, personal injury may re-
sult.
To Next Page
