YH4
GRAND
VITARA
7B1-74 AUTOMATIC TRANSMISSION (4 A/T)
1. Boot No.2
2. Boot cover
1. Boot clamp
2. Boot No.1
3. Gear shift control lever
1. Boot No.2
2. Transfer shift control
lever
3. Transfer shift lever case
4. Transfer shift control
case cover
5. Boot No.1
1. A/T throttle cable
2. Adjusting nut
3. Lock nut
G16/J20 H25

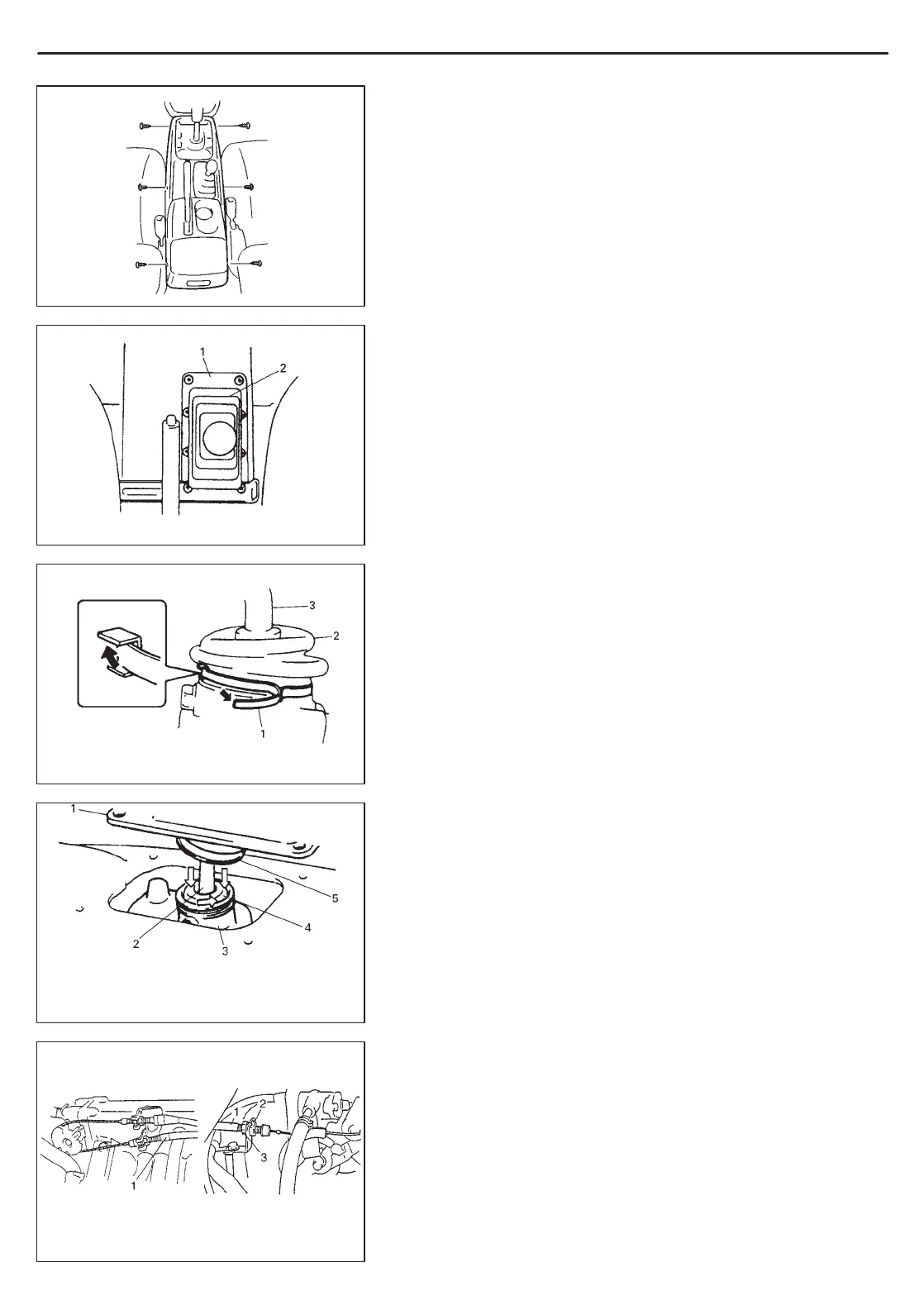

DISMOUNTING OF TRANSMISSION (WITH
TRANSFER IF EQUIPPED)
IN CABIN
1) Remove console box.
NOTE:
To remove clip, push in its center pin first.
2) Remove boot cover and boot No.2. (if equipped)
3) Remove boot clamp and then remove boot No.1 from transfer
gear shift lever case. (if equipped)
4) With transfer shift control case cover pushed down with fingers,
turn it to counterclockwise and take out shift control lever. (if
equipped)
IN ENGINE ROOM
1) Remove battery, dipstick and oil filler tube.
2) Disconnect A/T throttle cable from throttle cam and bracket.
3) Remove starter motor. But don’t disconnect its wiring harness.
4) Remove transmission to engine bolt and nut.
To Next Page
