YH4
GRAND
VITARA
HEATER AND VENTILATION 1A-15

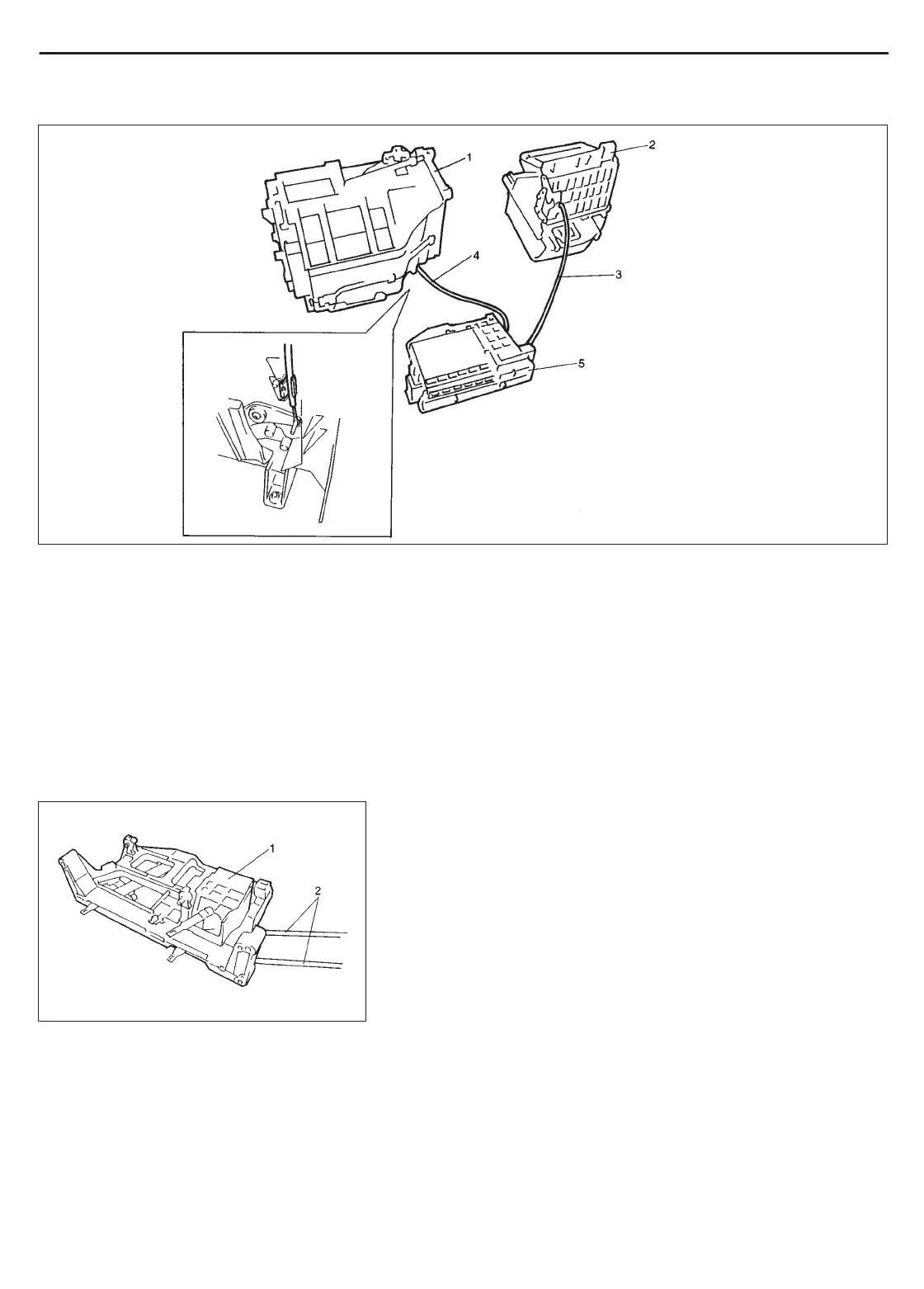

1. Heater unit
2. Blower unit
3. Fresh air control cable
4. Temperature control cable
5. Heater control lever assembly
HEATER CONTROL CABLES
REMOVAL
1) Remove heater control lever assembly.
Refer to HEATER CONTROL LEVER ASSEMBLY in this sec-
tion.
2) Remove control cables (2) from control lever assembly (1).
INSTALLATION
1) Install in reverse order of removal procedure.
Refer to HEATER MODE CONTROL SWITCH in this section.
2) If equipped with air bag, enable air bag system.
Refer to ENABLING AIR BAG SYSTEM in Section 10B.
