Suzuki sq-416-420-625 User Manual

YH4
GRAND
VITARA
8G-10 IMMOBILIZER CONTROL SYSTEM (IF EQUIPPED)
DIAGNOSTIC FLOW TABLE
<Vehicle not equipped with monitor coupler>
STEP ACTION YES NO
1 1) Check immobilizer indicator lamp
while ignition switch is ON (but without
starting engine). See Fig. 1.
Dose immobilizer indicator lamp flash?
Go to Step 3.  If immobilizer indicator lamp
remains ON, go to Step 2.
 If immobilizer indicator lamp
remains OFF, go to
“IMMOBILIZER INDICATOR
LAMP CHECK” in this section.
2 1) Check DTC stored in ECM/PCM
referring to “DIAGNOSTIC TROUBLE
CODE CHECK (ECM/PCM)” in this
section.
Is there any DTC(s)?
Go to “IMMOBILIZER
INDICATOR LAMP
CHECK” in this section.
Immobilizer control system is in
good condition.
3 1) Check DTC stored in immobilizer
control module referring to
“DIAGNOSTIC TROUBLE CODE
CHECK (IMMOBILIZER CONTROL
MODULE)” in this section.
Is there any DTC(s)?
Go to flow table for
DTC No.
Go to Step 4.
4 1) Check DTC stored in ECM/PCM
referring to “DIAGNOSTIC TROUBLE
CODE CHECK (ECM/PCM)” in this
section.
Is there any DTC(s) for immobilizer
control system?
Go to flow table for
DTC No.
Substitute a known-good ECM/
PCM and recheck.
NOTE:
After replacing with a known-
good ECM/PCM, register
ECM/Immobilizer Control
Module code in ECM/PCM by
performing procedure described
in “Procedure after ECM/PCM
Replacement” section.

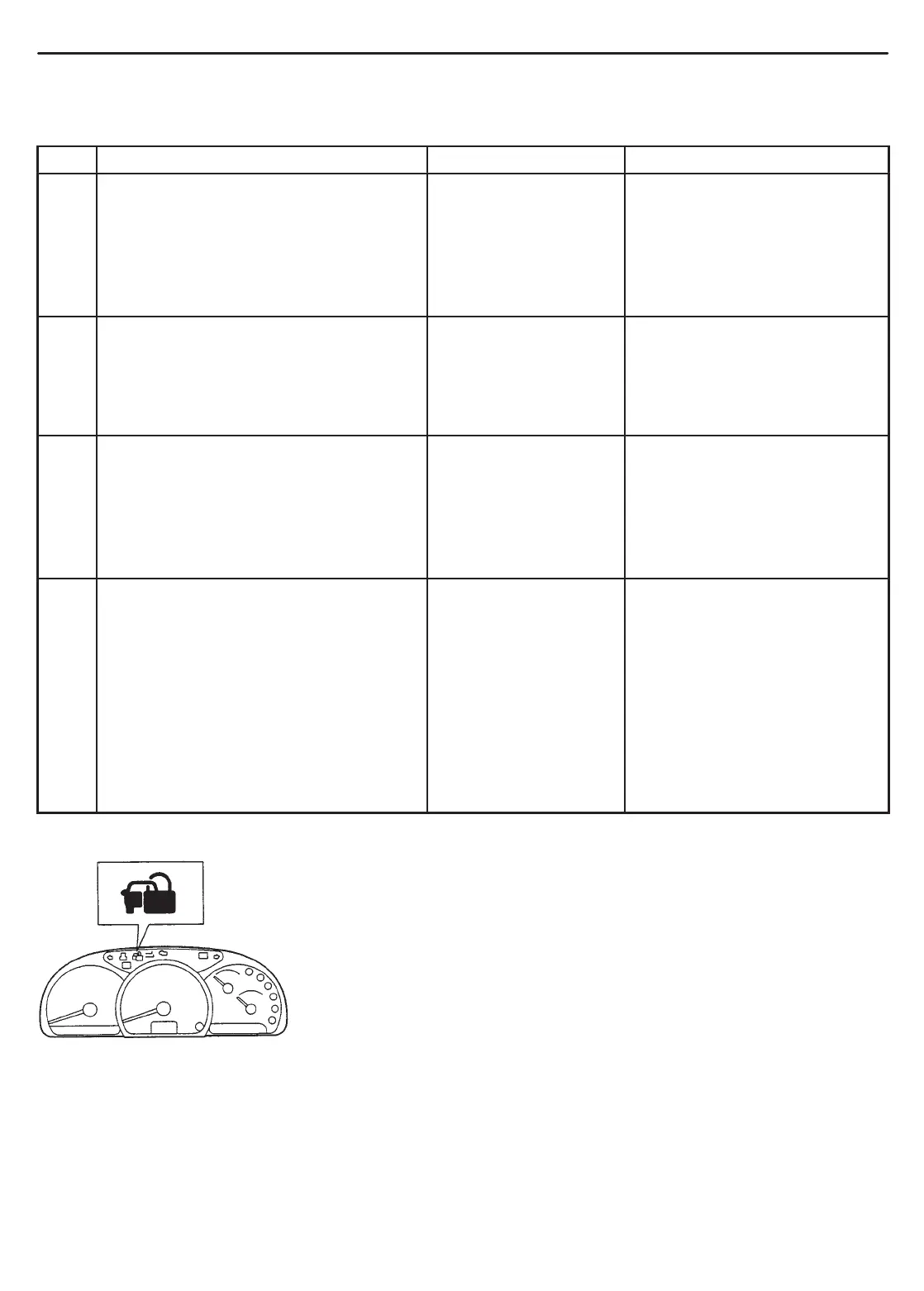

FIg. 1 for Step 1
