YH4

GRAND

VITARA

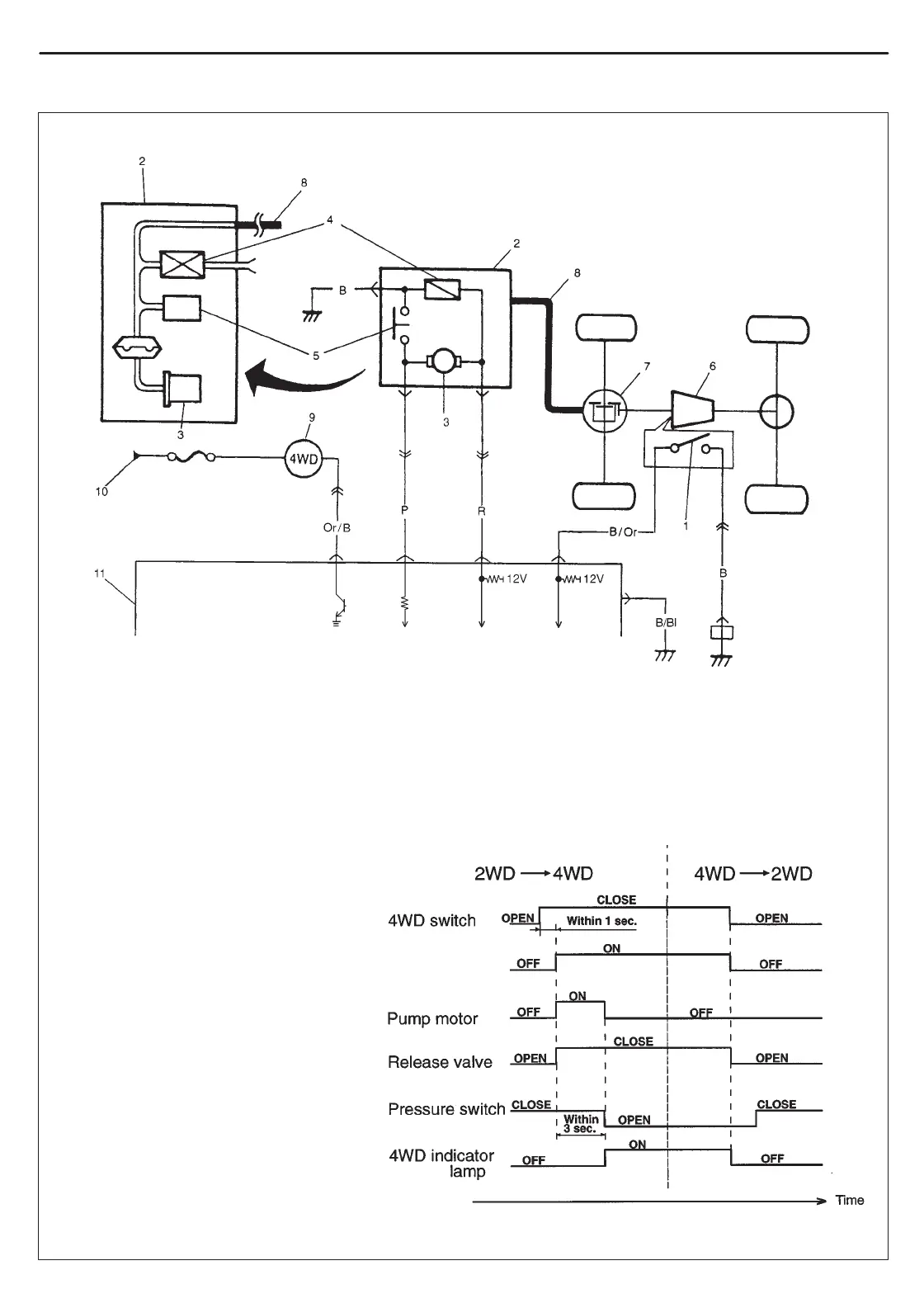

1. 4WD switch

2. Air pump assembly

3. Pump motor

4. Release valve

5. Pressure switch

6. Transfer

7. Front differential

8. Air hose and pipe

9. 4WD indicator lamp

10. To ignition switch

11. ECM or PCM

Operation

(refer to “Components and Functions”)

Power supply

(from ECM or PCM)

DIFFERENTIAL (FRONT) 7E-3

System Circuit and Operation
