YH4
GRAND
VITARA
LH steering vehicle shown

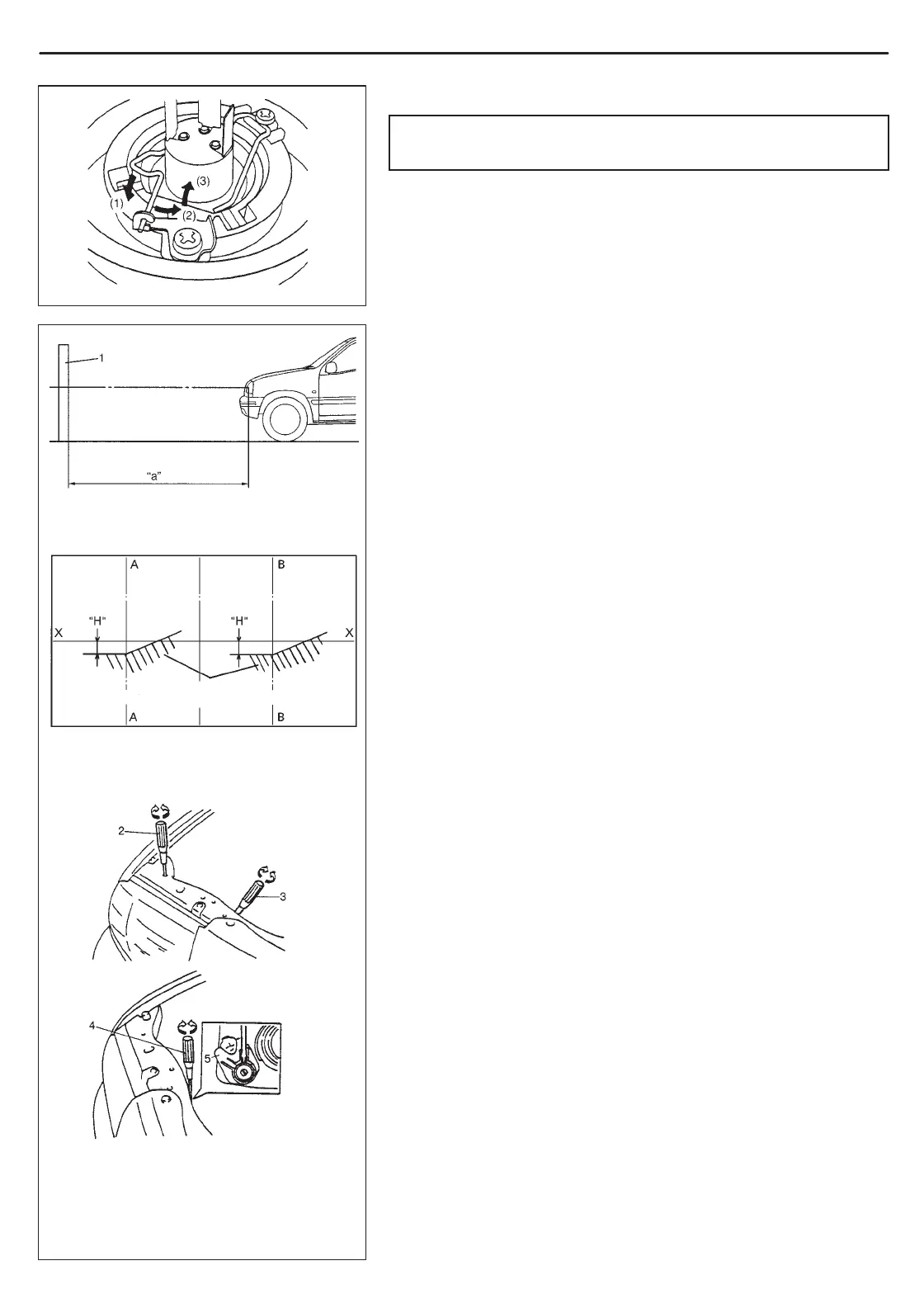

X-X:Horizontal center line of headlight bulbs
A-A:Vertical center line of left headlight bulb
B-B:Vertical center line of right headlight bulb
1. Screen
2. For right/left adjustment
3. For up/down adjustment
(for vehicle without leveling system)
4. For up/down adjustment
(for vehicle with leveling system)
5. Headlight leveling actuator
HOT
SPOT
LH. HEADLIGHT RH. HEADLIGHT
LIGHTING SYSTEM 8B-7
BULB REPLACEMENT
WARNING:
Don’t touch when the bulb is hot.
1) Disconnect negative cable at battery.
2) Disconnect harness from bulb.
3) Remove socket cover and bulb.
4) Replace bulb and install in reverse removal procedure.
HEADLIGHT AIMING WITH SCREEN
NOTE:
Unless otherwise obligated by local regulations, adjust
headlight aiming according to following procedure.
After replacing headlight, be sure to perform its aiming.
When inspecting and adjusting headlight with leveling sys-
tem, make sure to set the leveling switch to “0” position with
IG switch ON.
Before adjustment, make sure the following.
a) Place vehicle on a flat surface in front of blank wall as below
ahead of headlight surface.
Clearance “a”: 10 m (32.8 ft)
b) Adjust air pressure of all tires to a specified value respectively.
c) Bounce vehicle body up and down by hand to stabilize suspen-
sion.
d) Carry out one driver aboard.
Driver’s weight: 75 kg (165 lb)
Adjustment
1) Check to see if hot spot (high intensity zone) of each main (low)
beam axis falls as illustrated.
Clearance “H”: Approx. 130 mm (5.15 in.)
2) If headlight aiming is not set properly, align it to specification by
adjusting aiming screw and aiming gear.
