YH4
GRAND
VITARA

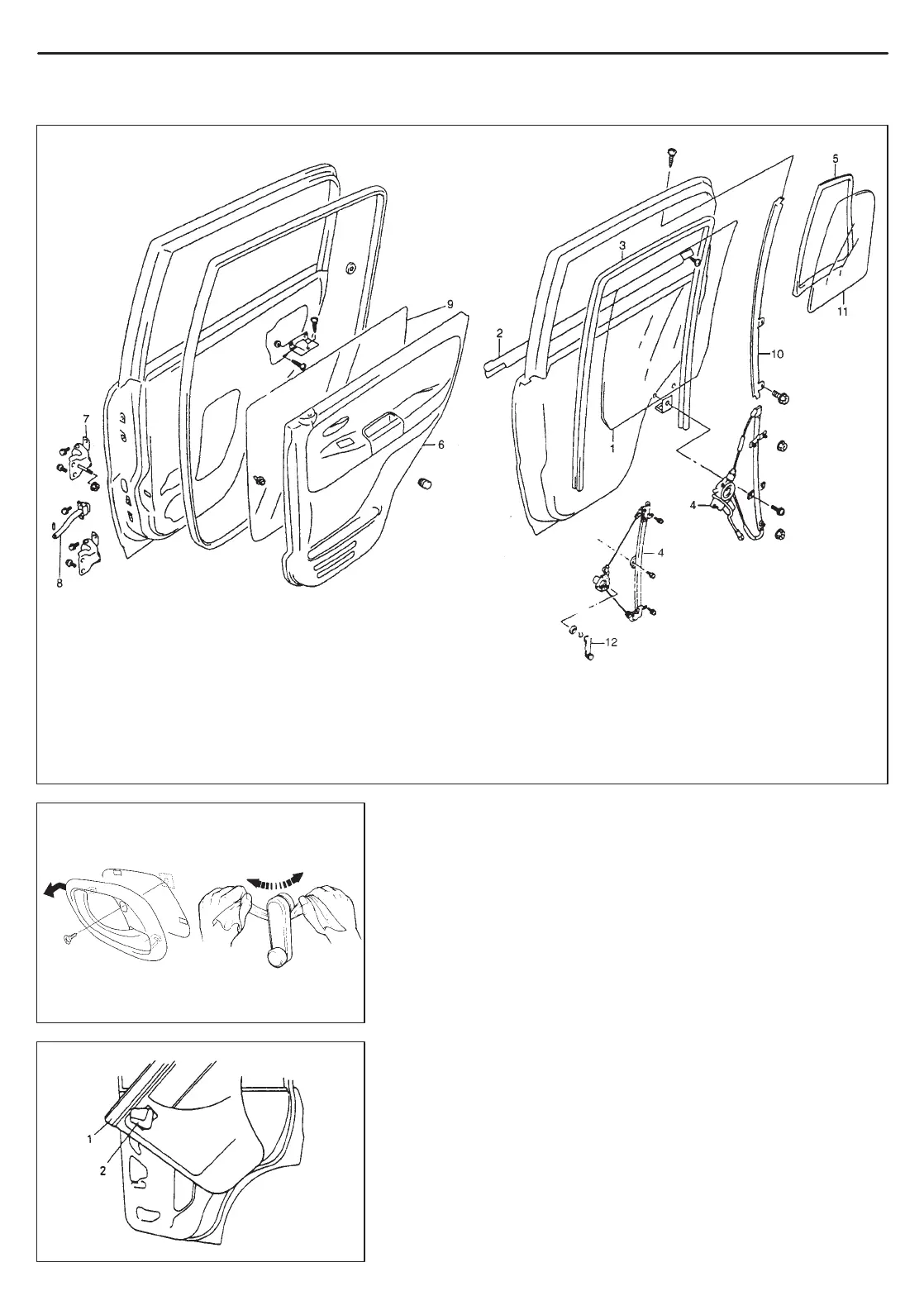

1. Door trim
2. Inside handle
bezel
7. Door hinge
8. Door open stop
9. Door sealing cover
10. Door center sash
11. Partition glass
12. Window regulator handle (if equipped)
1. Door glass
2. Weatherstrip (outside)
3. Glass run
4. Window regulator
5. Partition weather strip
6. Door trim
9-12 BODY SERVICE
REAR DOOR GLASS
REMOVAL
-1) Remove inside handle bezel.
-2) Remove inside lock knob and door inside pull handle case fit-
ting screw.
2-1) Window regulator handle (if equipped).
To remove regulator handle, pull off snap ring by using a cloth
as shown below.
3) Remove door trim with inside weatherstrip.
With inside handle bezel tilted as shown in figure, turn door trim
90_ counterclockwise to remove it. And disconnect power win-
dow switch lead wire.
4) Remove door sealing cover.
To Next Page
