YH4
GRAND
VITARA

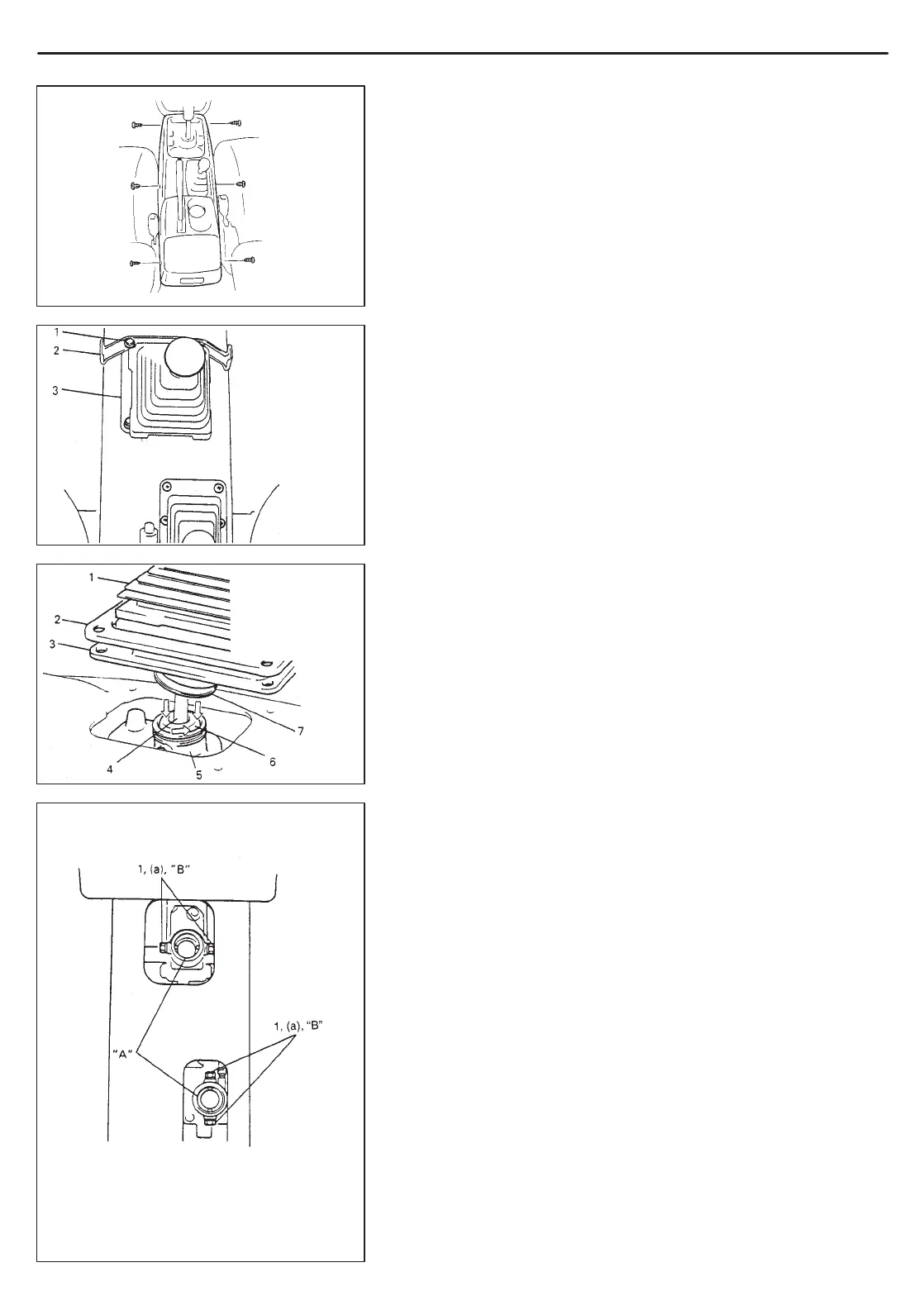

1. Bolt
2. Console box
bracket
3. Boot cover
1. Boot No. 3
2. Boot cover
3. Boot No. 2
4. Control lever
5. Lever case
6. Control case cover
7. Boot No. 1
1. Transmission control
lever locating bolt
2. Transfer control lever
locating bolt
7A-4 MANUAL TRANSMISSION (TYPE 1)
SHIFT CONTROL LEVERS
REMOVAL
1) Remove 4 screws at the front and rear and 2 clips at the center
then take off front and rear center console boxes.
NOTE:
To remove clip, push in its center pin first.
2) Remove console box bracket by removing bolts and lift up boot
cover and boot No. 2.
3) Remove boot clamp and then remove boot No. 1 from transmis-
sion shift lever case.
4) With gear shift control case cover pushed down with fingers, turn
it to counter clockwise and take out shift control lever.
5) Take out transfer shift control lever in similar manner as de-
scribed above.
INSPECTION AND INSTALLATION
1) Check shift control lever lower portion and control lever locating
sheet for excessive wear, and boot for damage. Correct or re-
place if necessary.
2) Apply grease to pivot portions and seat, then install shift control
lever.
“A”: Grease 99000-25010
3) Perform above steps also for transfer shift control lever.
4) If control lever locating bolts (a) are replaced or retightened,
torque them as specified below.
Replacing of control lever locating bolts requires thread lock ce-
ment.
“B”: Cement 99000-32020
Tightening Torque
(a): 17 N
.
m (1.7 kg-m, 12.5 lb-ft)
To Next Page
