7A-14 MANUAL TRANSMISSION (TYPE 1)
09951-16060
Oil seal installer
UNIT REPAIR
Refer to the same section of UNIT REPAIR MANUAL mentioned in FOREWORD of this manual.

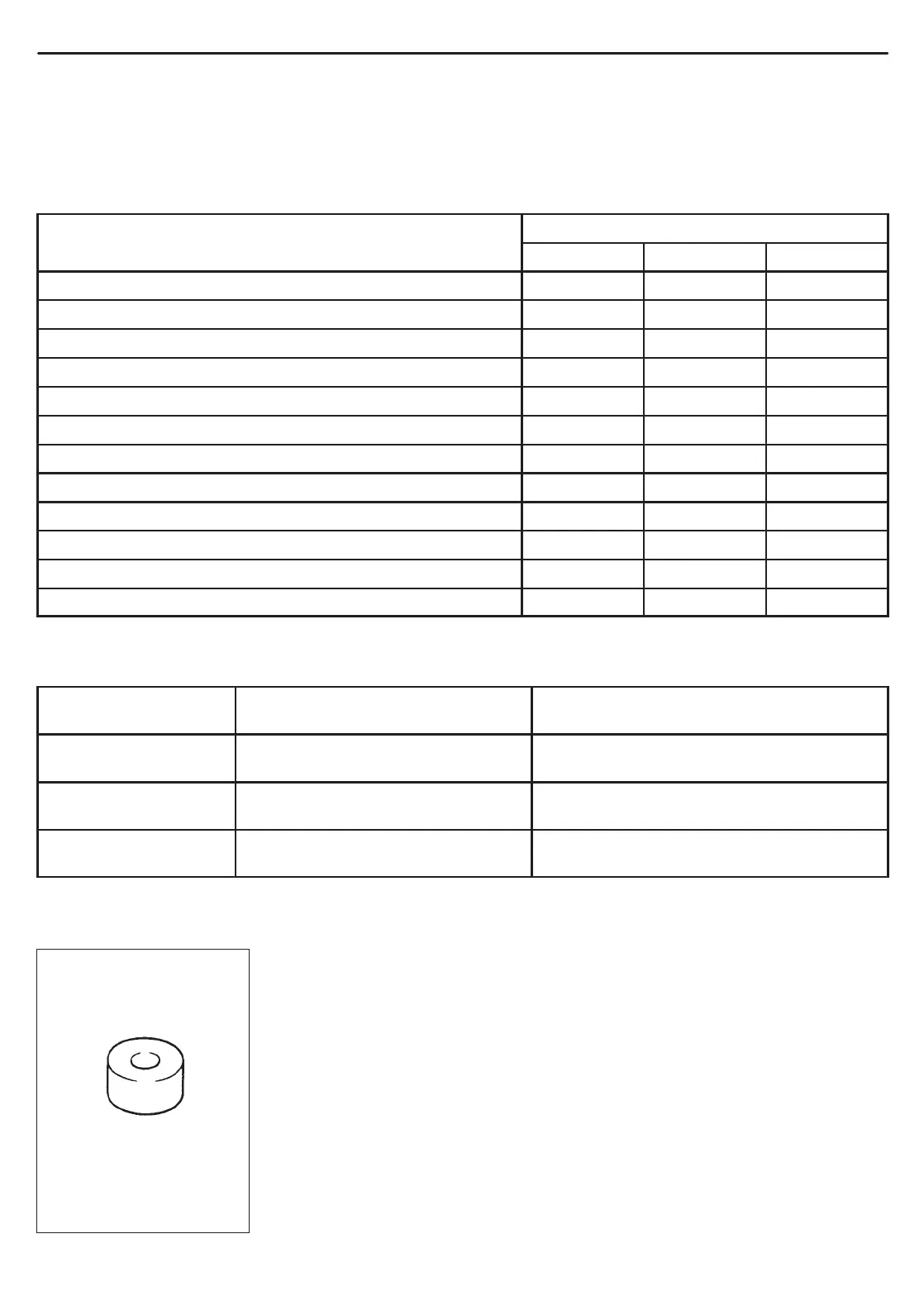

TIGHTENING TORQUE SPECIFICATIONS
p
Tightening torque
N
.
m kg-m lb-ft
Oil filler/level and drain plugs 23 2.3 17.0
Control lever boot cover bolts 6 0.6 4.0
4WD switch 20 2.0 14.5
Back up light switch (Type 1) 20 2.0 14.5
Back up light switch (Type 2) 45 4.5 32.5
Control lever locating bolts 17 1.7 12.5
Transmission to engine bolts and nuts 85 8.5 61.5
Engine rear mounting bolts and nut 50 5.0 36.5
Exhaust center pipe to manifold nuts 50 5.0 36.5
Muffler to exhaust center pipe bolts 50 5.0 36.5
Universal joint flange bolts 50 5.0 36.5
Select return spring bolts 23 2.3 17.0
REQUIRED SERVICE MATERIALS
MATERIAL
RECOMMENDED
SUZUKI PRODUCT
USE
Lithium grease
SUZUKI SUPER GREASE A
(99000-25010)
Shift control lever.
Select return springs, bolts and guides.
Thread lock cement
THREAD LOCK CEMENT
SUPER 1333B (99000-32020)
Shift control lever locating bolts.
Sealant
SUZUKI BOND No. 1215
(99000-31110)
Oil Drain and filler/level plugs.
