YH4

GRAND

VITARA

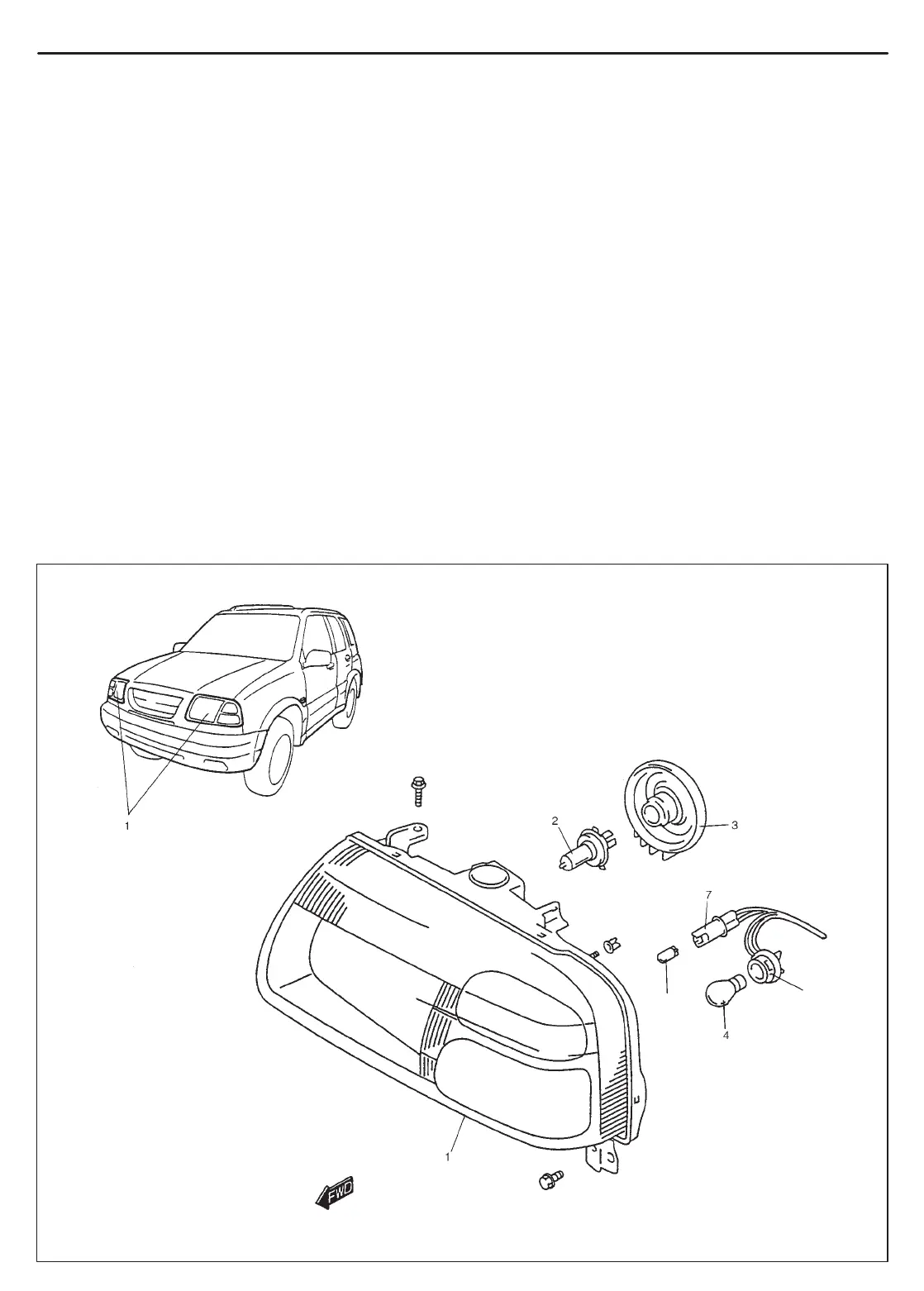

1. Headlight assembly

2. Halogen bulb

3. Socket cover

4. Turn signal light bulb

5. Position light bulb

6. Turn signal light bulb socket

7. Position light bulb socket

8B-2 LIGHTING SYSTEM

GENERAL DESCRIPTION

CAUTIONS IN SERVICING

Refer to Section 8.

SYMBOLS AND MARKS

Refer to Section 8.

WIRING COLOR SYMBOLS

Refer to Section 8.

ABBREVIATIONS

Refer to Section 8.

JOINT CONNECTOR

Refer to Section 8.

FUSE BOX AND RELAY

Refer to Section 8.

POWER SUPPLY DIAGRAM

Refer to Section 8.

HEADLIGHTS
