YH4
GRAND
VITARA

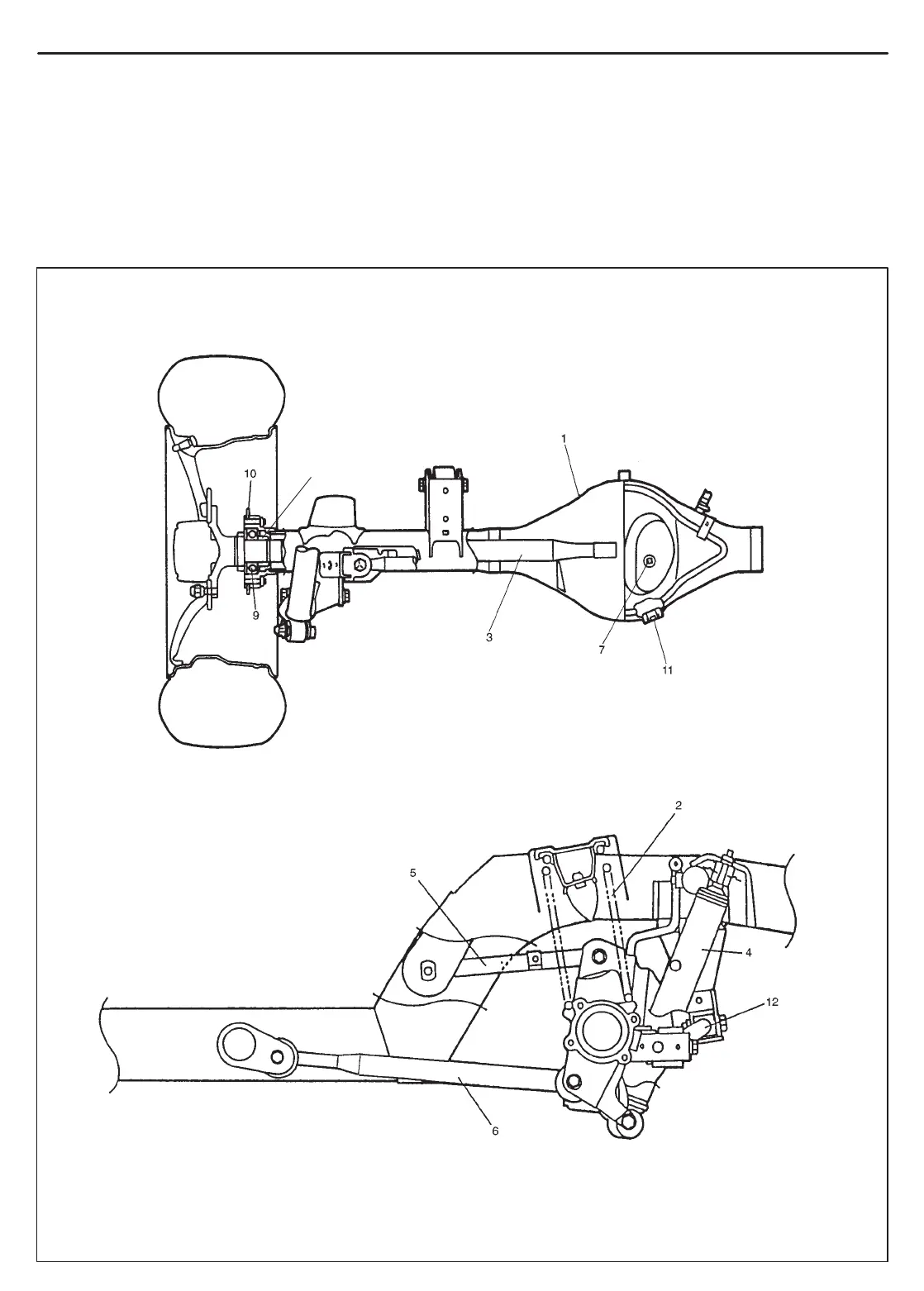

1. Rear axle housing
2. Coil spring
3. Axle shaft
4. Shock absorber
5. Upper rod
6. Lower rod
7. Oil level plug
8. Wheel bearing retainer
9. Rear wheel bearing
10. Brake back plate
11. Oil drain plug
12. Lateral rod
NOTE:
When installing differential gear oil drain
plug, clean the thread portion of the plug and
then apply sealant (SUZUKI BOND No. 1215,
99000-31110) to the portion.
8
3E-2 REAR SUSPENSION
GENERAL DESCRIPTION
Rear suspension is 5 link type of rigid axle which consists of coil springs, rear axle, shock absorbers, upper rods,
lower rods and lateral rod.
The lower rod and upper rod are connected with the axle and body by using bushes so that axle moves up and
down with bushes as their supporting points.
The shock absorber is installed between the body and axle to absorb up-and-down movement of the vehicle body.
