YH4

GRAND

VITARA

1. Cooling unit

2. Compressor

3. Condenser assembly

4. Receiver/dryer

5. Discharge hose

6. Suction hose

7. Condenser outlet pipe

8. Liquid pipe

9. Expansion valve

10. Ventilation air

11. Foot air

12. Defroster air

13. Demister air

14. Fresh air

15. Recirculation air

16. Heater unit

17. Air inlet box

18. Dual pressure switch

19. Low pressure charge valve

20. High pressure charge valve

21. Suction pipe

22. Sight glass

CAMI PRODUCTION VEHICLE IWATA PRODUCTION VEHICLE

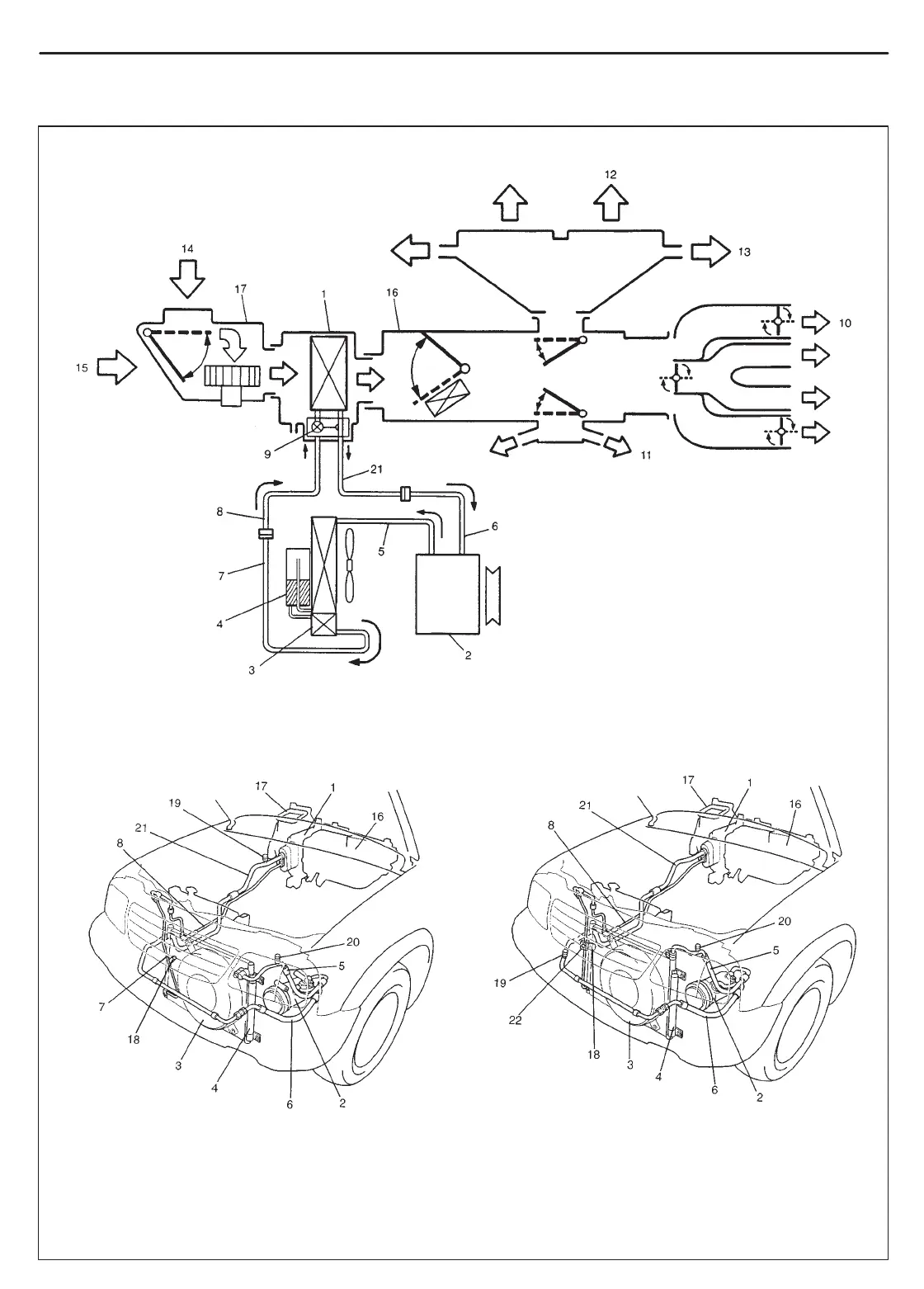

AIR CONDITIONING (OPTIONAL) 1B-5

MAJOR COMPONENTS AND LOCATION
