YH4
GRAND
VITARA
1. Match mark
7A-12 MANUAL TRANSMISSION (TYPE 1)

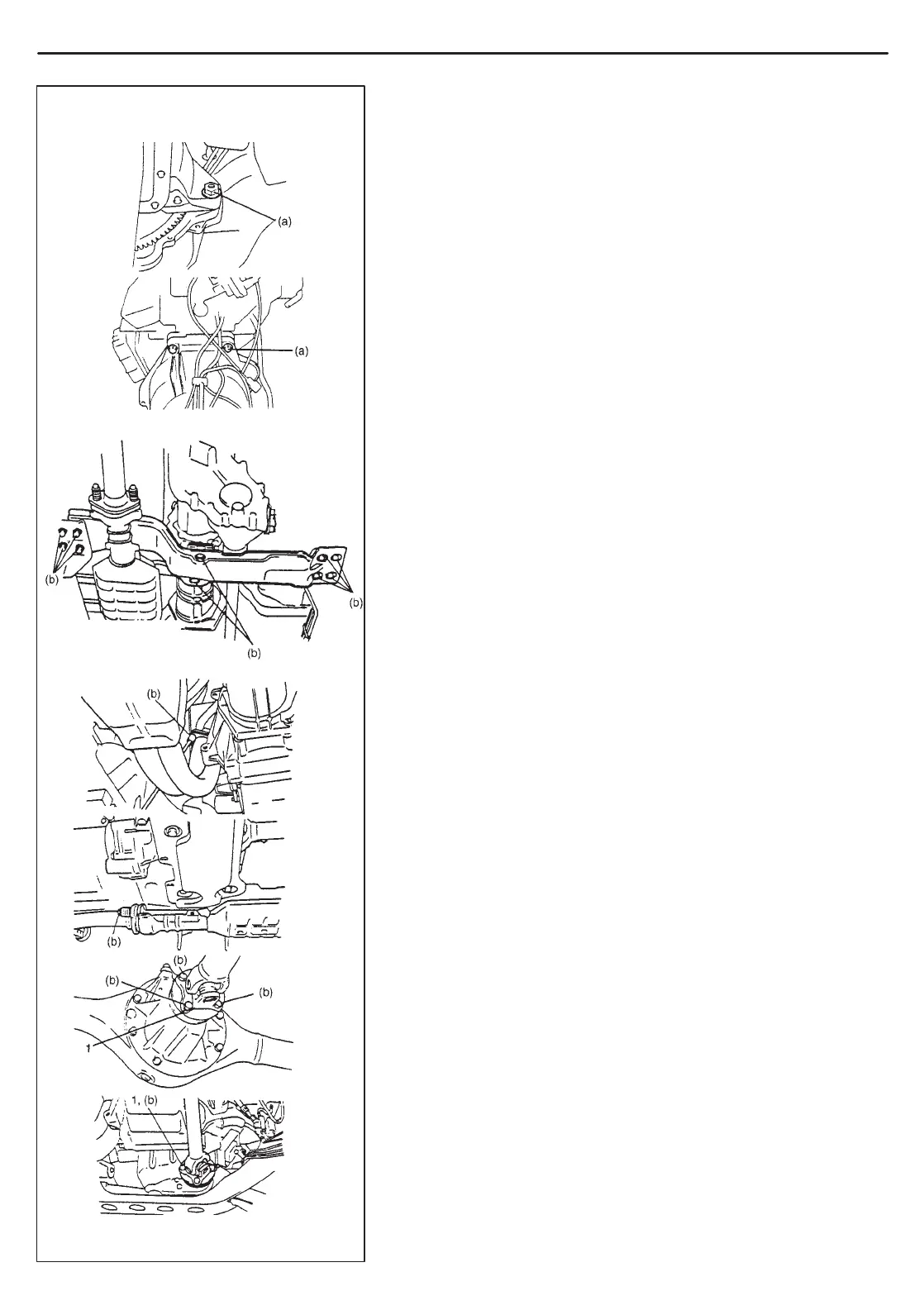

REMOUNTING OF TRANS. UNIT
For remounting, reverse dismounting procedure.
Use specified torques as given below.
Tightening Torque
(a): 85 N
.
m (8.5 kg-m, 61.5 lb-ft)
(b): 50 N
.
m (5.0 kg-m, 36.5 lb-ft)
For tightening torque of transmission stiffener bolt, refer to
“ENGINE MECHANICAL” section.
Set each clamp for wiring, hose and cable securely.
Set clamp for shift control lever boots securely.
After installing clutch operating cylinder, check clutch pedal free
travel. Refer to SECTION 7C1 “CLUTCH”.
Fill gear oil to transmission and transfer as specified.
Connect battery and check function of engine, clutch and trans.
When installing propeller shaft, align the match marks.
To Next Page
