YH4

GRAND

VITARA

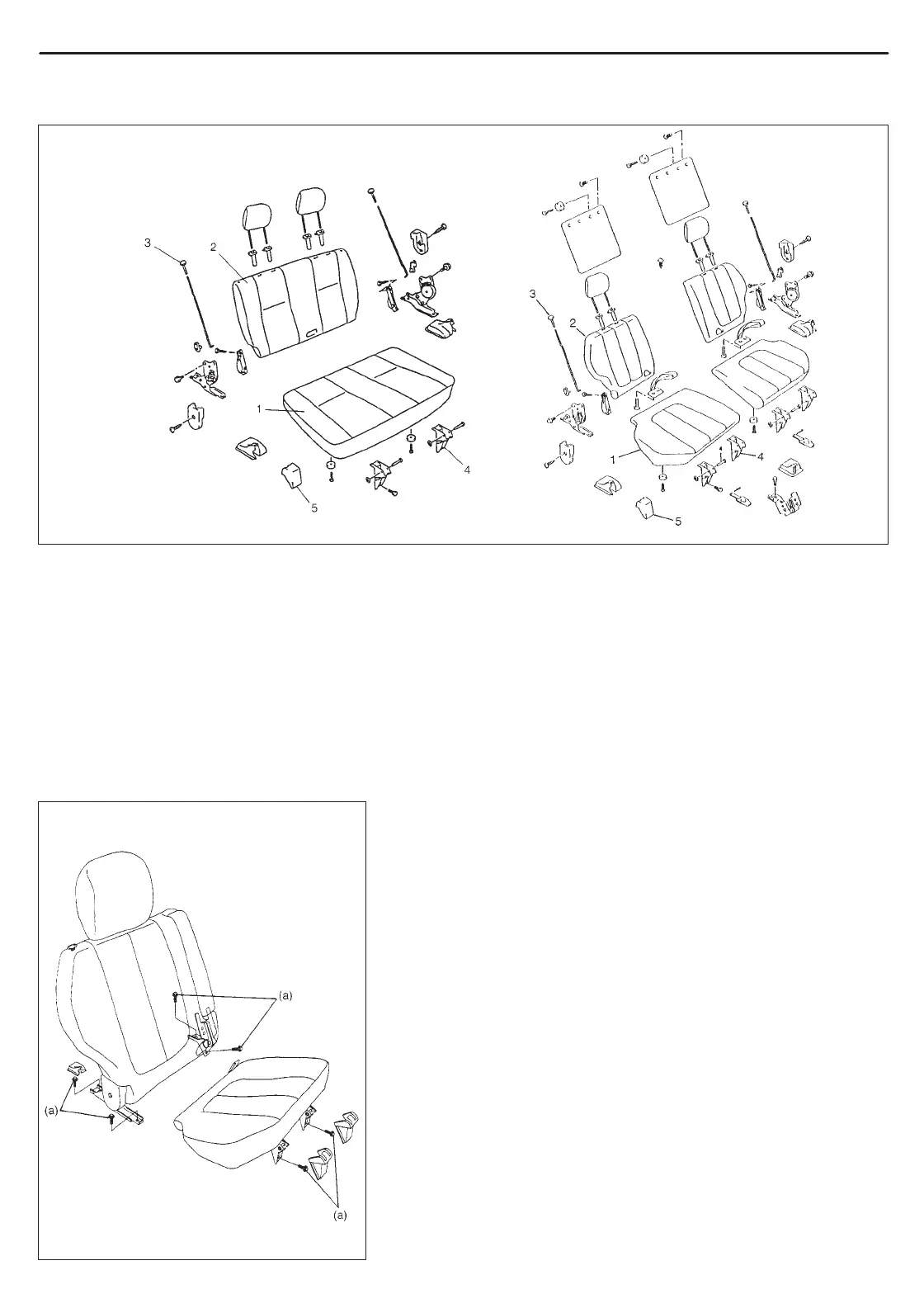

1. Seat cushion

2. Seat back

3. Seat auto lock release handle

4. Seat hinge male

5. Hinge male cover

BODY SERVICE 9-35

REAR SEAT

REMOVAL

1) Remove four mounting bolt to remove seat cushion.

2) Remove four mounting bolts to remove seat back.

3) Disassemble and repair seat as necessary.

INSTALLATION

Reverse removal procedure to install rear seat.

Torque to specifications, as shown.

Tightening Torque

(a): 35 N

m (3.5 kg-m, 25.5 lb-ft)
