YH4
GRAND
VITARA

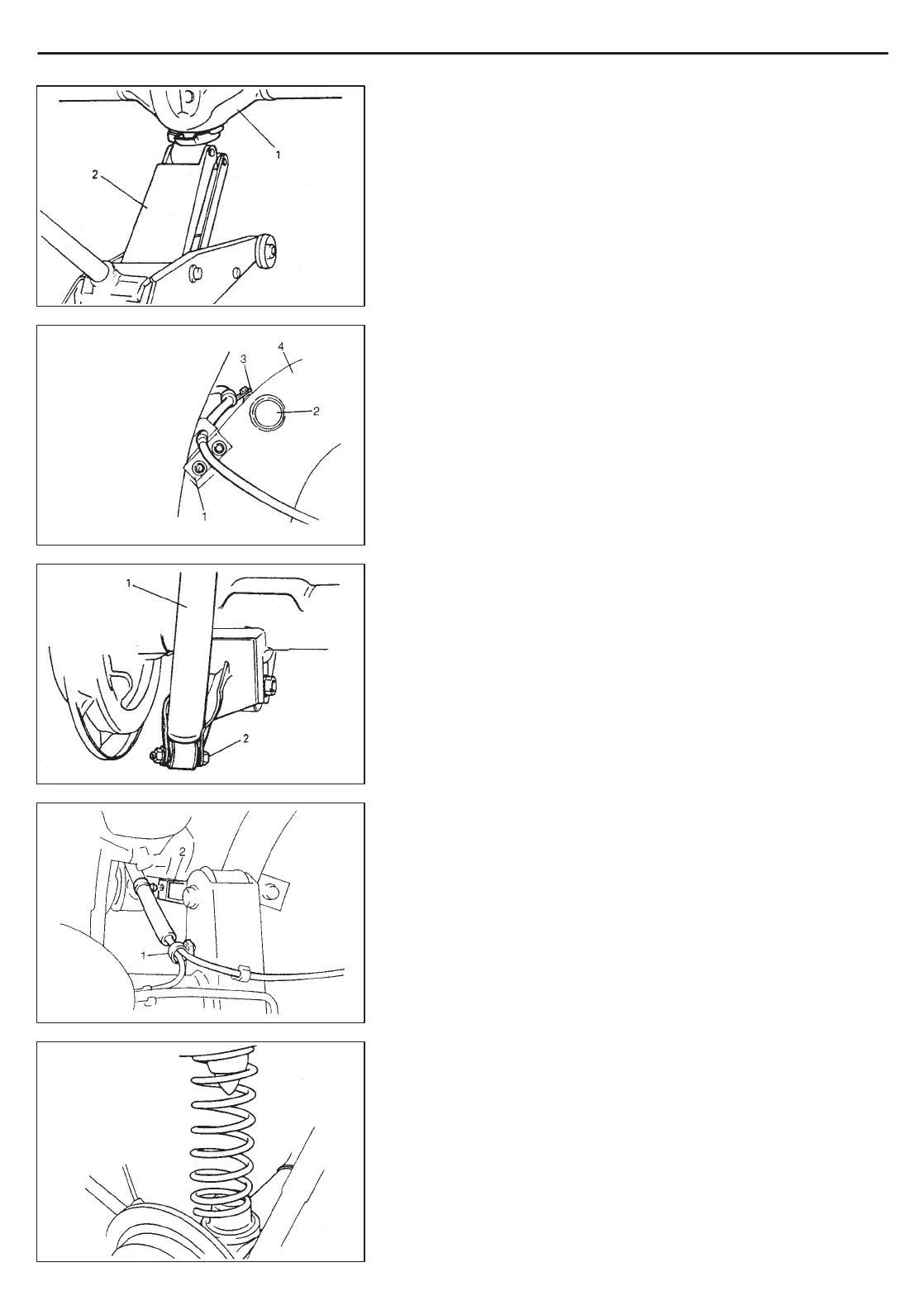

1. Parking brake
cable hanger
2. Cross member
3. Clamp
4. Chassis frame
1. Rear axle housing
2. Floor jack
1. Shock absorber
2. Lower bolt
1. Clamp
2. Upper rod
3E-6 REAR SUSPENSION
COIL SPRING
REMOVAL
1) Hoist vehicle and remove rear wheel.
2) Support rear axle housing by using floor jack.
3) Disconnect parking brake cable hanger from chassis frame and
clamp from cross member.
4) Remove shock absorber lower mounting bolt.
5) Remove wheel speed sensor clamps from upper rod and axle
housing, if equipped with ABS.
For right side, remove E-ring for fixing brake pipe from cross
member and disconnect breather hose from axle housing.
6) Lower rear axle housing gradually as far down as where coil
spring can be removed.
7) Remove coil spring.
