EM-89

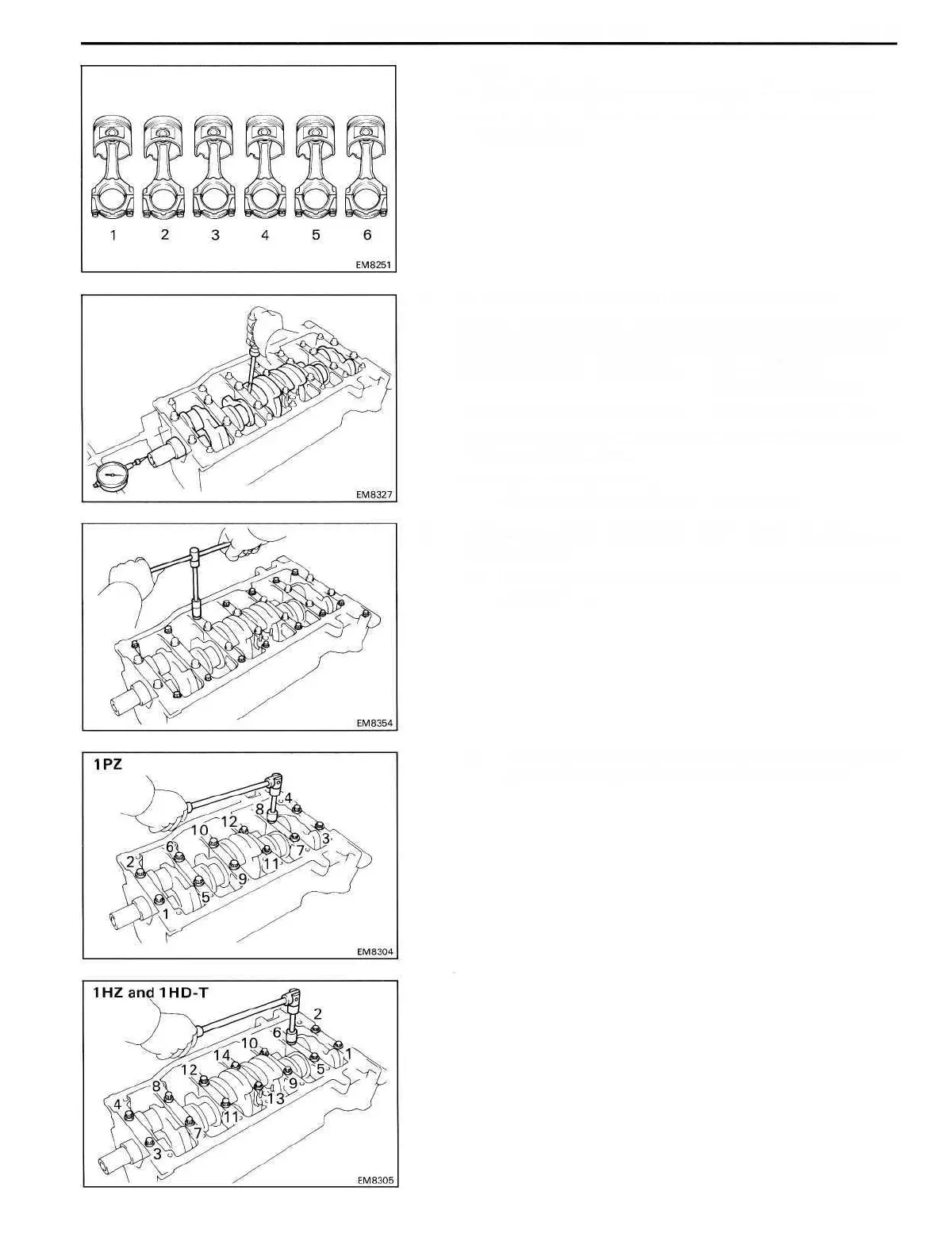

ENGINE MECHANICAL - Cylinder Block

HINT:

• Keep the bearings, connecting rod and cap together.

• Arrange the piston and connecting rod assemblies in

correct order.

5. CHECK CRANKSHAFT THRUST CLEARANCE

Using a dial indicator, measure the thrust clearance while

prying the crankshaft back and forth with a screwdriver.

Standard thrust clearance: 0.04-0.24 mm

(0.0016-0.0094 in.)

Maximum thrust clearance: 0.30 mm (0.0118 in.)

If the thrust clearance is greater than maximum, replace the

thrust washers as a set.

Thrust washer thickness:

2.930-2.980 mm (0.1154-0.1173 in.)

6. REMOVE MAIN BEARING CAP AND CHECK OIL

CLEARANCE

(a) Remove the thirteen bolts (1 PZ) or fifteen bolts (1 HZ

and 1HD-T).

(b) Uniformly loosen and remove the main bearing cap

bolts in several passes in the sequence shown.
