ST-28 STARTING SYSTEM - Voltage Converter Timer
VOLTAGE CONVERTER TIMER
(HZJ80 and HDJ80) (w/ 24 V Starter)
LOCATION: In the cowl on the passenger's side.

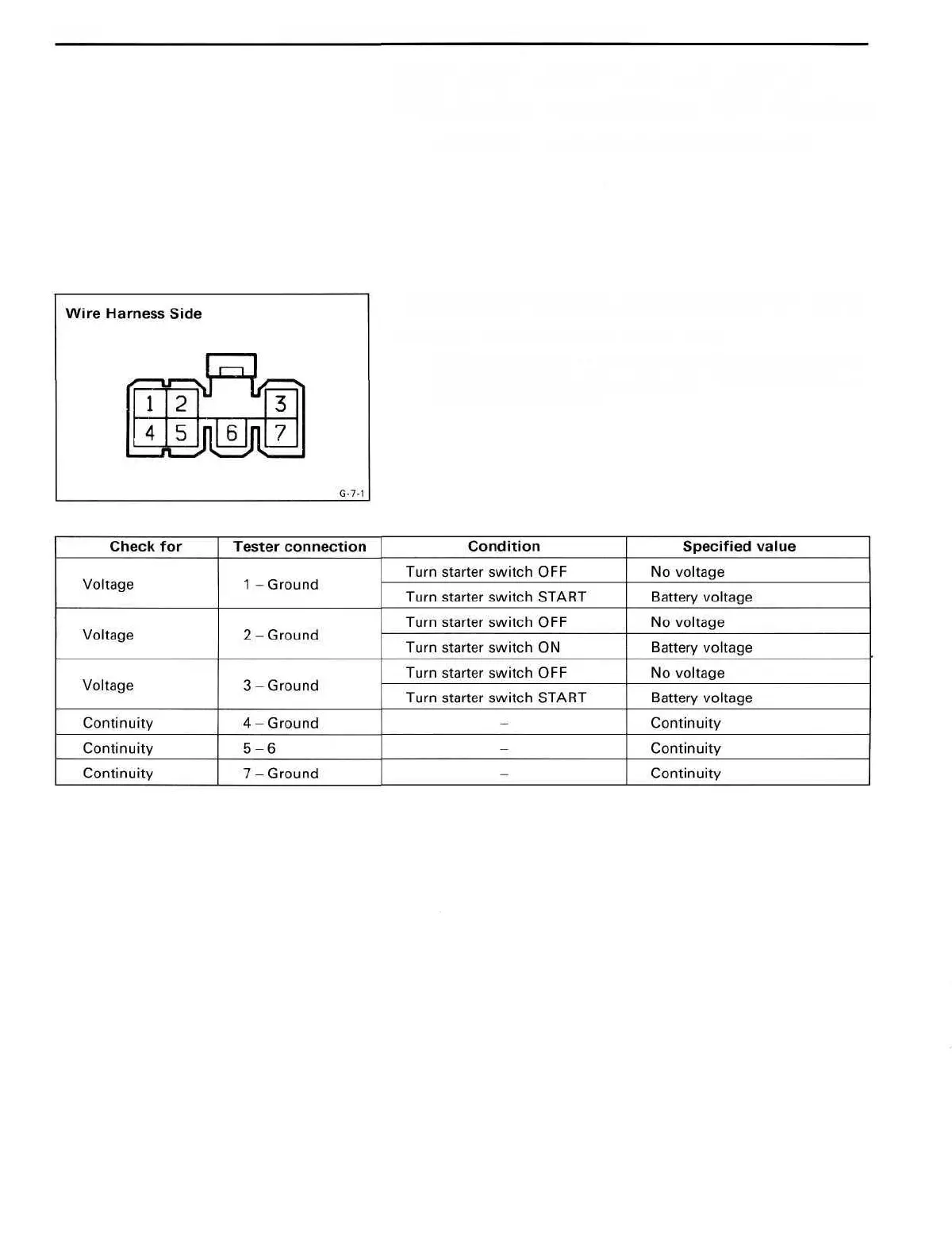

INSPECTION OF VOLTAGE CONVERTER TIMER
INSPECT VOLTAGE CONVERTER TIMER
Disconnect the connector from the voltage converter timer,
and check the connector on the wire harness side as shown
in the following chart.
