ST-24 STARTING SYSTEM - Starter

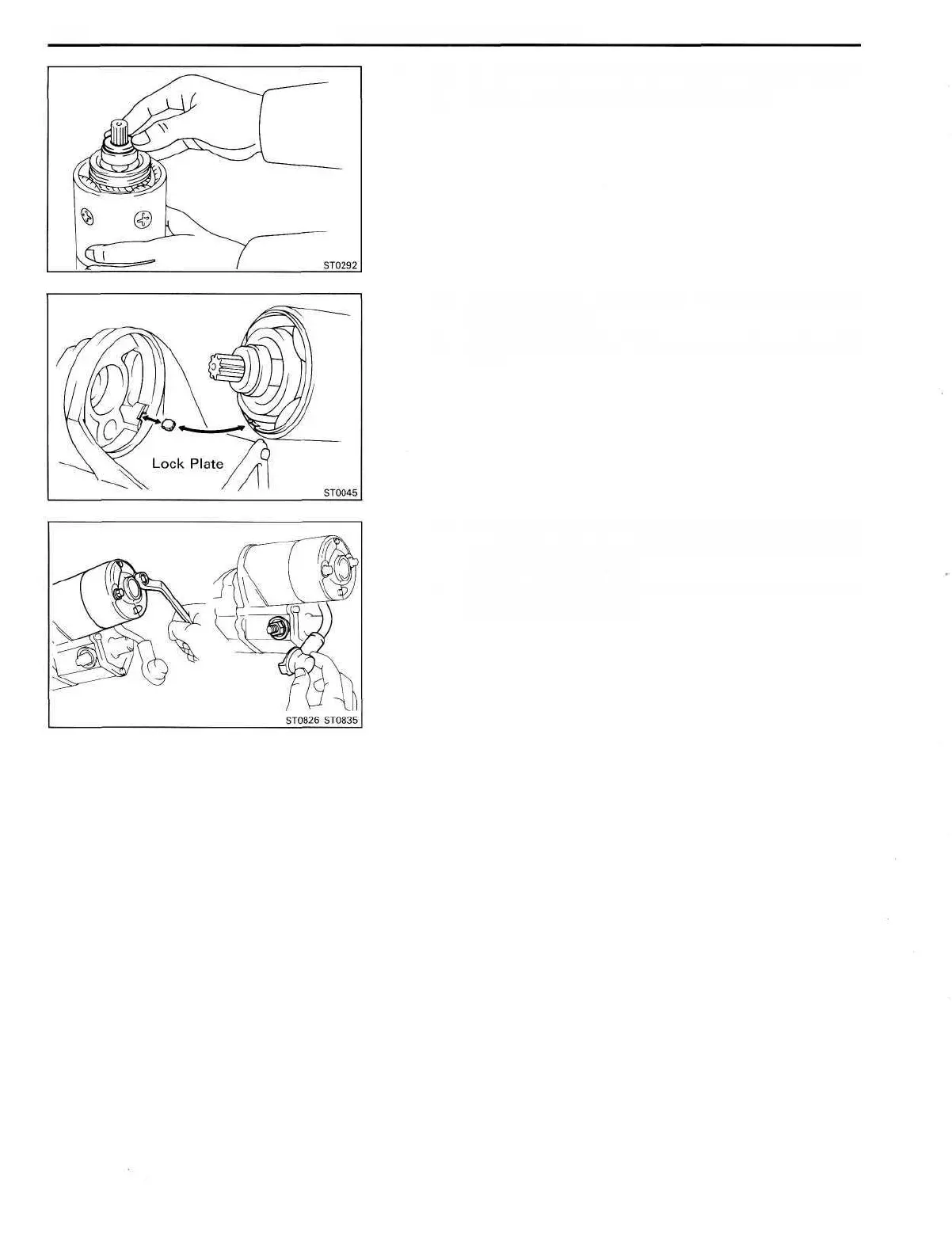

5. INSTALL FIELD FRAME AND ARMATURE ASSEMBLY
(a) Install a new felt washer to the armature.
(b) Install the lock plate to the cutout portion of the
magnetic switch.
(c) Align the lock plate with the cutout portion of the field
frame.
(d) Install the field frame and armature assembly with two
new O-rings, the two plate washers, spring washers
and two through bolts.
(e) Connect the lead wire to terminal C, and install the
spring washer and nut.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
