CO-6
COOLING SYSTEM Water Pump

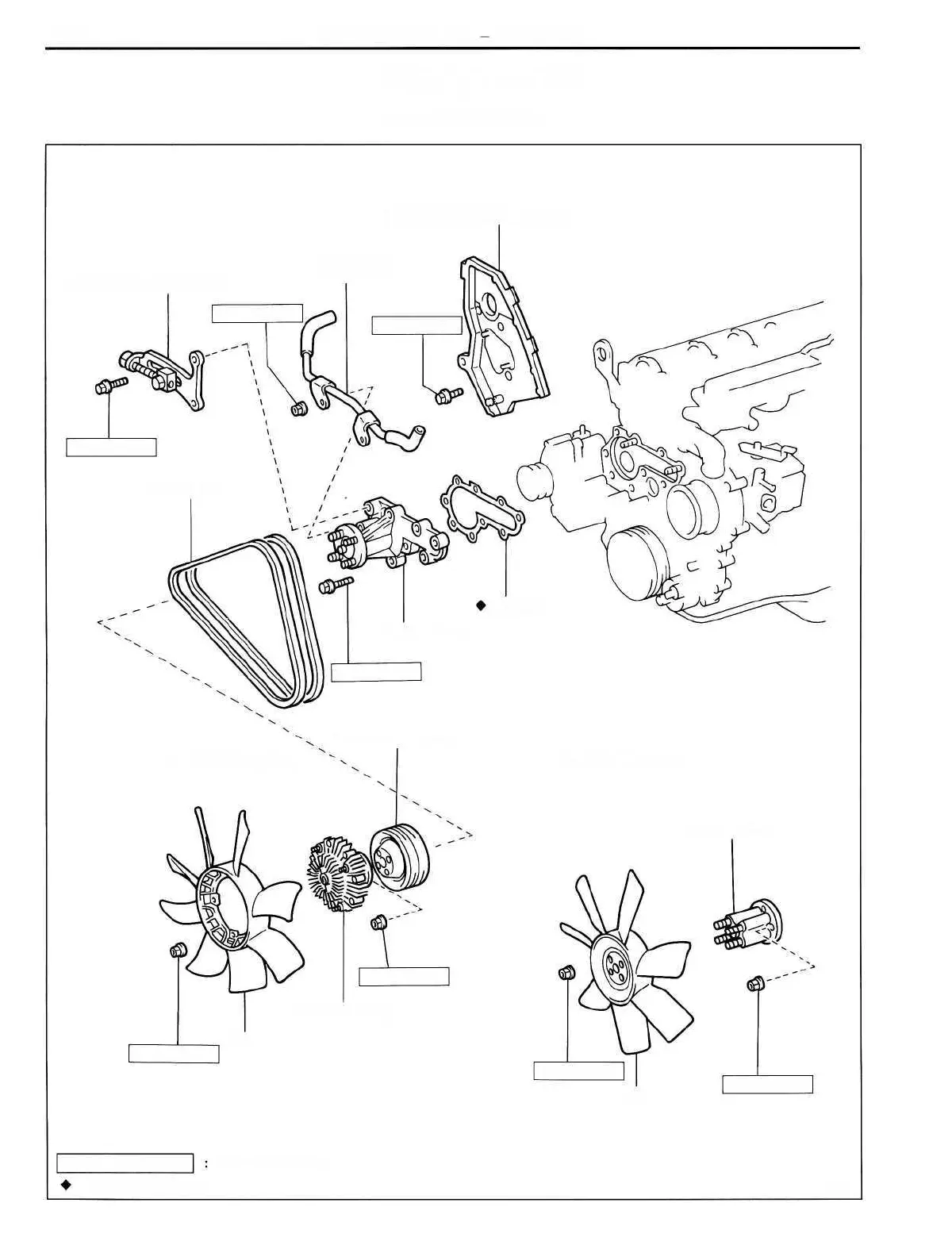

WATER PUMP
COMPONENTS
Camshaft Oil Seal Retainer
No.2 Turbo
Water Pipe
Alternator Adjusing Bar
200(14,20)
200(14,20)
400 (29, 39)
Drive Belt
Gasket
Water Pump
200(14,20)
Water Pump Pulley
w/o Fluid Coupling
Fan Spacer
w/ Fluid Coupling
200 (14,20)
Fluid Coupling
Fan
200(14,20)
200(14,20)
Fan
200(14,20)
Specified torque
Non-reusable part
CO0956
kg-cm (ft-lb, N-m)
