TURBOCHARGER SYSTEM - Turbocharger TC-15

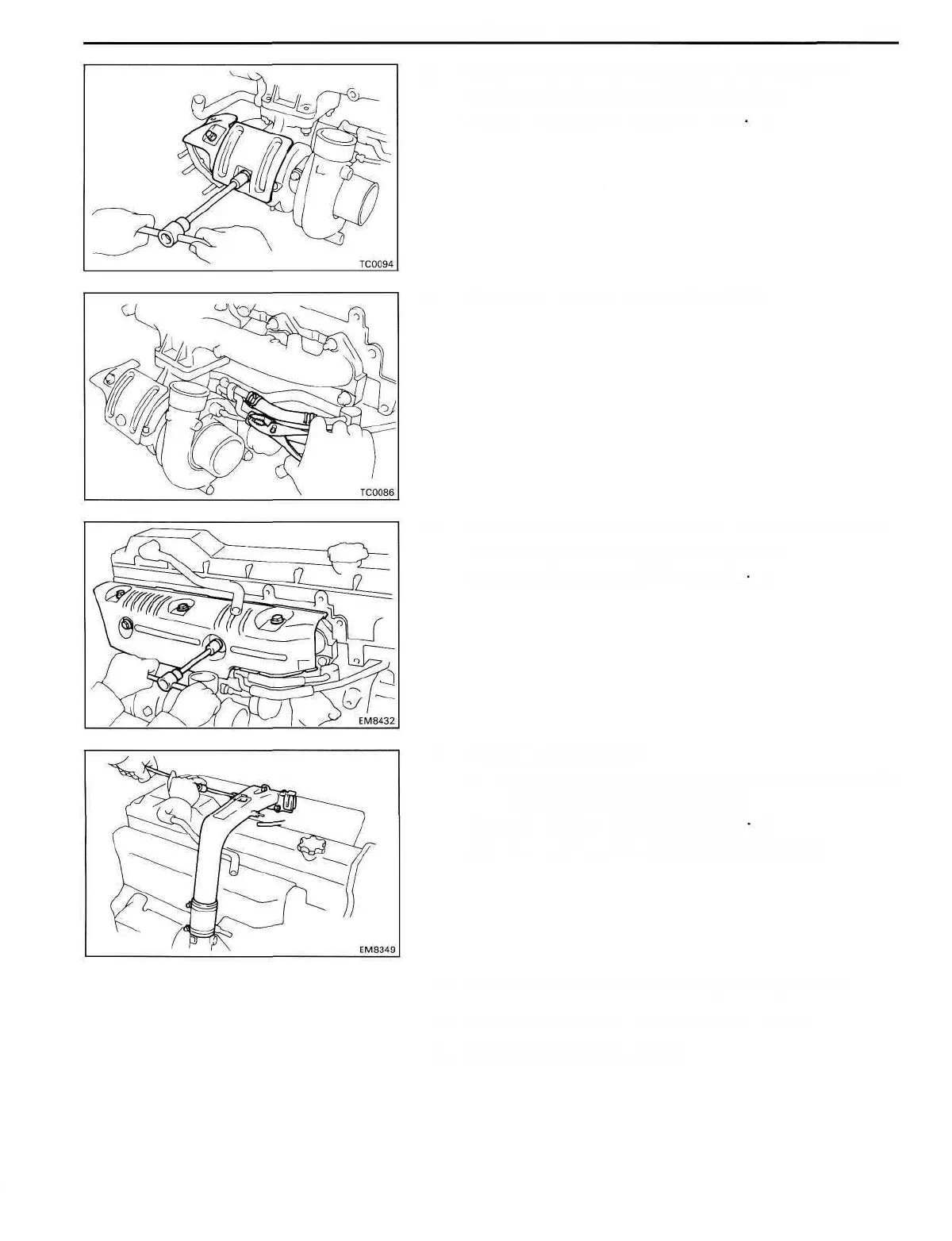

8. INSTALL TURBOCHARGER HEAT INSULATOR

Install the heat insulator with the two bolts.

Torque: 185 kg-cm (13 ft-lb, 18 Nm)

9. CONNECT WATER BY-PASS HOSES

10. INSTALL EXHAUST MANIFOLD HEAT INSULATOR

Install the heat insulator with the five bolts.

Torque: 185 kg-cm (13 ft-lb, 18 Nm)

11. INSTALL INTAKE PIPE

(a) Connect the air hose and install a new gasket and the

intake pipe with the three bolts.

Torque: 200 kg-cm (14 ft-lb, 20 Nm)

(b) Connect boost compensator vacuum hose.

12. FILL ENGINE WITH COOLANT (See page CO-5)

13. START ENGINE AND CHECK FOR LEAKS

14. CHECK ENGINE OIL LEVEL
