EM-35
ENGINE MECHANICAL Timing Belt

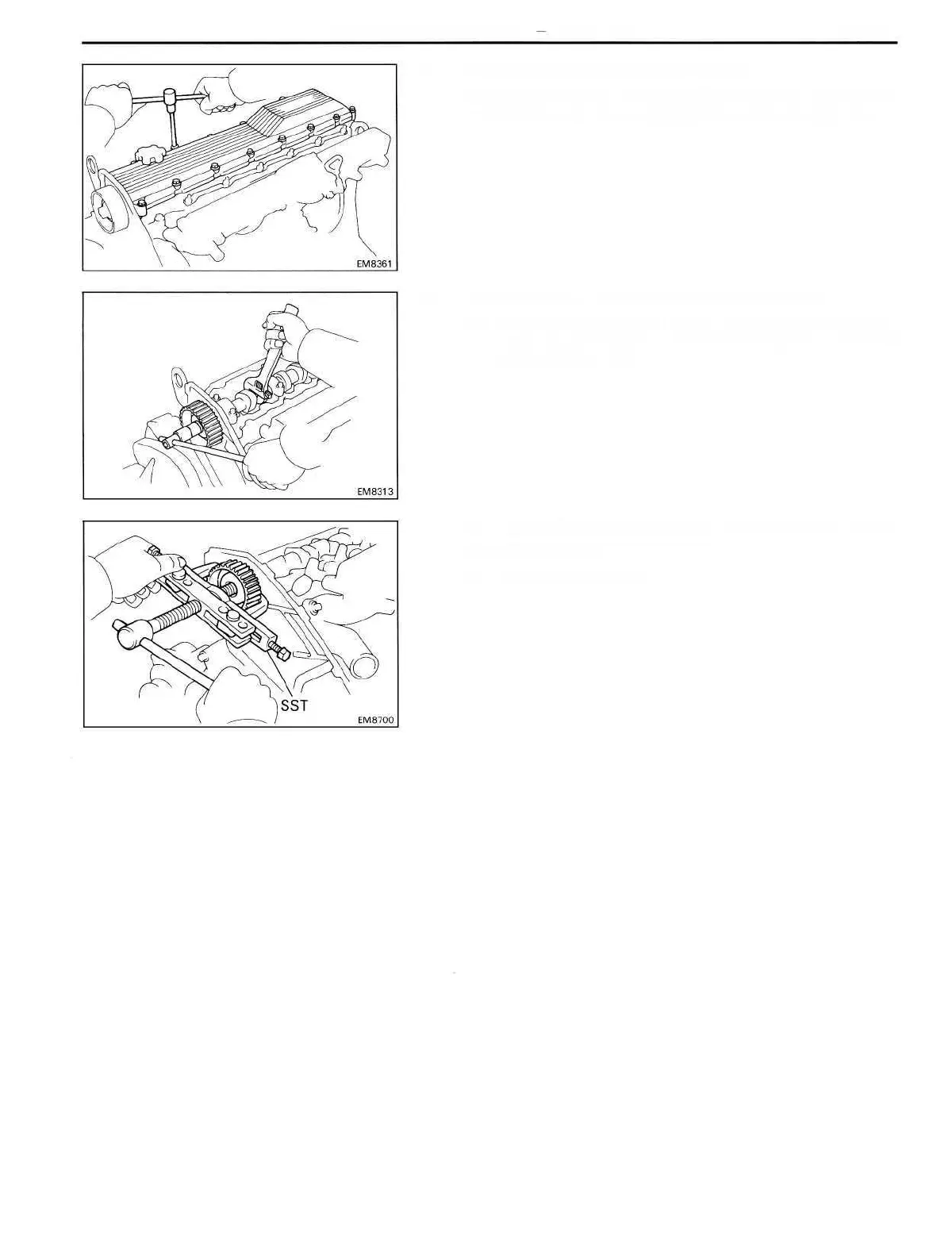

7. REMOVE CYLINDER HEAD COVER
Remove the twelve bolts (1PZ) or fourteen bolts (1HZ
and 1HD-T), two nuts, cylinder head cover and gasket.
8. REMOVE NO.1 CAMSHAFT TIMING PULLEY
(a) Hold the hexagonal wrench head portion of the cam-
shaft with a wrench, and remove the No.1 camshaft
timing pulley bolt.
(b) Using SST, remove the No.1 camshaft timing pulley.
SST 09950-20017
(c) Remove the set key.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
