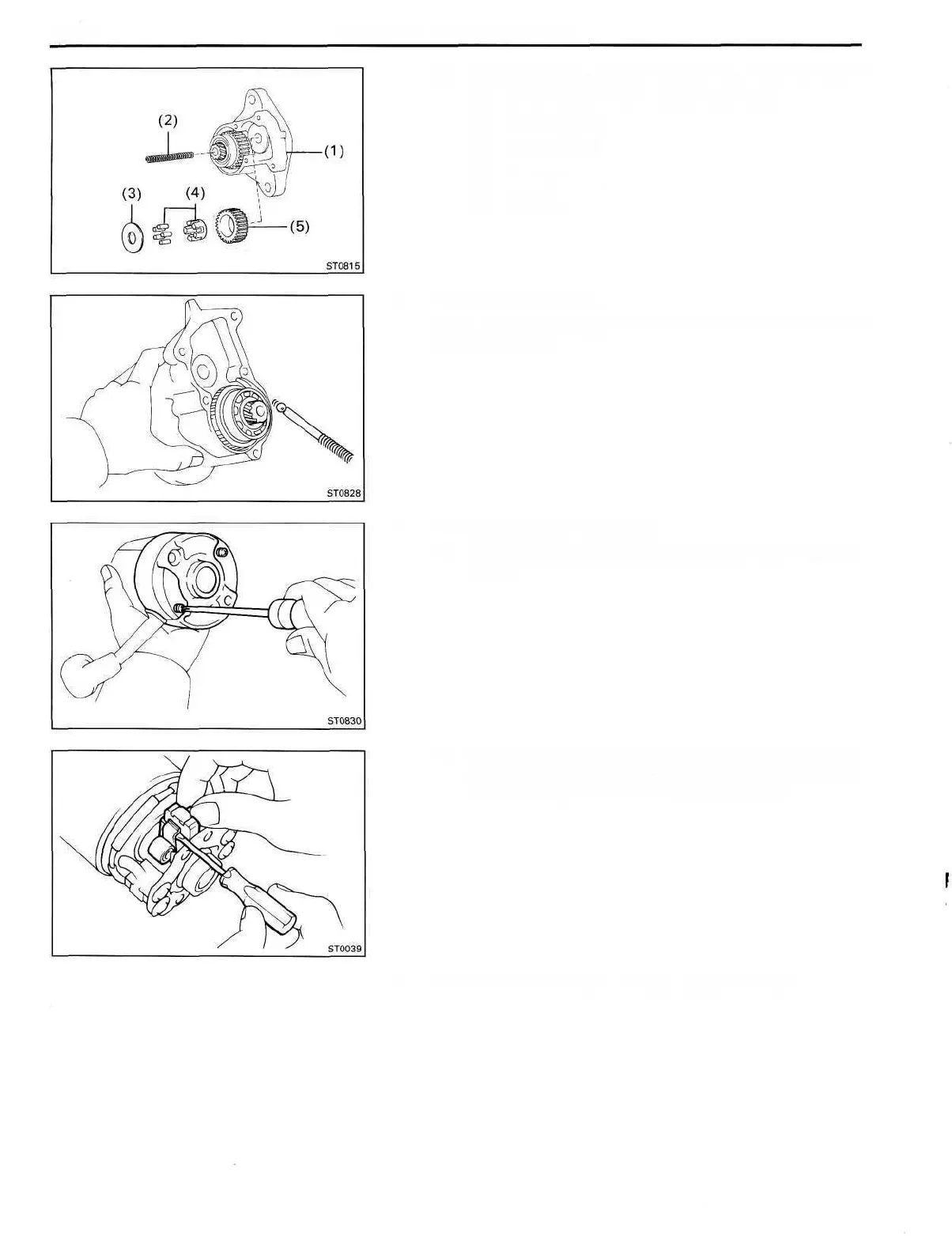

ST-16 STARTING SYSTEM - Starter

(b) Remove the following parts from the magnetic switch:

(1) Starter housing and clutch assembly

(2) Return spring

(3) Plate washer

(4) Idler gear

(5) Bearing

3. REMOVE STEEL BALL

Using a magnetic finger, remove the steel ball from the

clutch shaft hole.

4. REMOVE BRUSH HOLDER

(a) Remove the two screws and end cover from the field

frame.

(b) Using a screwdriver, hold the spring back and discon-

nect the brush from the brush holder. Disconnect the

four brushes, and remove the brush holder.

5. REMOVE ARMATURE FROM FIELD FRAME
