Toyota 1HZ Repair Manual

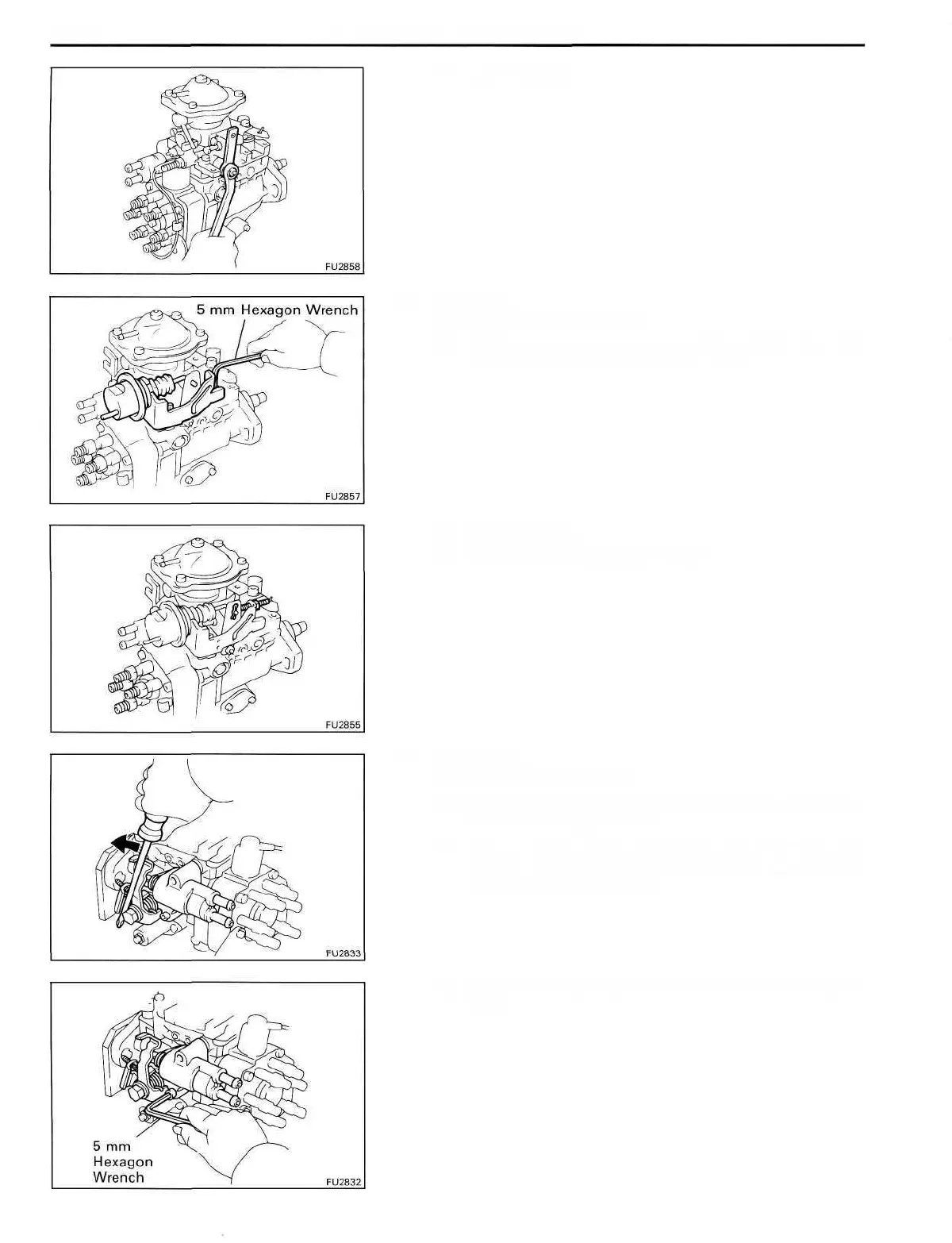

FU-68 FUEL SYSTEM - Injection Pump
(b) Install the nut.
35. (w/ PCS)
INSTALL PCS ACTUATOR
(a) Using a 5 mm hexagon wrench, install the PCS
actuator assembly with the two bolts.
(b) Install the clip.
(c) Install the PCS adjusting screw.
36. (w/ ACSD)
INSTALL THERMO WAX
(a) Using a screwdriver, turn the cold starting lever coun-
terclockwise approx. 20°.
(b) Put a metal plate (thickness of 3.5-7.5 mm
(0.138-0.295 in.)) between the cold starting lever
and thermo wax plunger.
(c) Install a new O-ring and the thermo wax with the two
bolts.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
