Toyota 1HZ Repair Manual

CH-16
CHARGING SYSTEM - Alternator

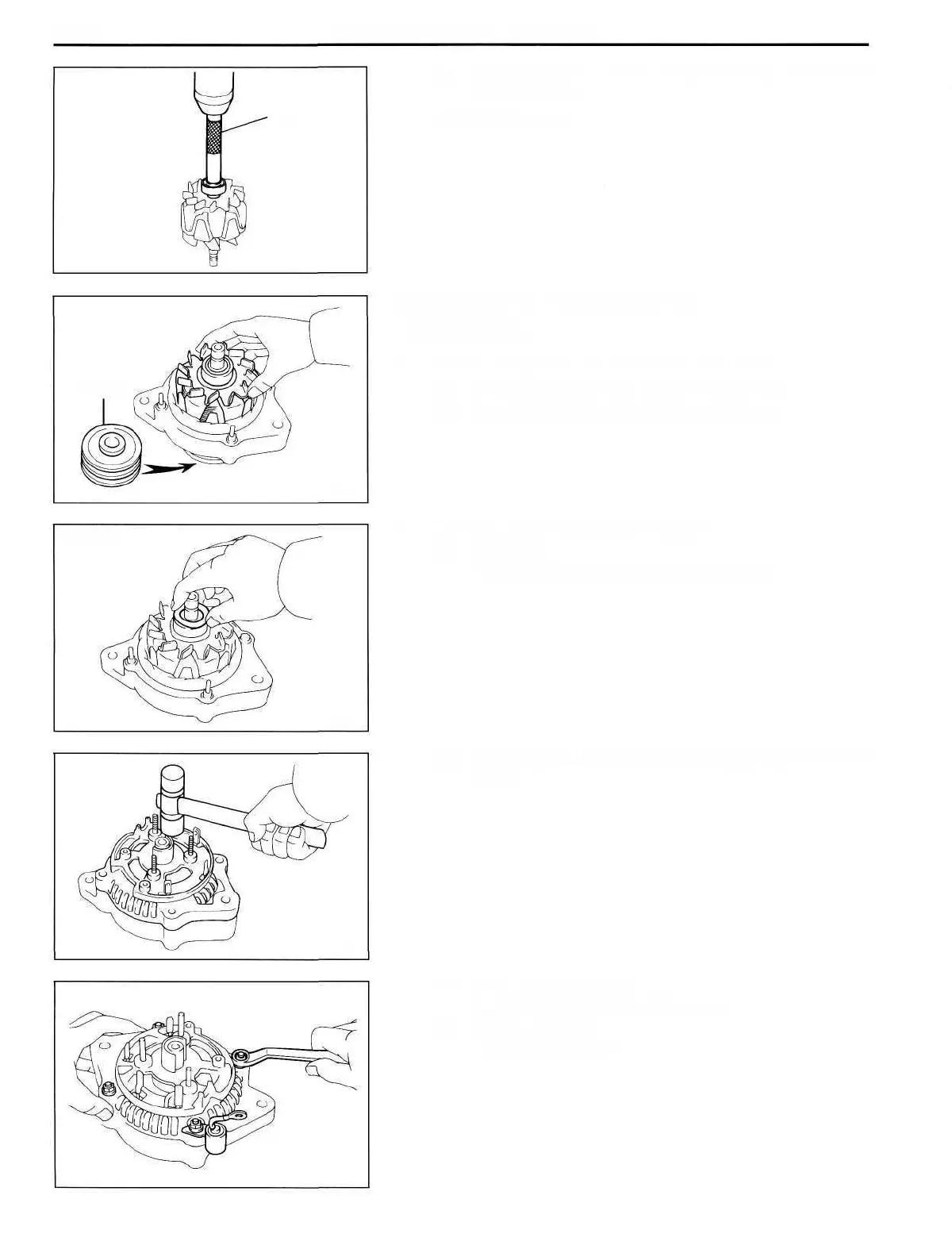

(b) Using SST and a press, press in a new bearing and
bearing cover.
SST 09285-76010
ASSEMBLY OF ALTERNATOR
(See page CH-8)
1. INSTALL ROTOR TO DRIVE END FRAME
(a) Place the rectifier end frame on the pulley.
(b) Install the rotor to the rectifier end frame.
2. INSTALL RECTIFIER END FRAME
(a) (Type A)
Place the alternator washer on the rotor.
(b) Using a plastic-faced hammer, lightly tap in the end
frame.
(c) (PZJ, HZJ and HDJ)
Install the codenser and four nuts.
(d) (HZBandHDB)
Install the four nuts.
SST
CH0201
Pulley
CH0850
Type A
CH0879
CH0871
CH0855

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
