Toyota 1HZ Repair Manual

EM-49
ENGINE MECHANICAL Timing Gears
REPLACEMENT OF INJECTION PUMP DRIVE
GEAR OIL SEAL
HINT: There are two methods (A and B) to replace the oil
seal as follows:

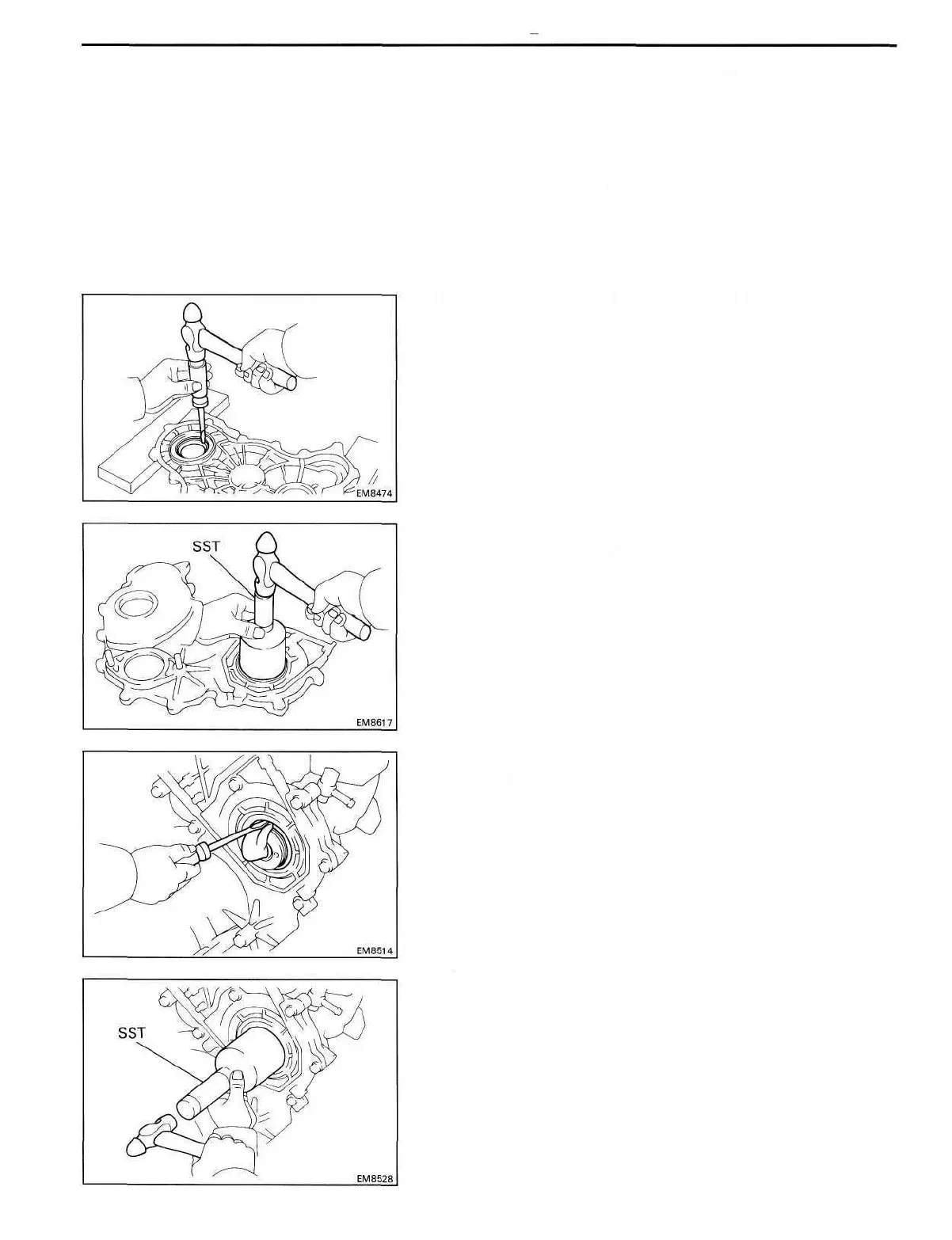

REPLACE INJECTION PUMP DRIVE GEAR OIL SEAL
A. If timing gear cover is removed from cylinder block:
(a) Using a screwdriver and hammer, tap out the oil seal.
(b) Using SST and a hammer, tap in a new oil seal until its
surface is flush with the timing gear cover edge.
SST 09214-76011
(c) Apply MP grease to the oil seal lip.
B. If timing gear cover is installed to the cylinder block:
(a) Using a screwdriver, pry out the oil seal.
NOTICE: Be careful not to damage the injection
pump drive gear. Tape the screwdriver tip.
(b) Apply MP grease to the oil seal lip.
(c) Using SST and a hammer, tap in a new oil seal until its
surface is flush with the timing gear cover edge.
SST 09214-76011
