Toyota 1HZ Repair Manual

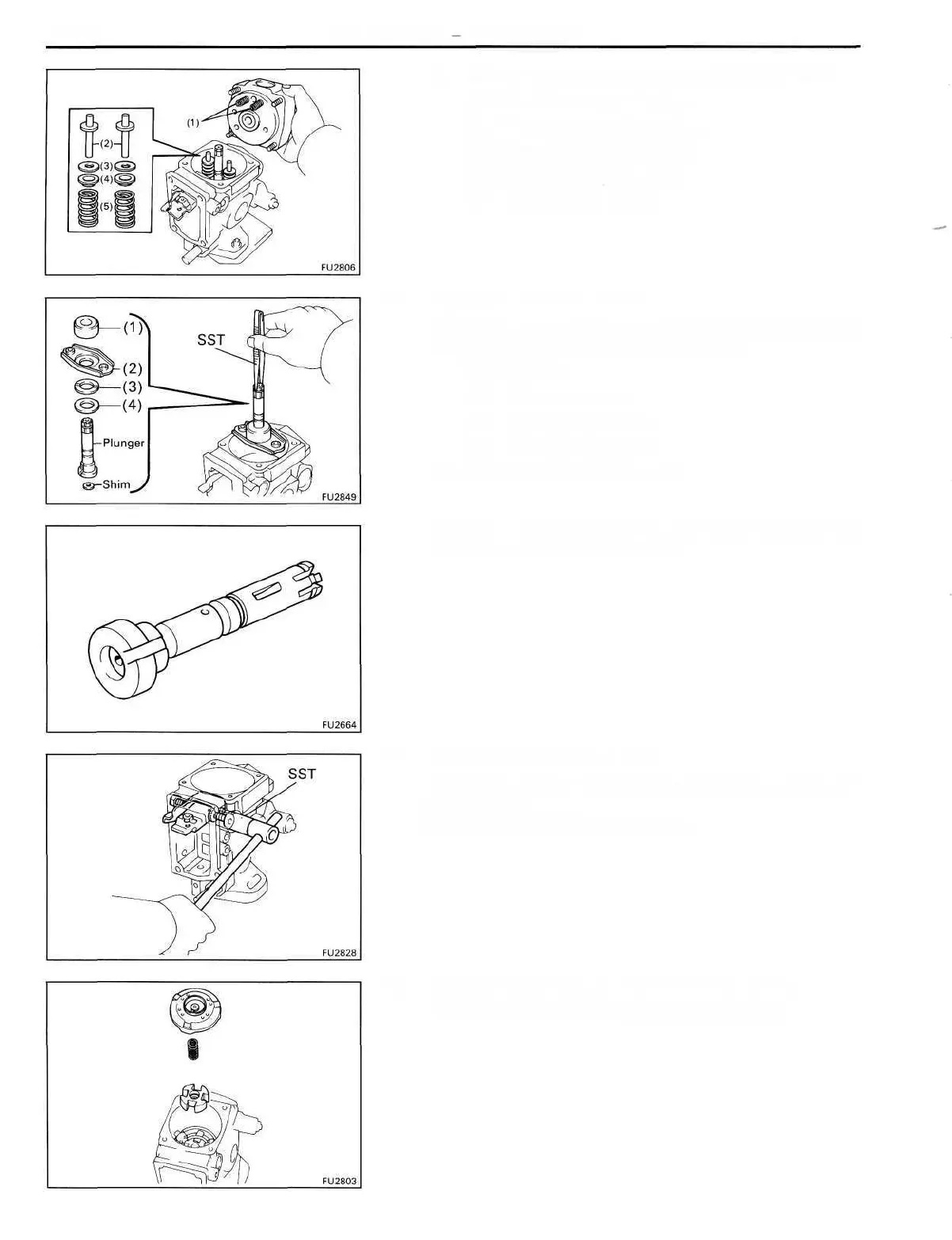

FU-42 FUEL SYSTEM Injection Pump
(b) Remove the distributive head and following parts:
(1) Two lever support springs
(2) Two plunger spring guides
(3) Two plunger spring shims
(4) Two upper spring seats
(5) Two plunger springs
23. REMOVE PUMP PLUNGER
Using SST, remove the pump plunger and plunger adjust-
ing shim together with the following parts:
(1) Spill ring
(2) Lower spring seat
(3) Upper plunger plate
(4) Lower plunger plate
SST 09260-54012 (09269-54030)
NOTICE: Do not touch the sliding surfaces of the
pump plunger with your hand.
24. REMOVE GOVERNOR LINK
Using SST, remove the two support bolts, gaskets and
governor link.
SST 09260-54012 (09269-54040)
25. REMOVE FACE CAMPLATE AND COUPLING
Remove the face camplate, spring and coupling.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
