Toyota 1HZ Repair Manual

C-2 SST AND SSM - SST (Special Service Tools)

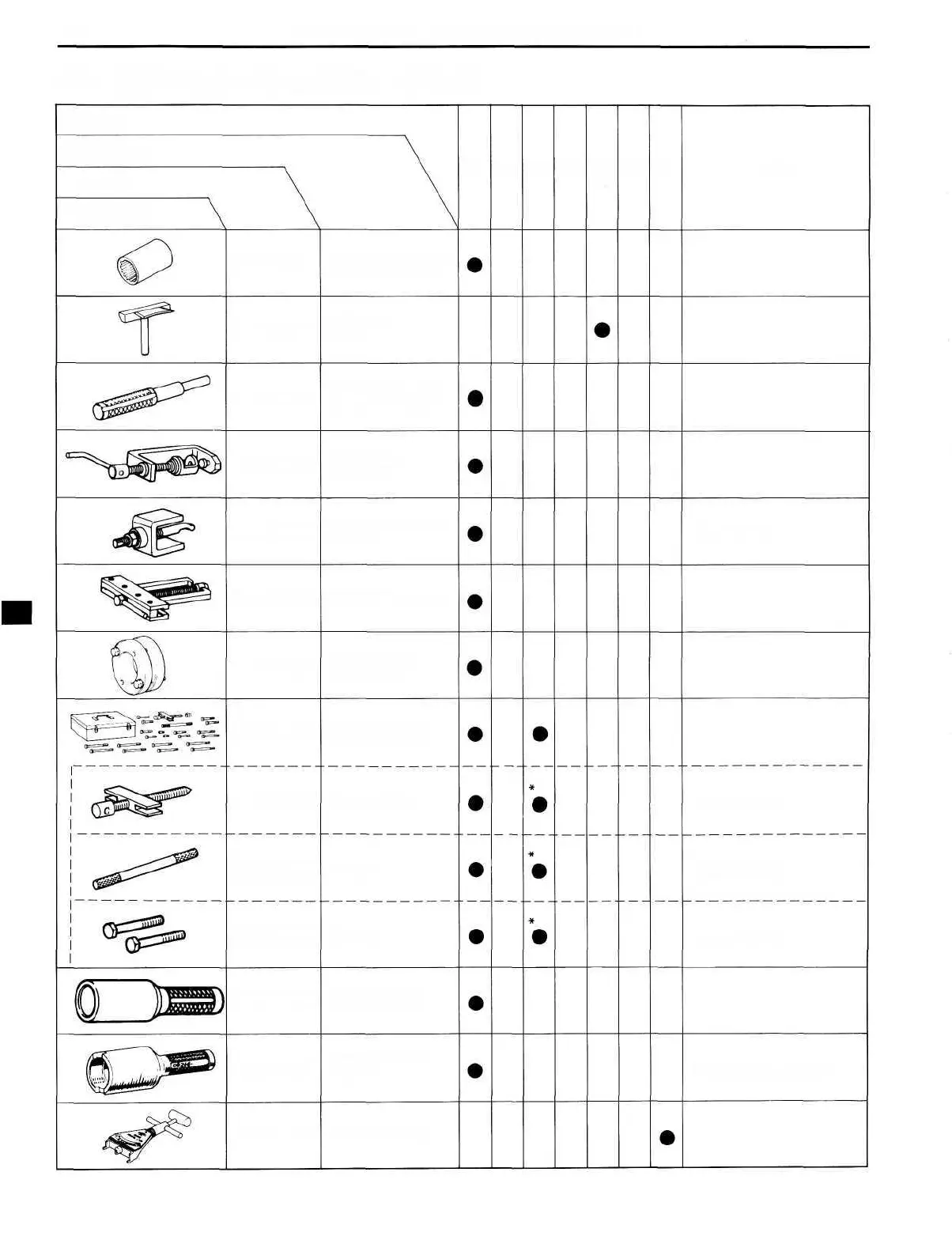

SST (SPECIAL SERVICE TOOLS)
Section
Part Name
Part No.
Illustration
EM
TC
FU
CO
LU
ST CH Note
09011-38121
1 2 mm Socket Wrench
for 1 2 Pointed Head
09032-00100
Oil Pan Seal
Cutter
09201-60011
Valve Guide Bushing
Remover & Replacer
09202-43013
Valve Spring
Compressor
09208-48010
Combustion Chamber
Remover
09213-36020
Timing Gear Remover
09213-58011
Crankshaft Pulley
Holding Tool
09213-60017
Crankshaft Pulley
& Gear Puller Set
(09213-00020)
(Body with Bolt)
(09213-00030) (Handle)
(09213-00060)
(Bolt Set)
09214-60010
Crankshaft Pulley
& Gear Replacer
09214-76011
Crankshaft Pulley
Replacer
09216-00020
Belt Tension Gauge
IPZand 1HZ
Injection pump
Injection pump
Injection pump
Pump drive gear oil seal

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
