Toyota 1HZ Repair Manual

EM-22
ENGINE MECHANICAL - Engine Tune-Up

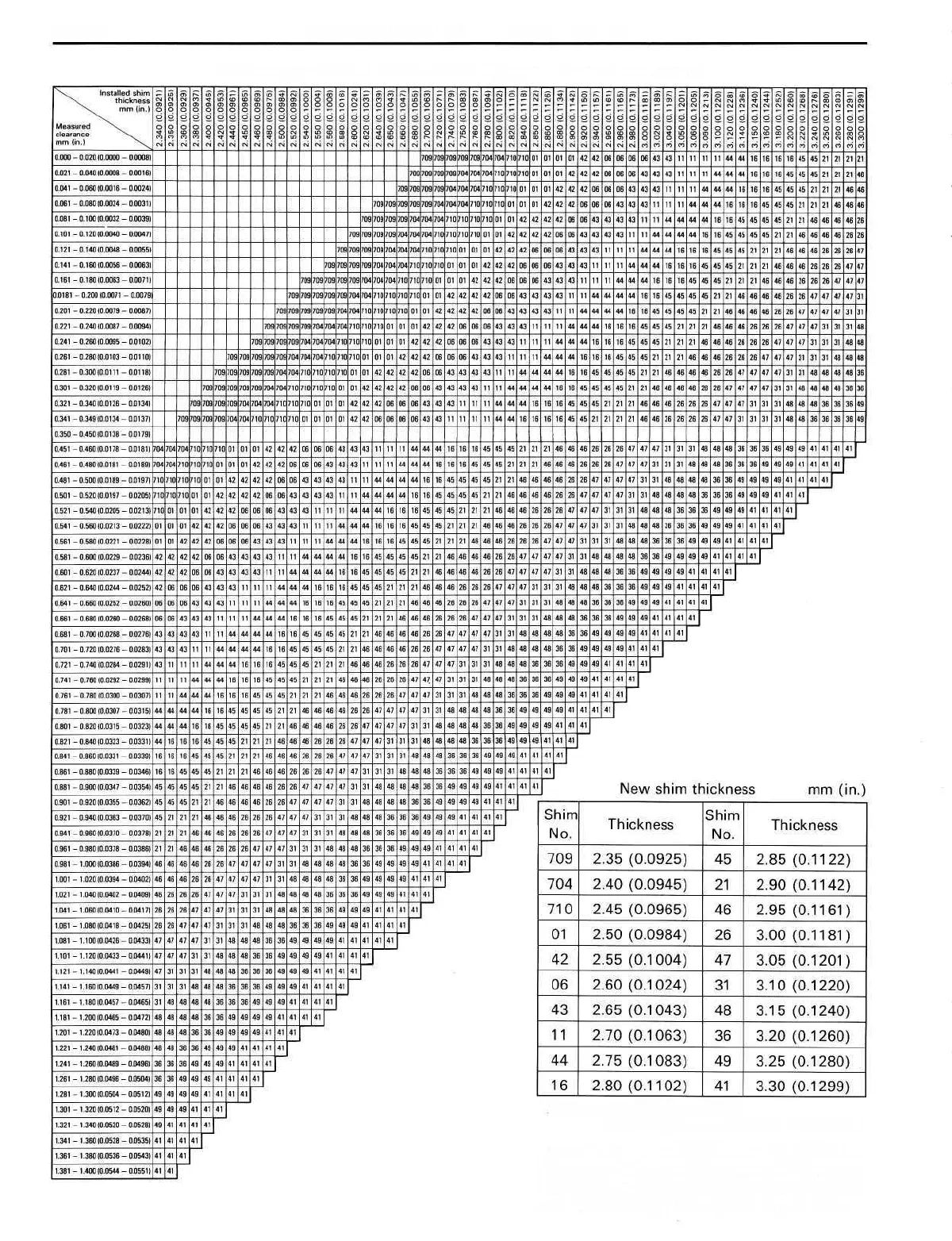

Adjusting Shim Selection Using Chart (Exhaust)
Exhaust valve clearance:
0.35-0.45 mm (0.014-0.018 in.)
EXAMPLE: The 2.800 mm (0.1102 in.)
shim is installed and the measured clearance
is 0.300 mm (0.0118 in.). Replace the 2.800
mm (0.1102 in.) shim with a No.11 shim.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
