CH-3
CHARGING SYSTEM - Charging System Circuit

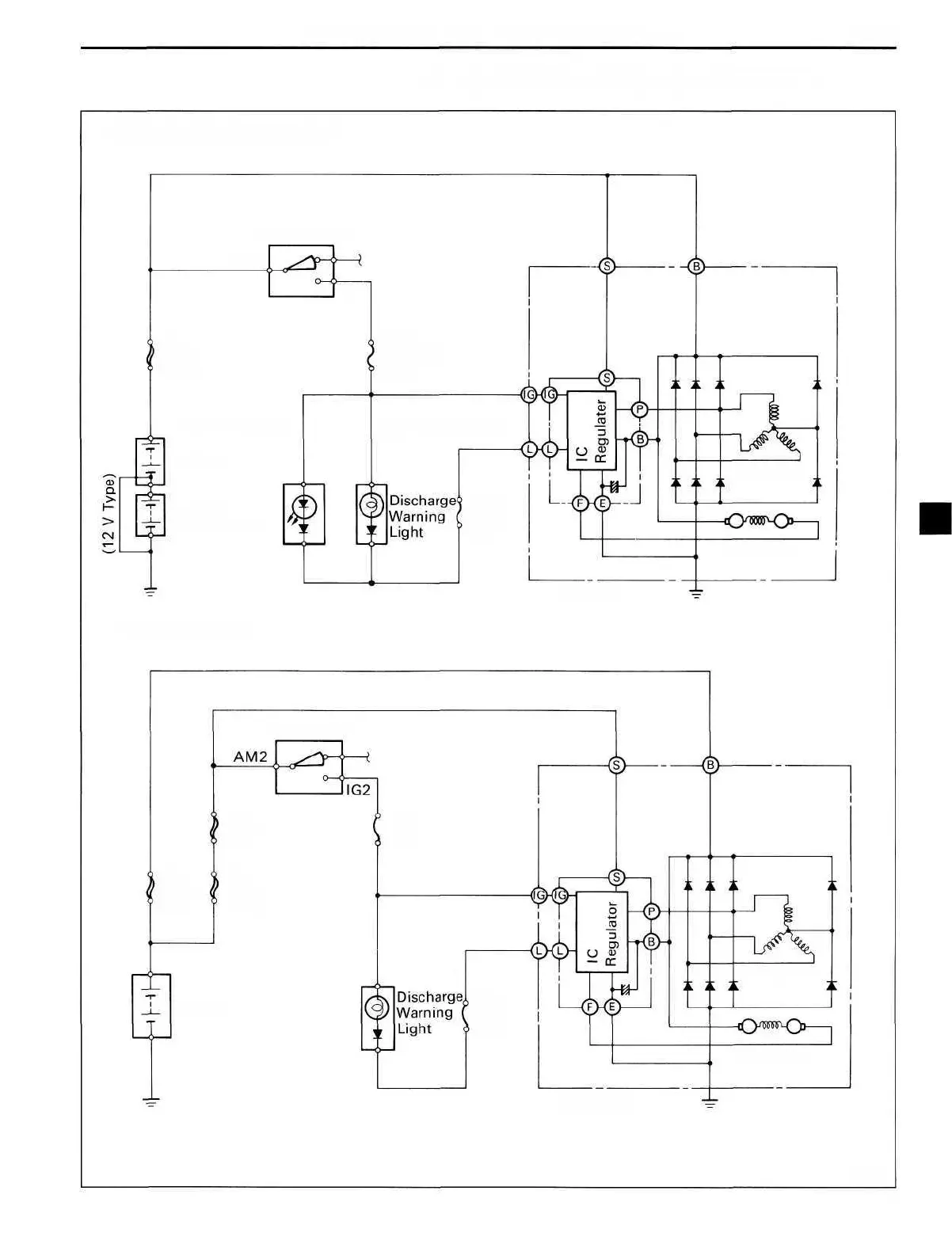

CHARGING SYSTEM CIRCUIT
ST0884
ST0883
PZJ 70, 73, 75 and HZJ 70, 73, 75
Starter Switch
AM
Fuse
ENGINE
15A
IG
FL
AM1
1.25B
(w/ Tachometer)
Battery
(w/o Tachometer)
Stator Coil
Battery
(24 V Type)
Rotor Coil
Alternator
Fuse
CHG
7.5A
HZJ 80 and HDJ 80
Starter Switch
Fuse
IGN
7.5A
FL
AM1
50A
FL
AM1
1.25B
FL
MAIN
2.0L
Battery
Alternator
Rotor Coil
Stator Coil
Fuse
CHG
7.5A

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Toyota 1HZ and is the answer not in the manual?

Toyota 1HZ Specifications

General IconGeneral
Fuel TypeDiesel
Maximum Power96 kW (129 hp) at 3800 rpm
Firing Order1-5-3-6-2-4
AspirationNaturally aspirated
Fuel SystemDirect injection
Cooling SystemWater-cooled
Displacement4.2 L (4164 cc)
Maximum Torque285 N·m (210 lb·ft) at 2200 rpm
ValvetrainSOHC, 12 valves (2 per cylinder)
