Toyota 1HZ Repair Manual

EM-41
ENGINE MECHANICAL - Timing Belt
9. INSTALL TIMING BELT COVER
(a) Remove any old packing (FIPG) material.

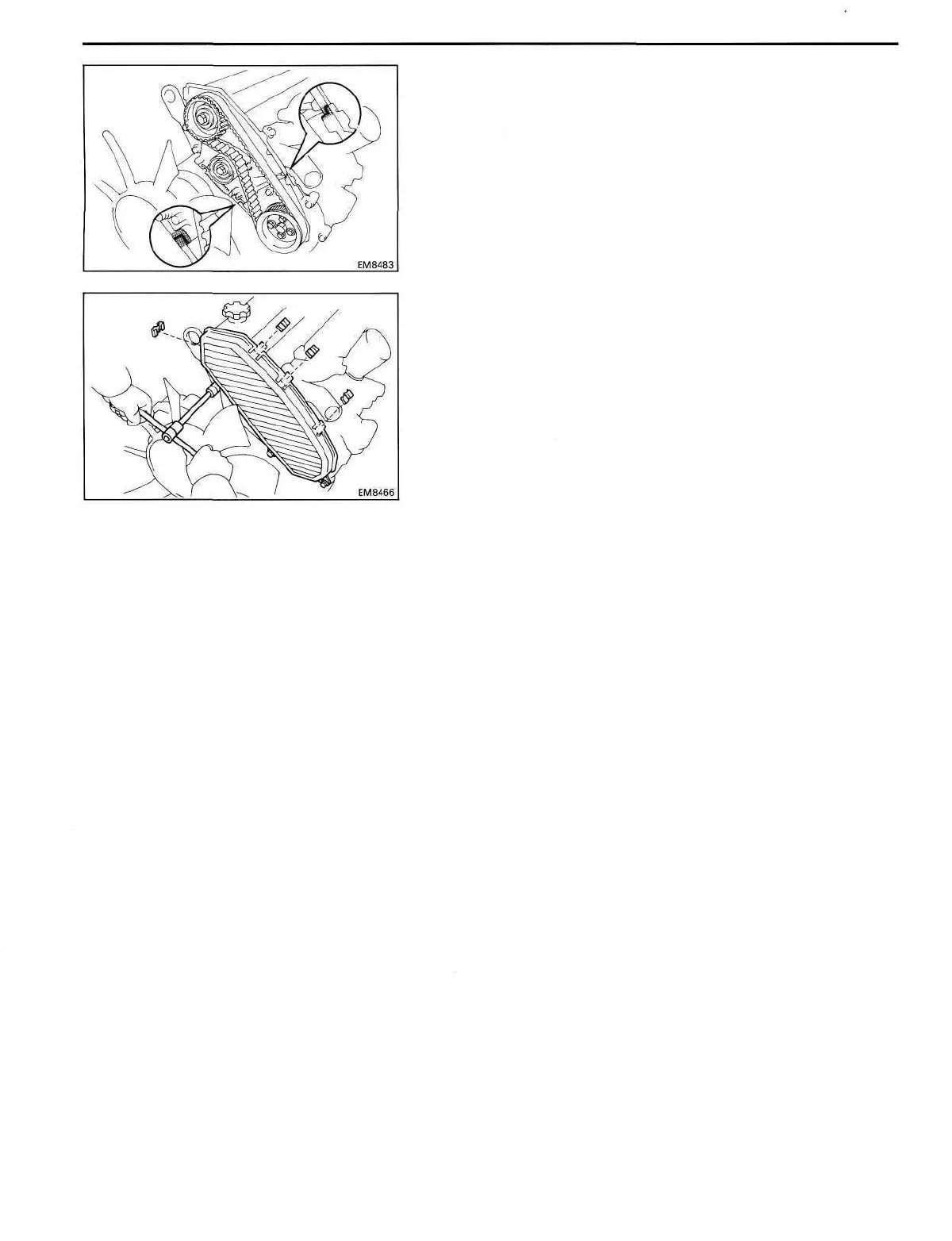

(b) Apply seal packing to the camshaft oil seal retainer
and timing gear cover as shown in the illustration.
Seal packing: Part No.08826-00080 or equivalent
(c) Install the gasket to the timing belt cover.
(d) Install the timing belt cover with the three seal wash-
ers, three bolts and four clips.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
