Toyota 1HZ Repair Manual

CO-9
COOLING SYSTEM - Water Pump
CO0957
5. INSTALL WATER PUMP PULLEY, FAN AND DRIVE
BELT

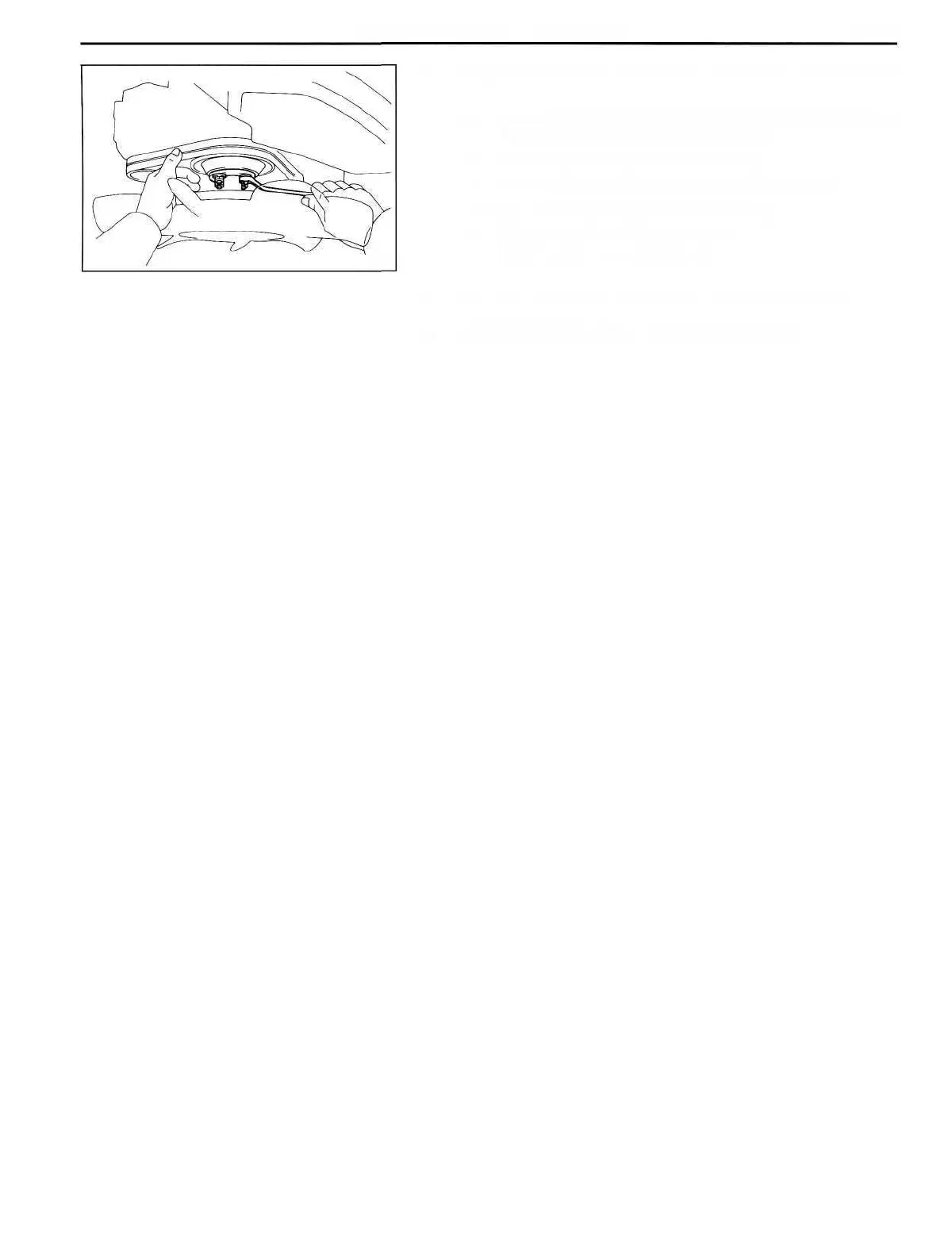

(a) Install the pump pulley, the fluid fan and coupling (fan
spacer) assembly with the four nuts.
(b) Place the drive belt on each pulley.
(c) Stretch the belt tight and torque the four nuts.
Torque: 200 kg-cm (14 ft-lb, 20 N-m)
(d) Adjust the drive belt deflection.
(See step 3 on page CH-5)
6. FILL WITH ENGINE COOLANT (See page CO-5)
7. START ENGINE AND CHECK FOR LEAKS

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
