Toyota 1HZ Repair Manual

TC-14 TURBOCHARGER SYSTEM - Turbocharger

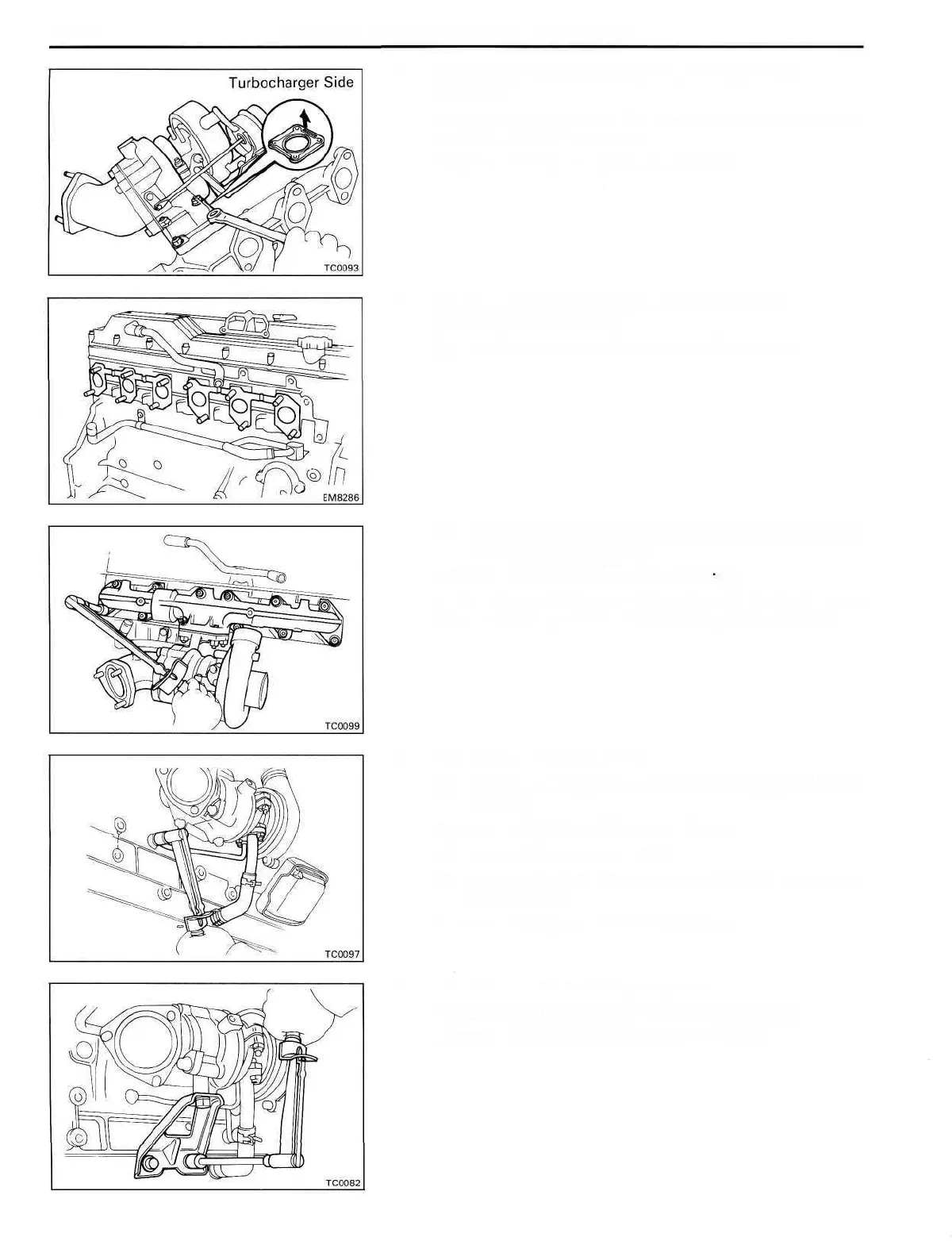

4. ASSEMBLE TURBOCHARGER AND EXHAUST
MANIFOLD
Install a new gasket and the turbocharger to the exhaust
manifold with the four nuts.
Torque: 530 kg-cm (38 ft-lb, 52 N-m)
5. INSTALL TURBOCHARGER AND EXHAUST
MANIFOLD ASSEMBLY
(a) Install two new gaskets to the cylinder head.
(b) Install the turbocharger and exhaust manifold assem-
bly with the twelve nuts.
Torque: 400 kg-cm (29 ft-lb, 39 N m)
HINT: Apply 330 kg-cm (24 ft-lb, 32 N-m) of torque
when performing additional tightening of loosed nuts.
6. INSTALL TURBO OIL PIPE
(a) Install a new gasket and the turbo oil pipe w;th the
two nuts.
Torque: 185 kg-cm (13 ft-lb, 18 N-m)
(b) Connect the turbo oil hose.
(c) Install two new gaskets and the union bolt of the
turbo oil pipe.
Torque: 250 kg-cm (18 ft-lb, 25 N-m)
7. INSTALL TURBOCHARGER STAY
Install the turbocharger stay with the three bolts.
Torque: 1,200 kg-cm (87 ft-lb, 118 N-m)

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
