Toyota 1HZ Repair Manual

FUEL SYSTEM - Injection Pump FU-67

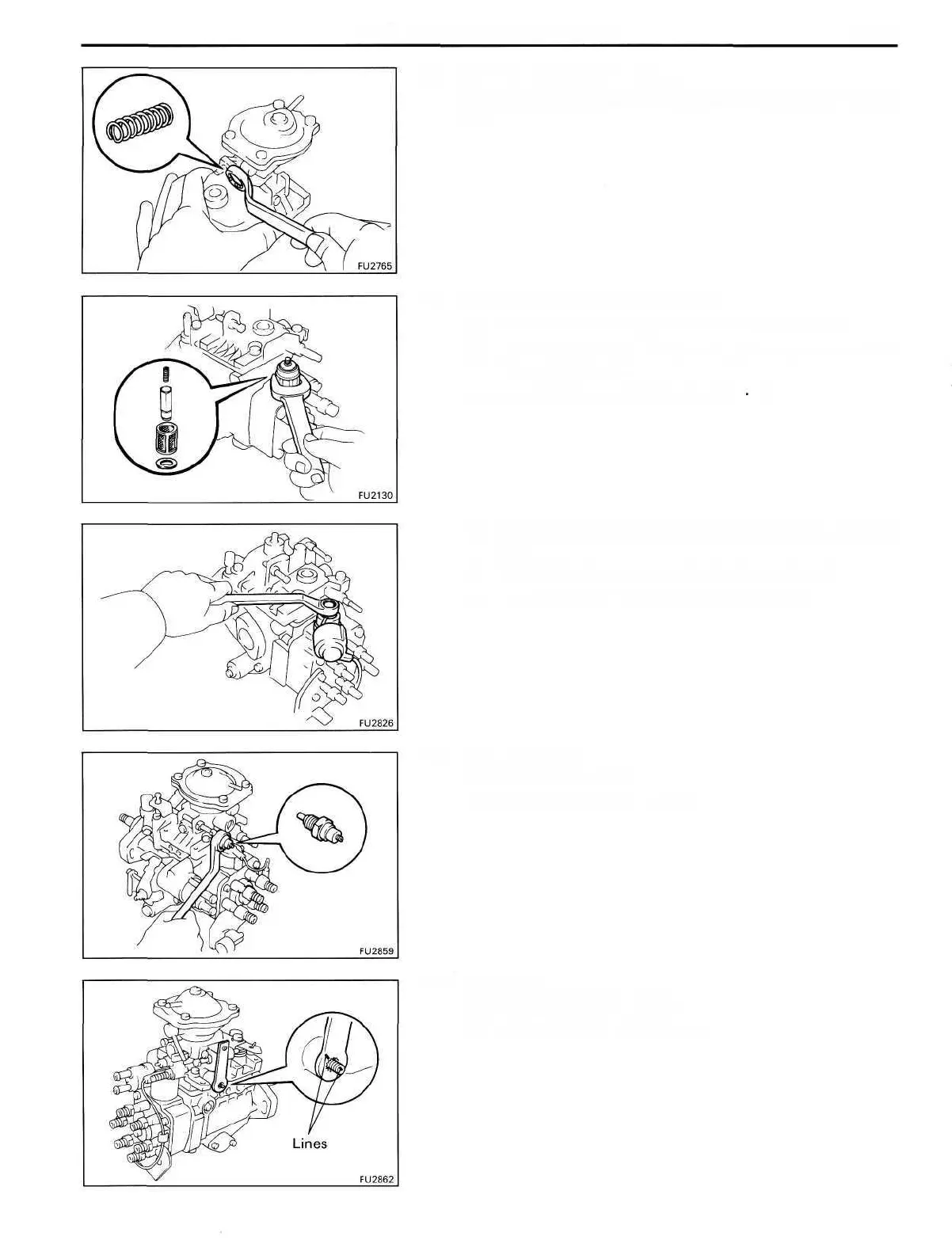

C. Install lever control spring
Install the lever control spring with a new gasket and the
bolt.
32. INSTALL FUEL CUT SOLENOID
(a) Install a new O-ring on the fuel cut solenoid.
(b) Install the strainer, valve, spring, a new gasket and the
fuel cut solenoid.
Torque: 225 kg-cm (16 ft-lb, 22 Nm)
(c) Install the lead wire to the fuel cut solenoid with the
nut.
(d) Install the dust cover to the fuel cut solenoid.
(e) Install the lead wire connector to bracket.
33. (w/ Dash Pot)
INSTALL DASH POT
Install the dash pot and gasket.
34. (w/ PCS)
INSTALL NO.1 PCS LEVER
(a) Align the lines of the levers.
