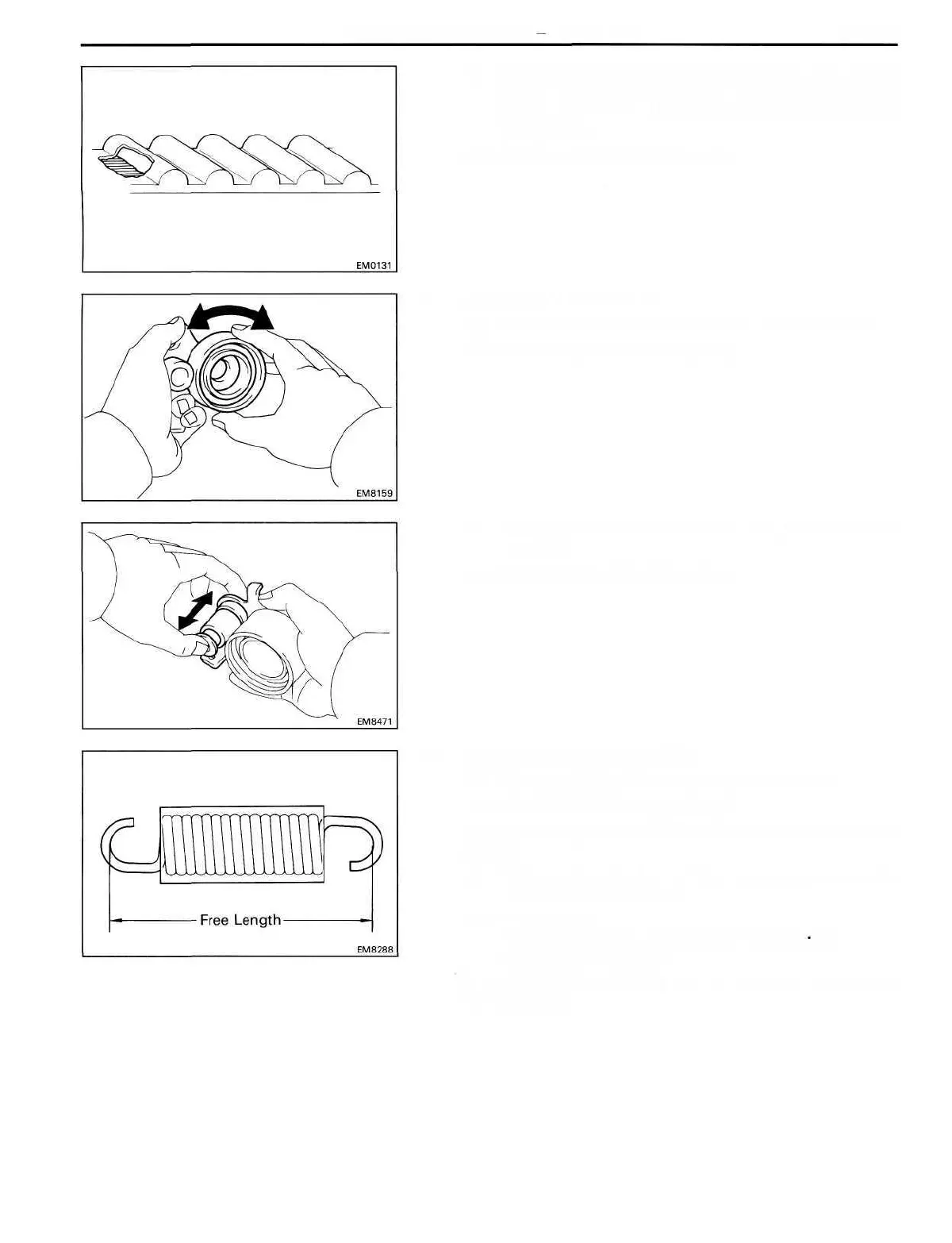

EM-37

ENGINE MECHANICAL Timing Belt

(e) If there is noticeable wear on the belt teeth, check

timing belt cover for damage and check for correct

gasket installation. Check for foreign material on the

pulley teeth.

If necessary, replace the timing belt.

2. INSPECT IDLER PULLEY

(a) Check the turning smoothness of the idler pulley.

If necessary, replace the idler pulley.

(b) Check that the idler pulley and the pulley bolt slide

smoothly.

If necessary, replace the idler pulley.

3. INSPECT TENSION SPRING

(a) Measure the free length of the tension spring.

Free length: 72.7 mm (2.862 in.)

If the free length is not as specified, replace the tension

spring.

(b) Measure the tension of the tension spring at the

specified installed length.

Installed tension:

23-28 kg (50.7-61.7 Ib, 225-275 Nm)

at 90.1 mm (3.547 in.)

If the installed tension is not as specified, replace the

tension spring.
