ENGINE MECHANICAL - Timing Gears

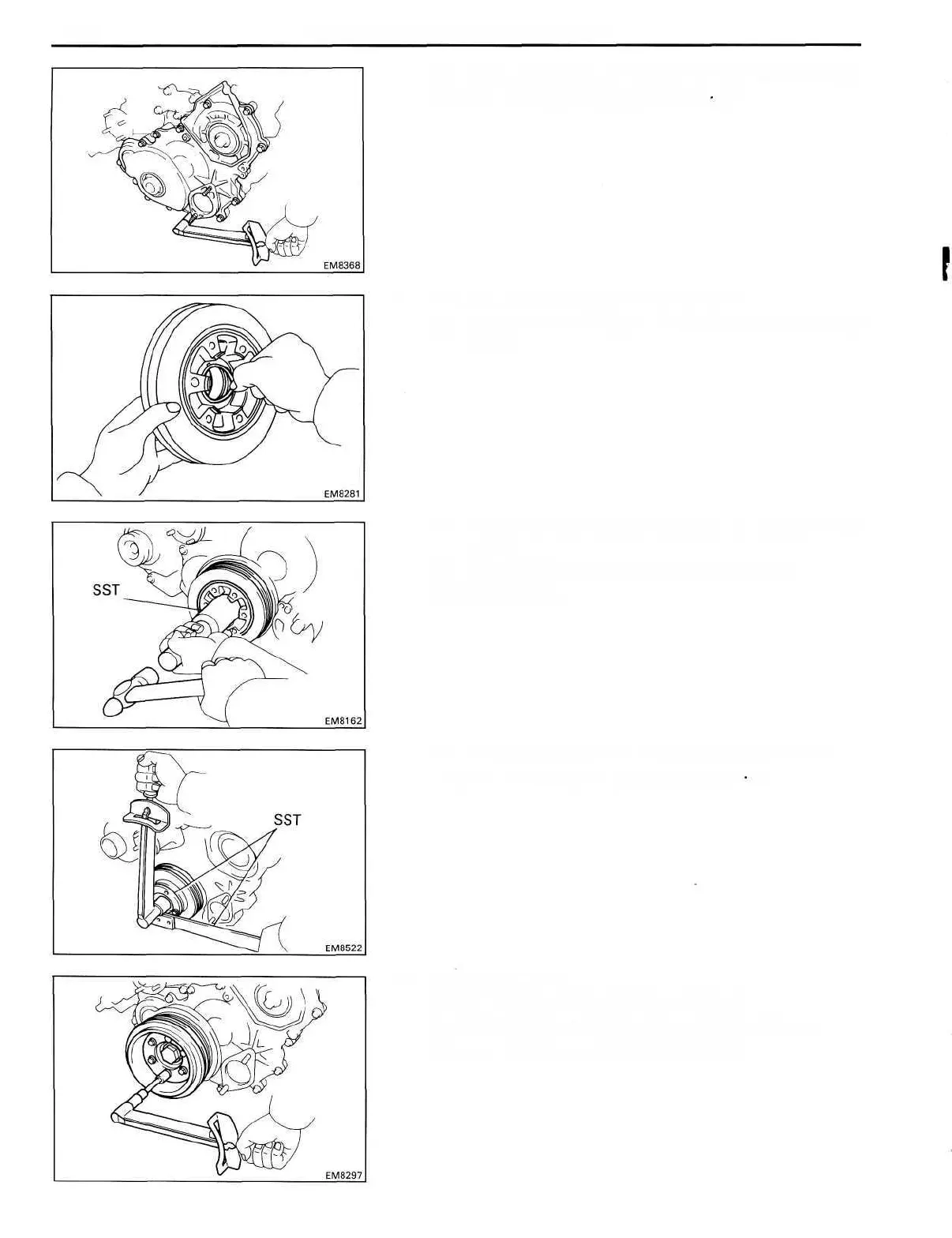

(c) Install the timing gear cover with the fourteen bolts.
Torque: 200 kg-cm (14 ft-lb, 20 N m)
6. INSTALL NO.1 CRANKSHAFT PULLEY
(a) Install a new O-ring in the No.1 crankshaft pulley
groove.
(b) Align the pulley set key with the key groove of the
pulley.
(c) Using SST and a hammer, tap in the pulley.
SST 09214-60010
(d) Using SST, install and torque the plate and bolt.
Torque: 5,000 kg-cm (362 ft-lb, 490 N m)
7. (1HZand1HD-T)
INSTALL NO.2 CRANKSHAFT PULLEY
Install the No.2 crankshaft pulley with the six bolts.
Torque: 250 kg-cm (18 ft-lb, 25 N-m)

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
