Toyota 1HZ Repair Manual

EM-92
ENGINE MECHANICAL - Cylinder Block
(Reference) (Cont'd)
Standard sized bearing center wall thickness:
Mark "2" 1.979-1.982 mm
(0.0779-0.0780 in.)
Mark "3" 1.982 -1.985 mm
(0.0780-0.0781 in.)
Mark "4" 1.985 -1.988 mm
(0.0781-0.0783 in.)
Mark "5" 1.988-1.991 mm
(0.0783-0.0784 in.)
Mark "6" 1.991 -1.994 mm
(0.0784-0.0785 in.)
(I) Completely remove the Plastigage.

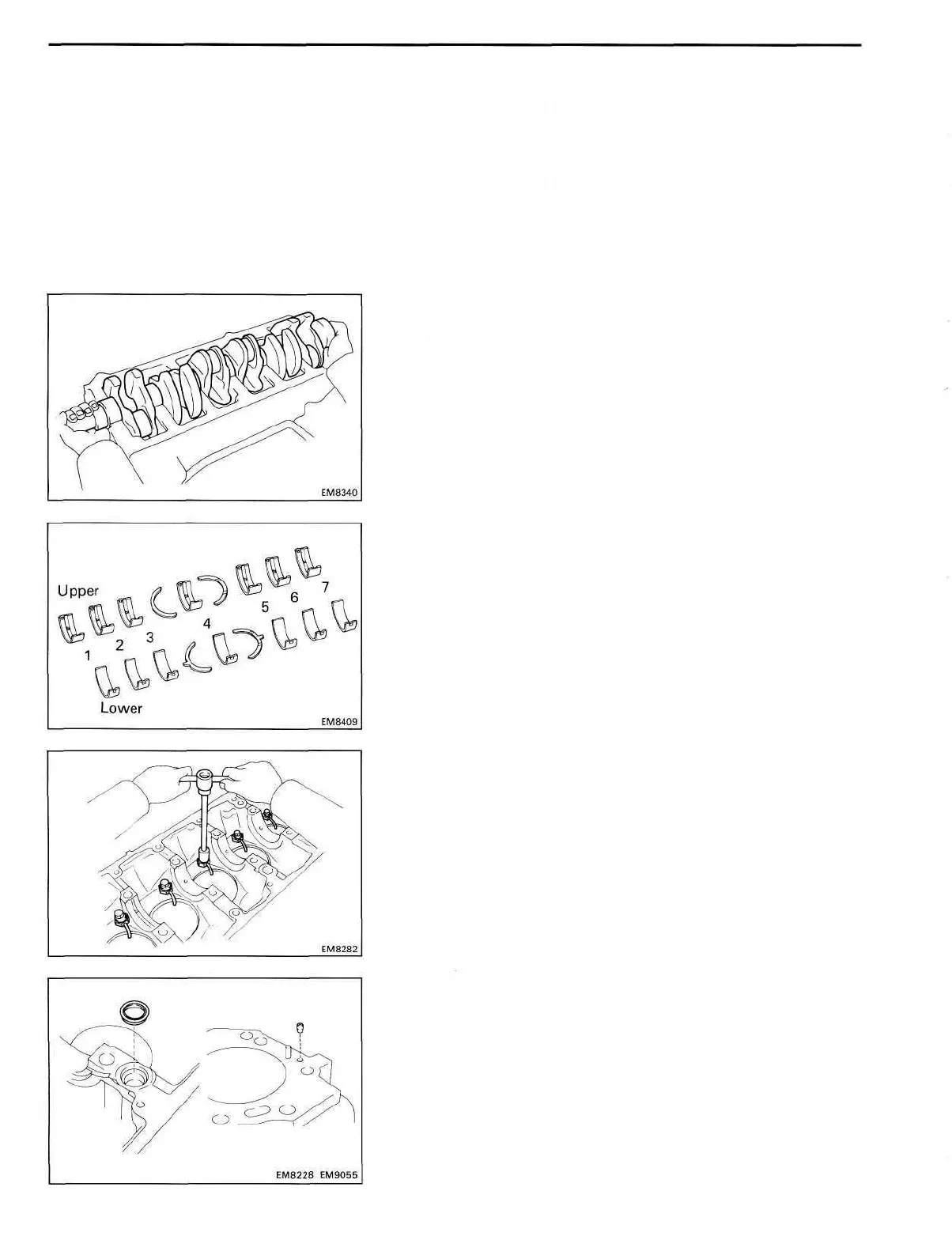

7. REMOVE CRANKSHAFT
(a) Lift out the crankshaft.
(b) Remove the upper main bearings and thrust washers
from the cylinder block.
HINT: Arrange the main bearings and thrust washers in
correct order.
8. REMOVE CHECK VALVES AND OIL NOZZLES
Remove the five (1 PZ) or six (1 HZ and 1HD-T) check
valves and oil nozzles.
9. REMOVE CYLINDER BLOCK OIL HOLE GASKET
10. REMOVE CYLINDER BLOCK ORIFICE

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
