EM-36

ENGINE MECHANICAL - Timing Belt

INSPECTION OF TIMING BELT COMPONENTS

1. INSPECT TIMING BELT

NOTICE:

• Do not bend, twist or turn the timing belt inside out.

• Do not allow the timing belt to come into contact

with oil, water or steam.

• Do not utilize timing belt tension when installing or

removing the mount bolt of the camshaft timing

pulley.

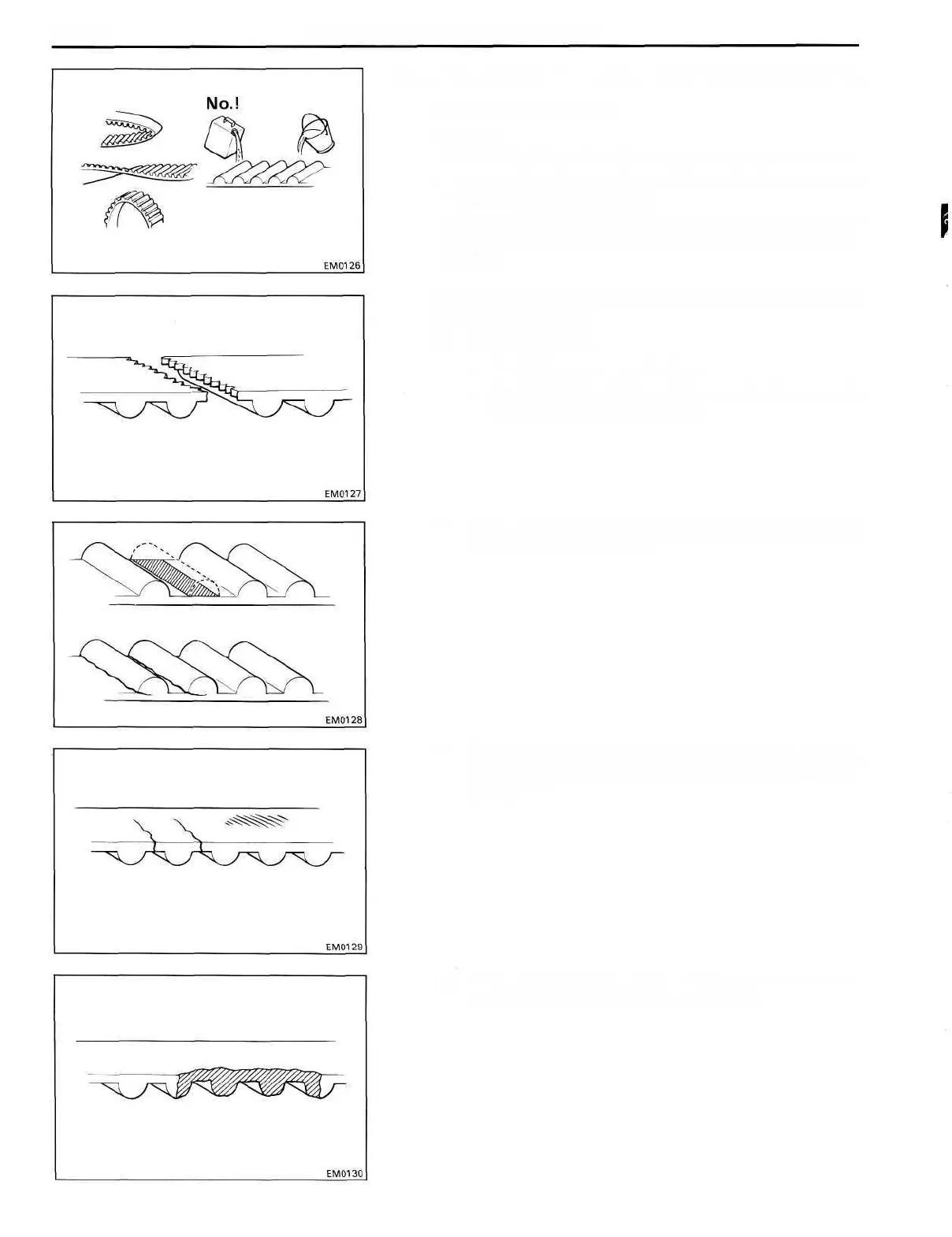

If there are any defects as shown in the illustration, check

the following points:

(a) Premature parting

• Check for proper installation.

• Check the timing belt cover gasket for damage and,

check for proper installation.

(b) If the belt teeth are cracked or damaged, check to see

if the camshaft is locked.

check to see if there are nicks on one side of the idler

pulley lock.

(d) If there is wear or damage on only one side of the belt,

check the alignment of the each pulley.
