EM-83
ENGINE MECHANICAL - Cylinder Head

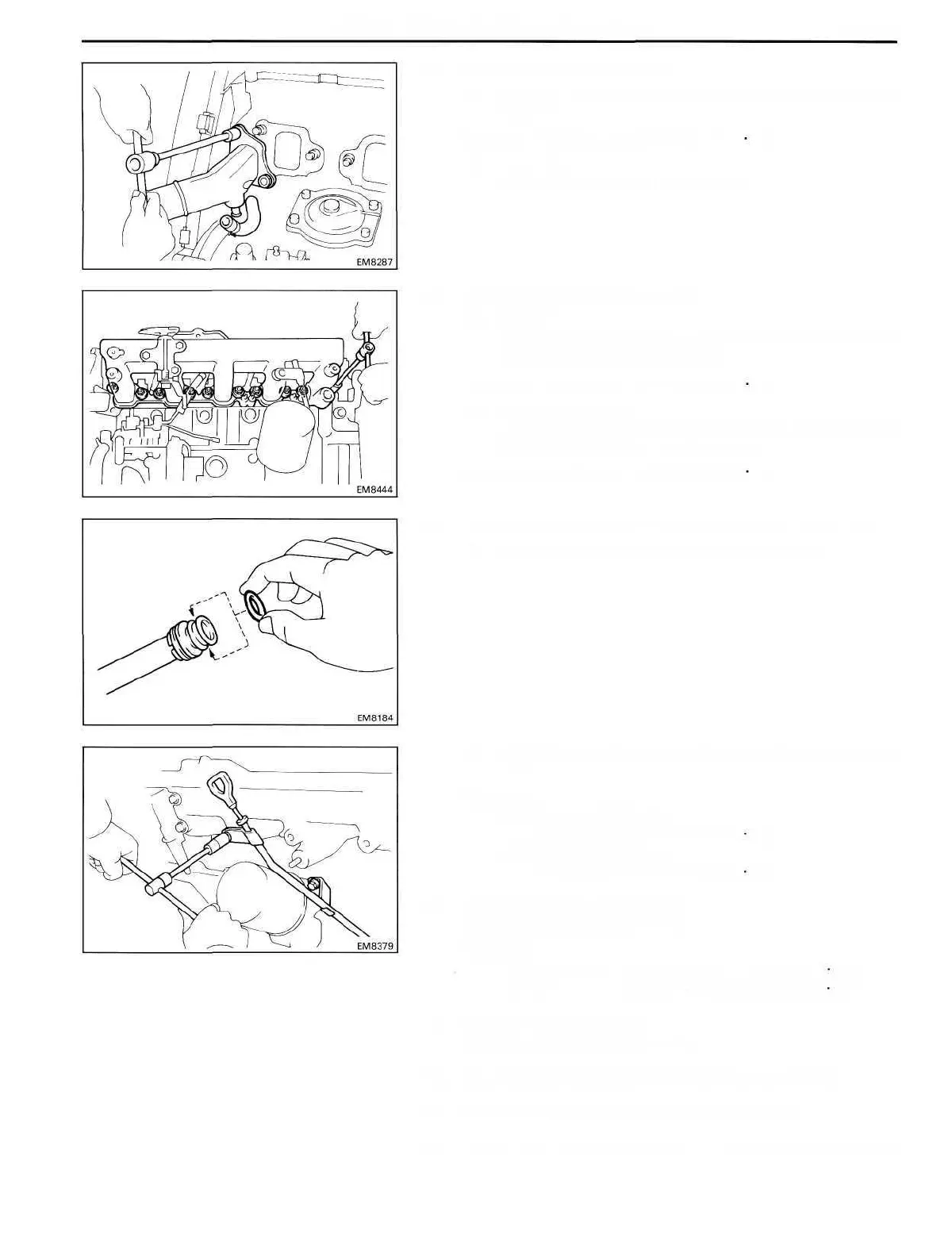

14. INSTALL WATER OUTLET
(a) Install a new gasket and water outlet with the two
nuts.
Torque: 200 kg-cm (14 ft-lb, 20 Nm)
(b) (1HD-T)
Connect the water by-pass hose.
15. INSTALL INTAKE MANIFOLD
(a) (1PZ)
Install five new gaskets and the intake manifold with
the ten bolts and seal washers.
Torque: 200 kg-cm (14 ft-lb, 20 Nm)
(b) (1 HZ and 1HD-T)
Install six new gaskets and the intake manifold with
the twelve bolts and seal washers.
Torque: 200 kg-cm (14 ft-lb, 20 Nm)
16. INSTALL OIL DIPSTICK GUIDE AND OIL DIPSTICK
(a) Install a new O-ring to the dipstick guide.
(b) Install the oil dipstick guide assembly with the two
bolts.
Torque:
Intake manifold side
200 kg-cm (14 ft-lb, 20 Nm)
Oil cooler cover side
200 kg-cm (14 ft-lb, 20 Nm)
17. INSTALL INJECTION PIPES
(See step 3 on page FU-15)
Torque:
IPZandiHZ 150 kg-cm (11 ft-lb, 15 Nm)
1HD-T 250 kg-cm (18 ft-lb, 25 Nm)
18. INSTALL INTAKE PIPE
(See step 2 on page EM-38)
19. FILL WIT ENGINE COOLANT (See page CO-5)
20. START ENGINE AND CHECK FOR LEAKS
21. RECHECK ENGINE COOLANT LEVEL AND OIL LEVEL
