Toyota 1HZ Repair Manual

FU-60 FUEL SYSTEM - Injection Pump

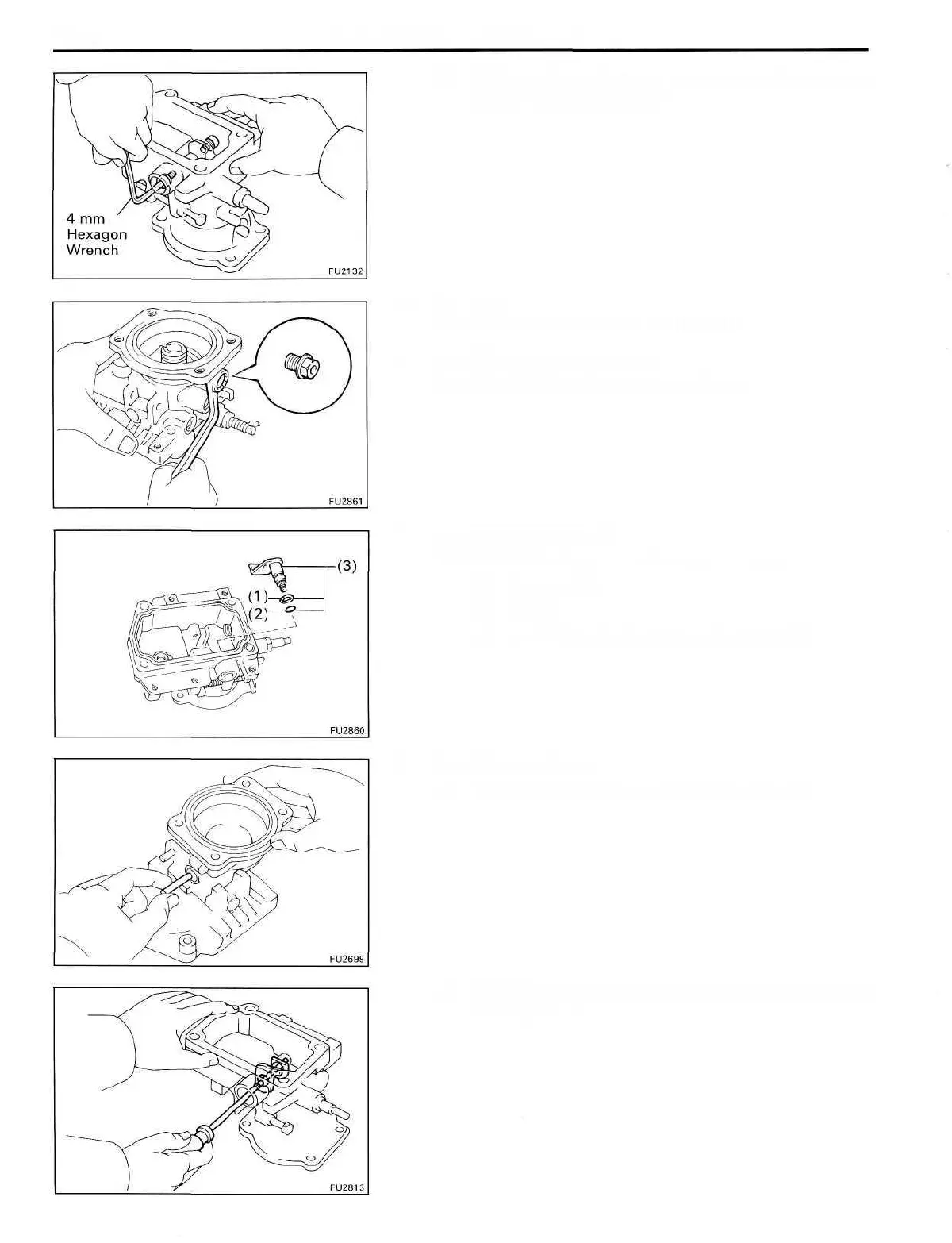

(c) Using a 4 mm hexagon wrench, install two new
gaskets and the two bolts.
23. (1HD-T)
ASSEMBLE BOOST COMPENSATOR
A. Install No.2 overflow screw
Install the No.2 overflow screw and cover.
B. Install No.2 PCS lever
Install the following parts to the governor cover:
(1) Plate washer
(2) O-ring
(3) No.2 lever, O-ring and washer assembly
C. Install control lever
(a) Insert the connecting pin into governor cover.
(b) Using a small screwdriver, install the control lever with
the support pin.
