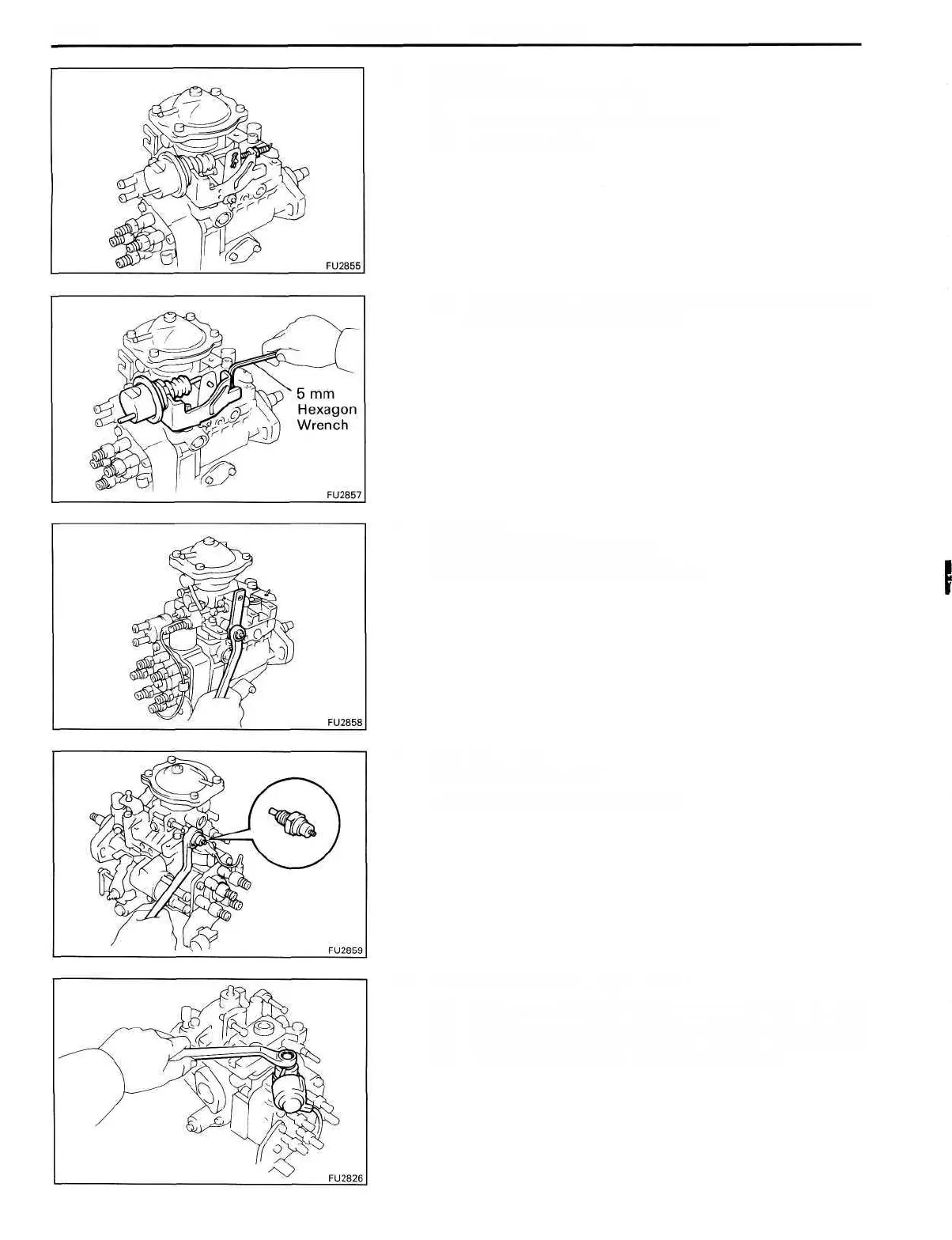

FU-34 FUEL SYSTEM - Injection Pump
7. (w/ PCS)
REMOVE PCS ACTUATOR
(a) Remove the PCS adjusting screw.
(b) Remove the clip.
(c) Using a 5 mm hexagon wrench, remove the two bolts
and PCS actuator assembly.
8. (w/ PCS)
REMOVE NO.1 PCS LEVER
Remove the nut and No.1 PCS lever.
9. (w/ Dash Pot)
REMOVE DASH POT
Remove the dash pot and gasket.
10. REMOVE FUEL CUT SOLENOID
(a) Disconnect the lead wire connector from the bracket.
(b) Disconnect the dust cover from the fuel cut solenoid.
(c) Remove the nut, lead wire and dust cover.
