Toyota 1HZ Repair Manual

TURBOCHARGER SYSTEM Turbocharger TC-11

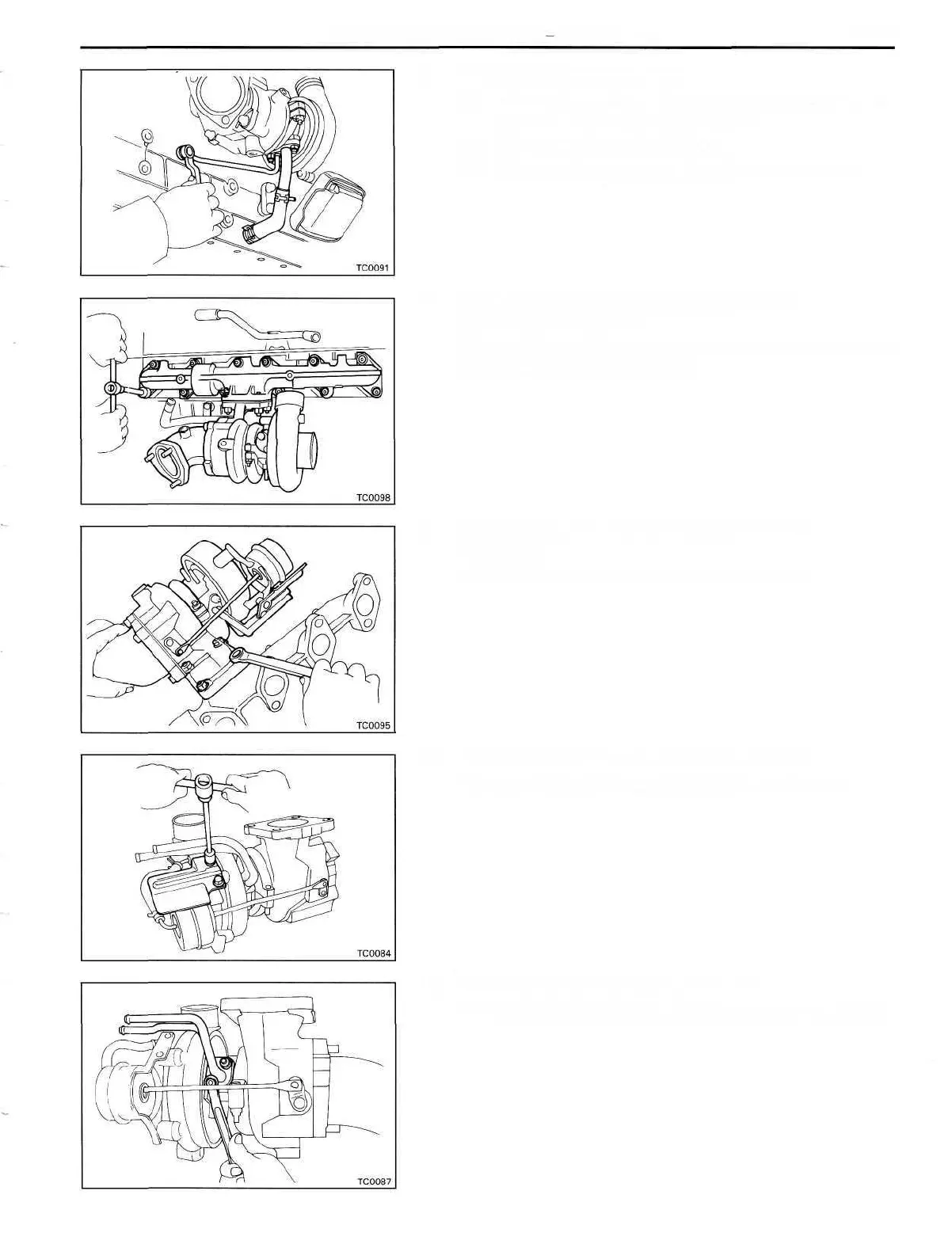

7. REMOVE TURBO OIL PIPE
(a) Remove the union bolt and two gaskets holding the
turbo oil pipe to the cylinder block.
(b) Disconnect the turbo oil hose.
(c) Remove the two nuts, turbo oil pipe and gasket.
8. REMOVE TURBOCHARGER AND EXHAUST
MANIFOLD ASSEMBLY
Remove the twelve nuts, the turbocharger and exhaust
manifold assembly and gaskets.
9. SEPARATE TURBOCHARGER AND EXHAUST
MANIFOLD
Remove the four nuts, turbocharger and gasket.
10. REMOVE NO.2 TURBO HEAT INSULATOR
Remove the two bolts and No.2 turbo heat insulator.
11. REMOVE NO.1 TURBO WATER PIPE
Remove the two nuts, No.1 turbo water pipe and gasket.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
