LU-18 LUBRICATION SYSTEM - Oil Cooler, Relief Valve and Check Valve

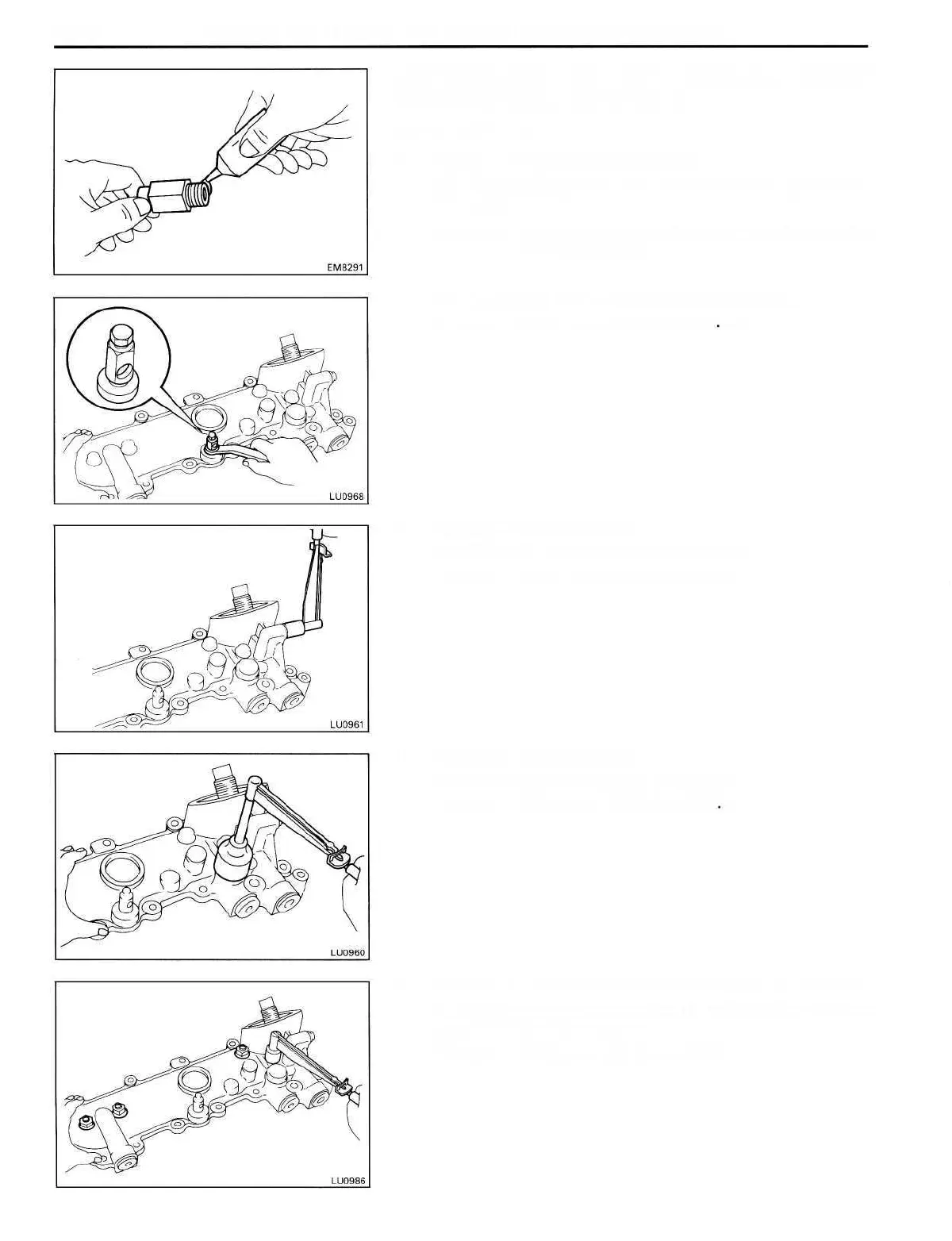

INSTALLATION OF OIL COOLER, RELIEF

VALVE AND CHECK VALVE

(See page LU-15)

1. INSTALL ENGINE DRAIN COCK

(a) Apply adhesive to two or three threads of the drain

cock.

Adhesive: Part No. 08833-00070, THREE BOND 1324

or equivalent

(b) Install and torque the drain cock as shown.

Torque: 200 kg-cm (14 ft-lb, 20 Nm)

2. INSTALL CHECK VALVE

Install the check valve with a new gasket.

Torque: 275 kg-cm (20 ft-lb, 27 N-m)

3. INSTALL RELIEF VALVE

Install the relief valve with a new gasket.

Torque: 400 kg-cm (29 ft-lb, 39 Nm)

4. ASSEMBLE OIL COOLER AND OIL COOLER COVER

Install two new gaskets and the oil cooler to the oil cooler

cover with the four nuts.

Torque: 200 kg-cm (14 ft-lb, 20 N-m)
