FU-38 FUEL SYSTEM - Injection Pump
16. (1HD-T)

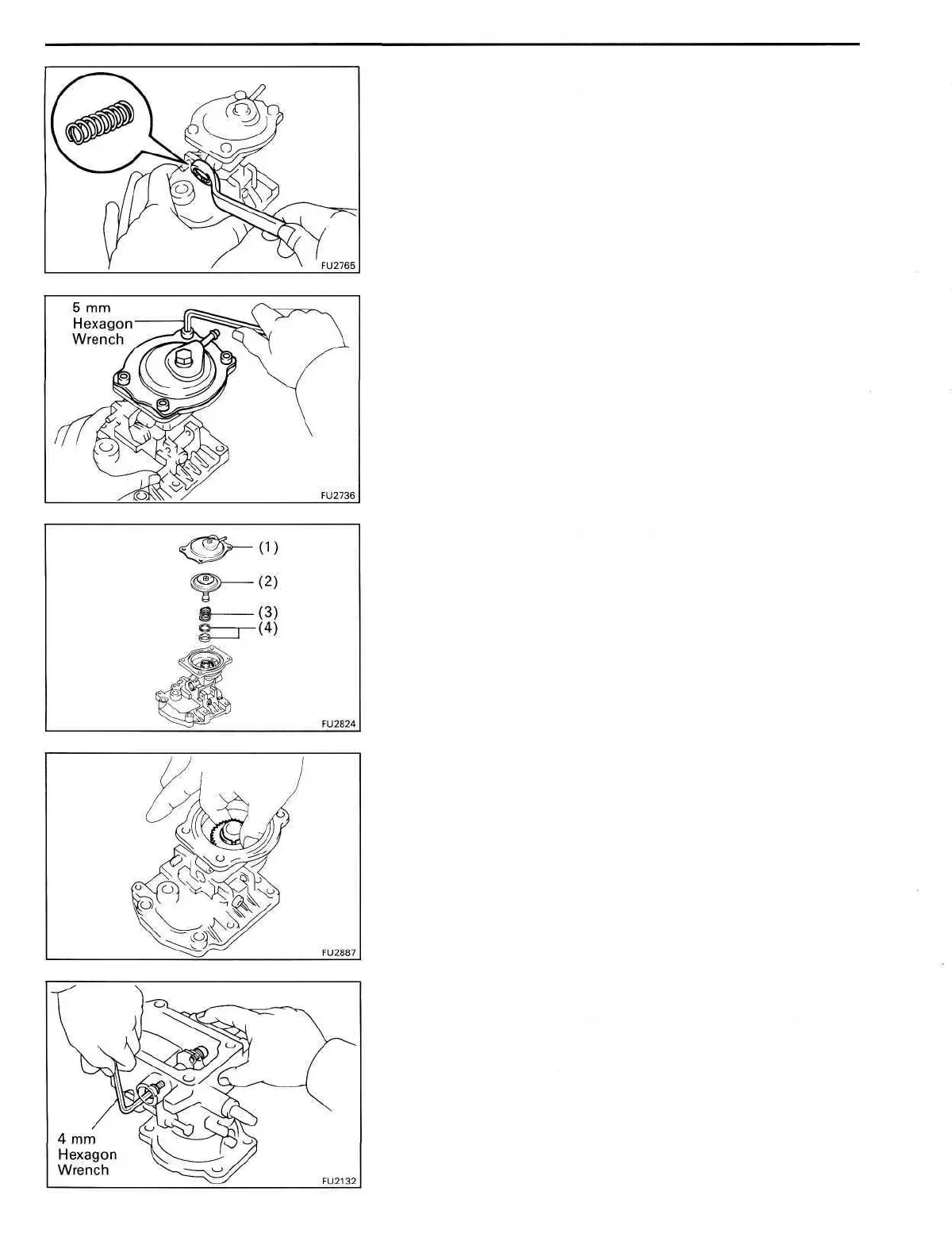

DISASSEMBLE BOOST COMPENSATOR
A. Remove lever control spring
Remove the bolt, gasket and lever control spring.
B. Remove boost compensator diaphragm
(a) Using a 5 mm hexagon wrench, remove the four bolts.
(b) Remove the following parts:
(1) Diaphragm cover
(2) Diaphragm
(3) Spring
(4) Boost compensator shim
C. Remove guide bushing
D. Remove control lever
(a) Using a 4 mm hexagon wrench, remove the two bolts
and gaskets.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
