Toyota 1HZ Repair Manual

EM-18
ENGINE MECHANICAL - Engine Tune-Up

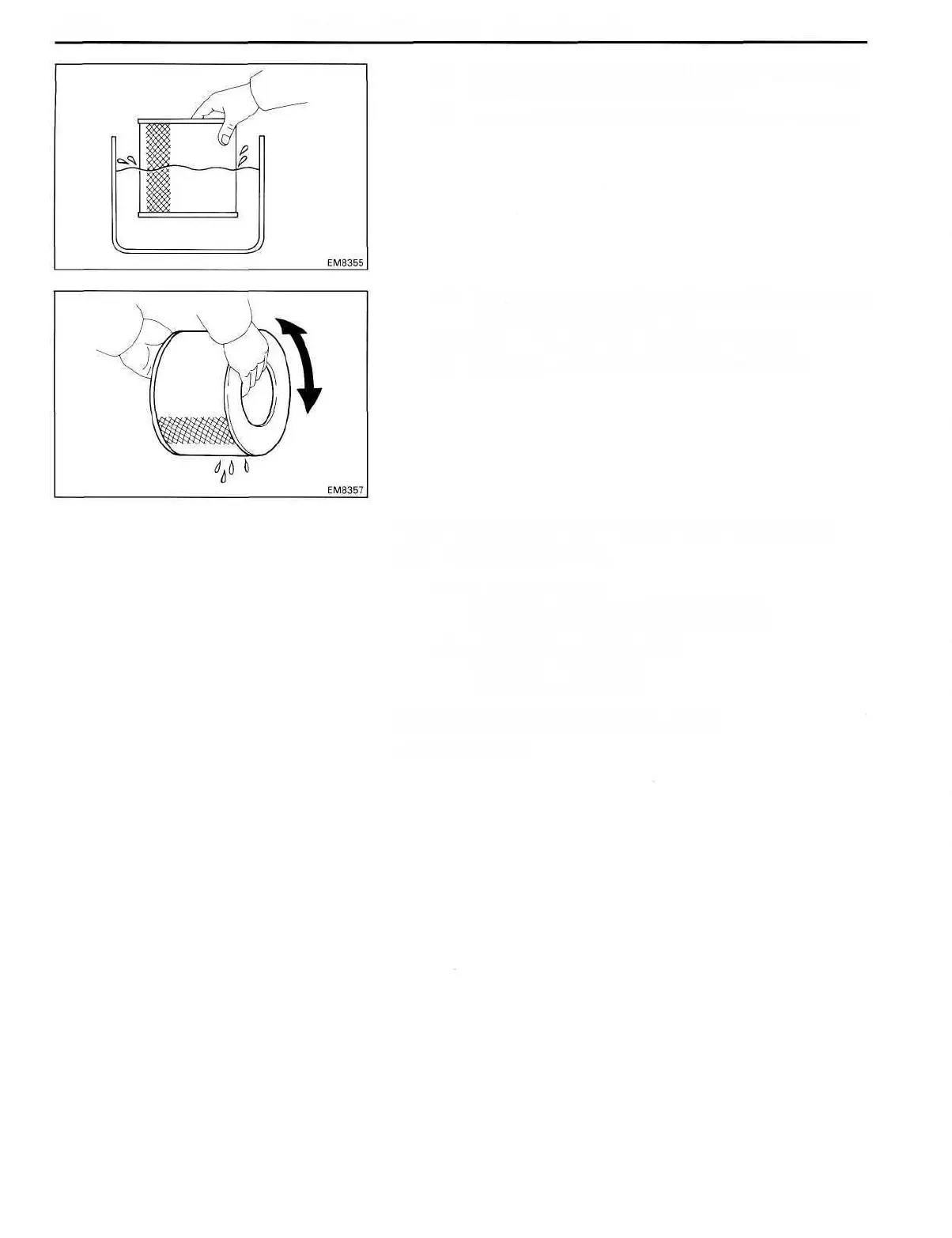

(b) Submerge the filter element in the water and agitate it
up and down more than ten times.
(c) Repeat rinsing in clean water unitil rinse water is clear.
(d) Remove excess water by shaking the filter element or
blowing with compressed air.
NOTICE: Do not beat or drop filter element.
(e) Wipe off dust on the air cleaner case interior.
INSPECTION OF ALTERNATOR DRIVE BELT
(See step 3 on page CH-5)
Drive belt deflection:
New belt 6-7 mm (0.24-0.28 in.)
Used belt 8-11 mm (0.31 -0.43 in.)
Drive belt tension (Reference):
New belt 45-55 kg
Used belt 20-35 kg
INSPECTION OF GLOW PLUGS
(See page ST-7)

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
