Toyota 1HZ Repair Manual

FU-50 FUEL SYSTEM - Injection Pump

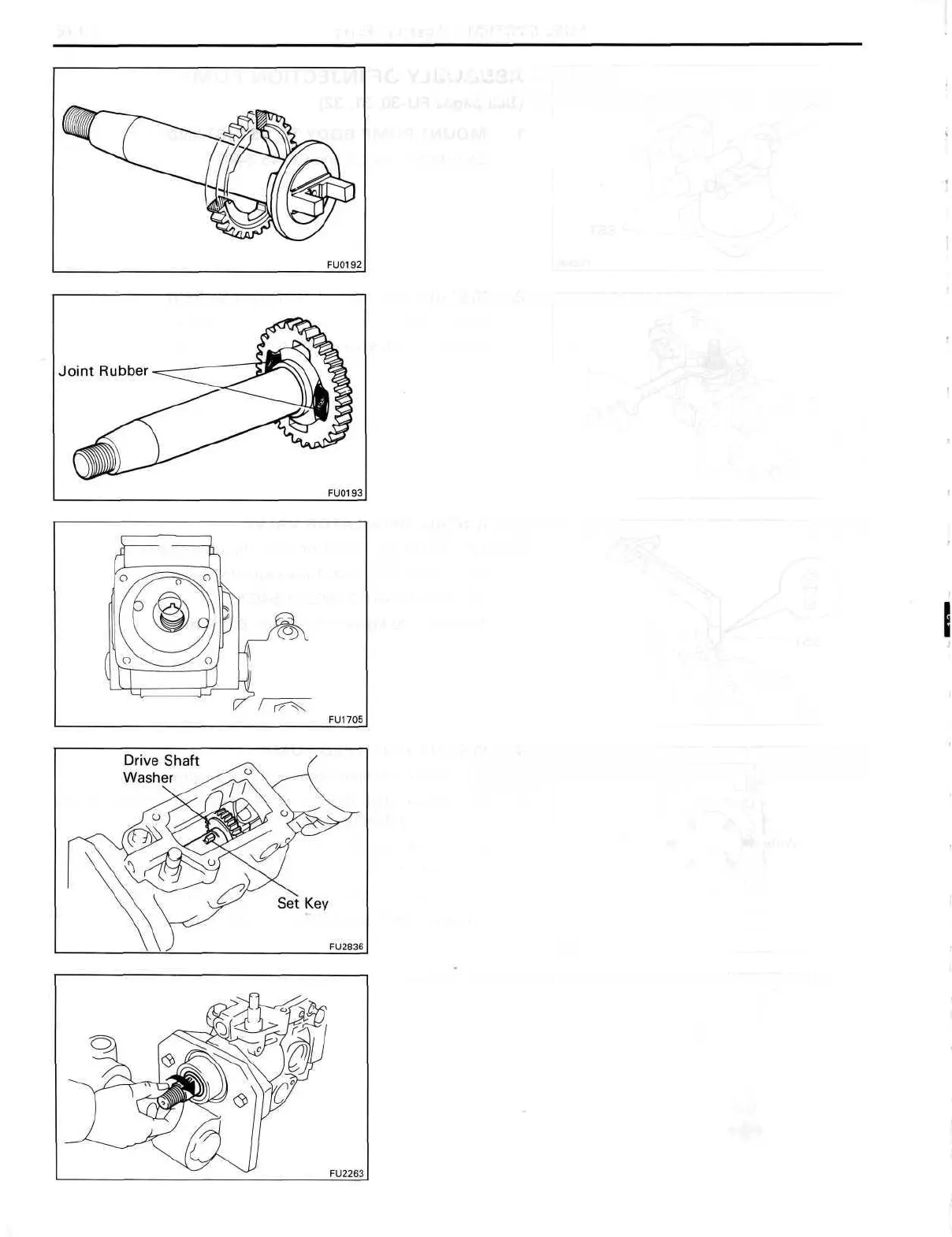

5. INSTALL DRIVE SHAFT
(a) Install the drive gear on the drive shaft as shown.
(b) Install two new joint rubbers into the drive gear.
(c) Position the key groove of the feed pump rotor
upward.
(d) Install the set key and drive shaft washer on the drive
shaft and insert the drive shaft assembly into the pump
housing.
(e) Check that the drive shaft turns without catching.
