LUBRICATION SYSTEM - Oil Pump LU-13

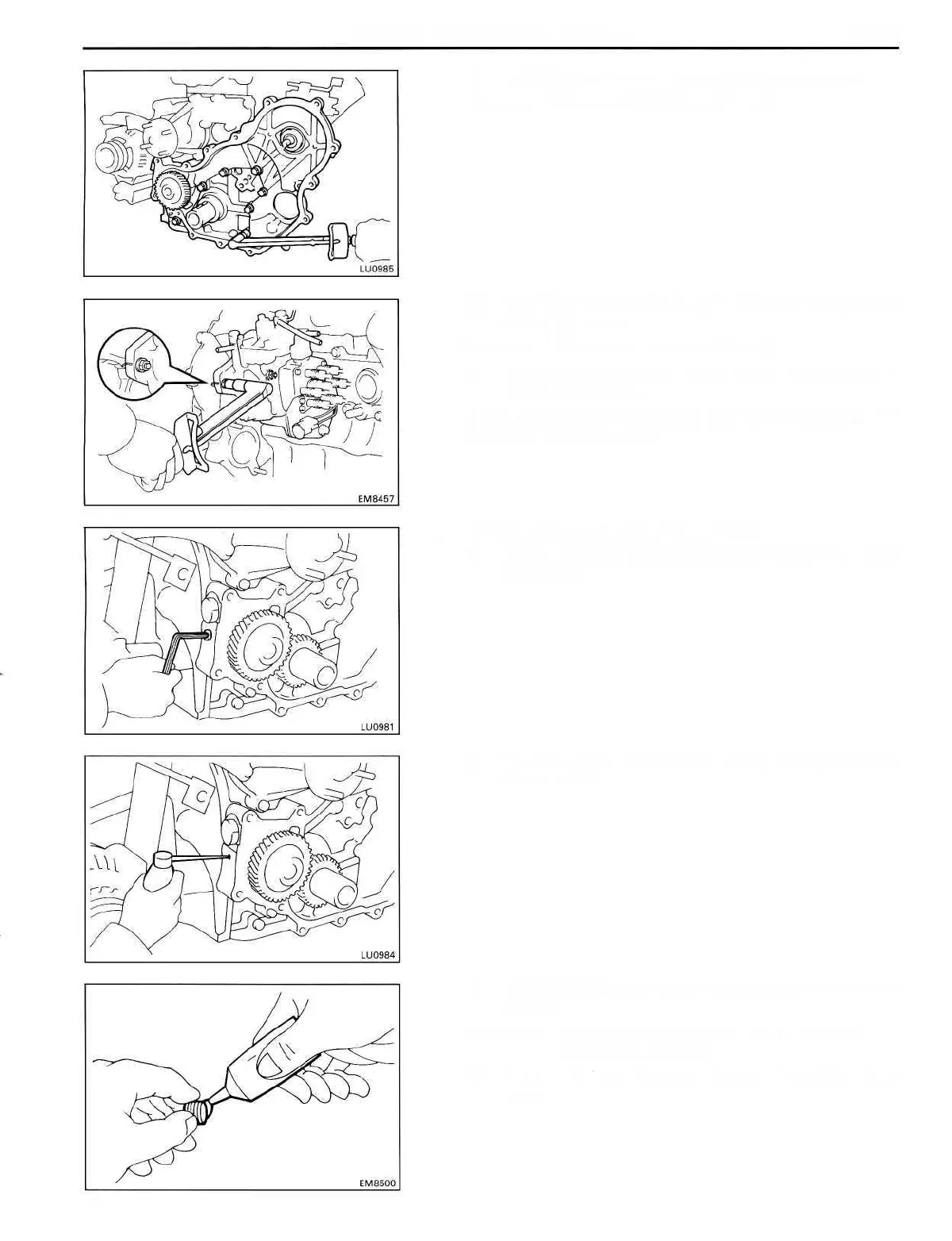

(d) Install the timing gear case with the seven bolts.
Torque: 200 kg-cm (14 ft-lb, 20 N-m)
(e) Install the two nuts holding the injection pump to the
timing gear case.
Torque: 185 kg-cm (13 ft-lb, 18 N-m)
(f) Check that the injection pump period lines (or match-
marks) are aligned.
If not correct, align the period lines (or matchmarks) by
tilting the injection pump.
2. POUR ENGINE OIL INTO OIL PUMP
(a) Using a 5 mm hexagon wrench, remove the taper
screw plug.
(b) Pour in approx. 10 cc (0.061 cu in.) of engine oil into
the oil pump.
(c) Apply adheshive to two or three threads of the taper
screw.
Adhesive: Part No. 08833-00070, THREE BOND
1324 or equivalent
(d) Using a 5 mm hexagon wrench, install the taper
screw.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
