Toyota 1HZ Repair Manual

EM-40
ENGINE MECHANICAL - Timing Belt

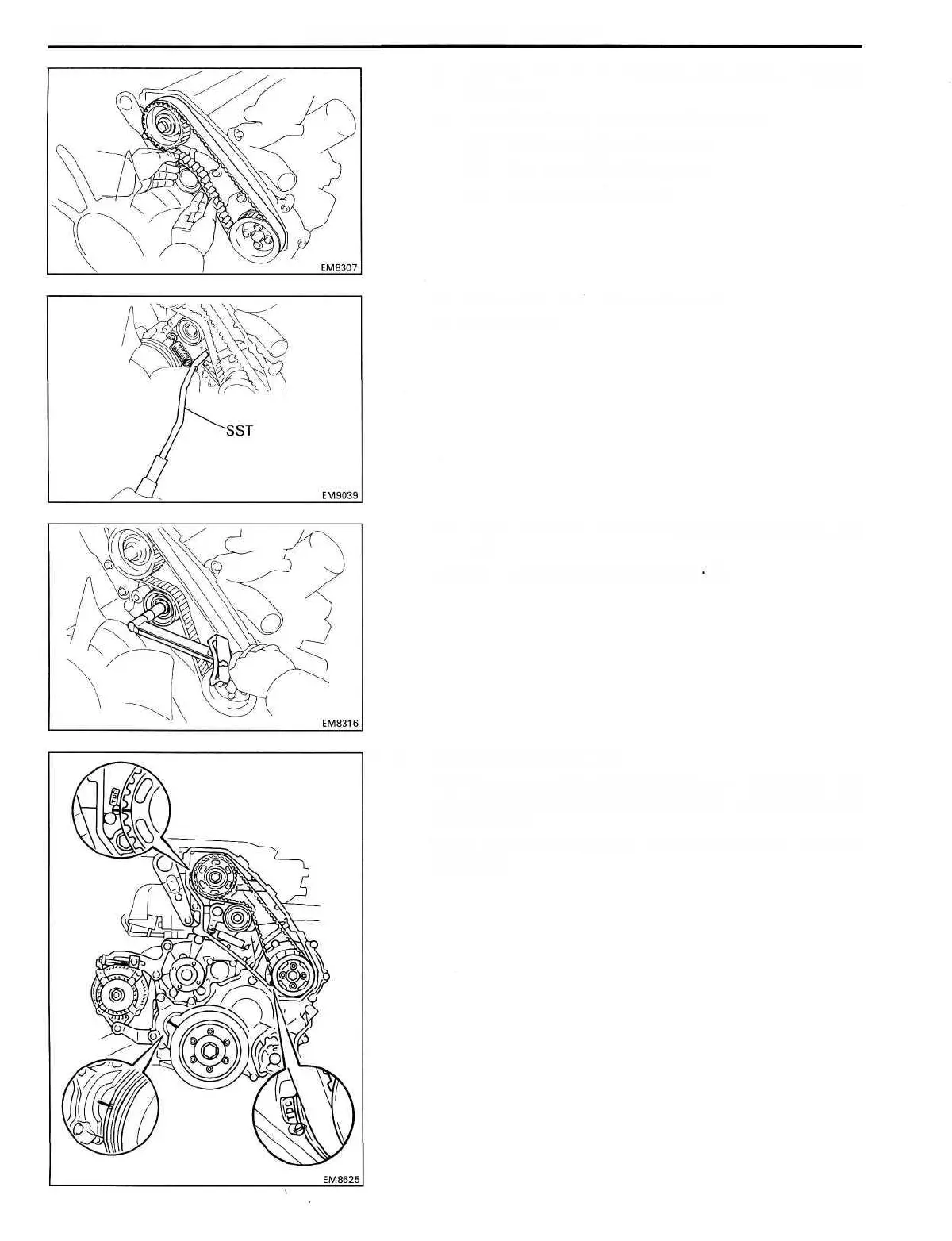

(a) Remove any oil or water on each pulley, and keep
them clean.
(b) Install the timing belt in following order:
(1) No.2 camshaft timing pulley
(2) No.1 camshaft timing pulley
(3) Timing belt idler pulley
(c) Using SST, install the tension spring.
SST 09718-20010
(d) Install and torque the spring bolt of the timing belt
idler.
Torque: 270 kg-cm (20 ft-lb, 26 Nm)
8. CHECK VALVE TIMING
Turn the crankshaft pulley clockwise and check that each
pulley align with the timing marks (TDC mark) as shown in
the illustration.
If the marks do not align, remove the timing belt and
reinstall it.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
